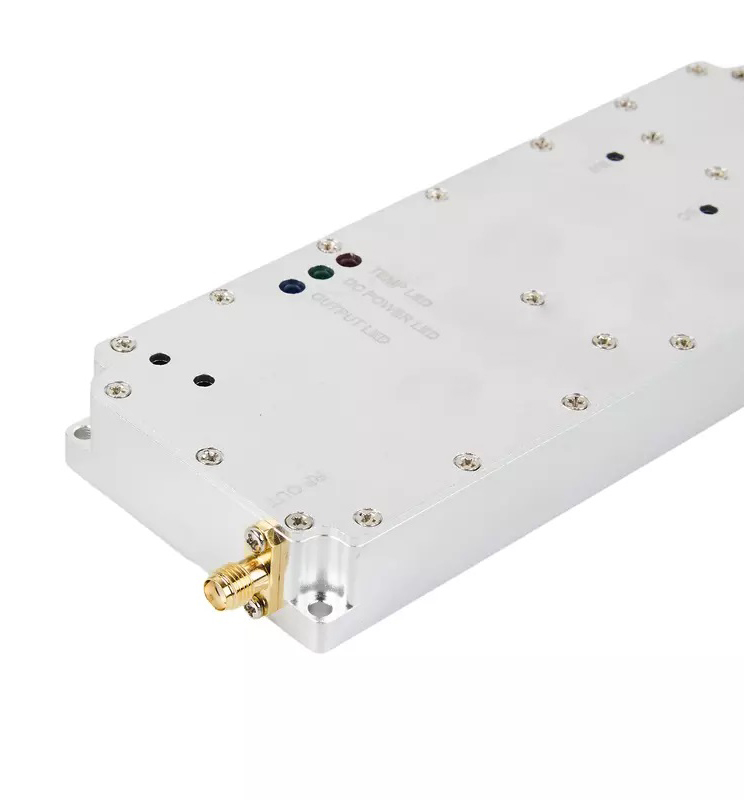

50W GaN Drone Jamming Module 840–1000MHz | Customizable Counter-UAV RF Interference Module

Product Overview The 50W GaN Drone Jamming Module (840–1000MHz) is a high-performance RF interference module designed for modern counter-UAV and anti-drone defense systems.Based on Class AB Gallium Nitride (GaN) on SiC technology, this module delivers high output power, excellent thermal performance, and instantaneous wideband coverage in a compact and lig……

Send Inquiry

50W

Functional characteristics

Product Overview

The 50W GaN Drone Jamming Module (840–1000MHz) is a high-performance RF interference module designed for modern counter-UAV and anti-drone defense systems.
Based on Class AB Gallium Nitride (GaN) on SiC technology, this module delivers high output power, excellent thermal performance, and instantaneous wideband coverage in a compact and lightweight form factor.

It is suitable for integration into fixed, vehicle-mounted, portable, or customized anti-drone platforms, effectively disrupting UAV control, telemetry, and data links within the 840–1000MHz band.

Key Features

50W High-Power Output (47±1 dBm)
Wideband Coverage: 840–1000MHz
Class AB GaN-on-SiC Design
Instantaneous Wideband Operation
Built-in High-Speed Noise Modulation Signal Source
50 Ohm Input / Output Impedance
Compact Size & Lightweight Design
High Reliability and Rugged Construction
Supports Custom RF Configurations

Advanced GaN Technology

This module utilizes Gallium Nitride on Silicon Carbide (GaN-on-SiC) technology, mounted on a copper-based heat spreader to ensure superior heat dissipation and long-term stability under continuous high-power operation.
The design ensures consistent performance in demanding operational environments.

Technical Specifications

No.	Specification	Typical Value	Notes
1	Operating Frequency	840–1000MHz	Customizable
2	Output Power	47 ±1 dBm	50W
3	Operating Voltage	28V	DC 24–28V
4	Operating Current	≤3.2–4.5A	@50W Output
5	Scan Speed (Analog)	270 kHz	Customizable 100–500 kHz
6	Input Signal Source	Built-in High-Speed Noise Source	VCO / DDS / SDR Optional
7	Input/Output Impedance	50 Ohm	—
8	Operating Temperature	-20°C to +65°C	Normal Operation
9	RF Connector	SMA Female	—
10	LED Indicators	Power / Over-Voltage / Over-Temperature	—
11	Dimensions	117 × 58 × 18 mm	Customizable
12	Weight	Approx. 300 g	—

Customization Options

To meet diverse mission and system integration requirements, the module supports extensive customization, including:

Frequency band adjustment
Scan speed configuration
Signal source selection (Noise / VCO / DDS / SDR)
Mechanical size and interface customization

Application Scenarios

Counter-UAV and anti-drone defense systems
Fixed-site drone protection
Vehicle-mounted jamming platforms
Portable and backpack anti-drone devices
Integrated multi-band drone jamming solutions

Why Choose This GaN Drone Jamming Module?

With its high power density, wideband performance, and flexible customization, this 50W GaN RF jamming module is an ideal core component for next-generation drone countermeasure systems, offering reliability, efficiency, and scalability.
