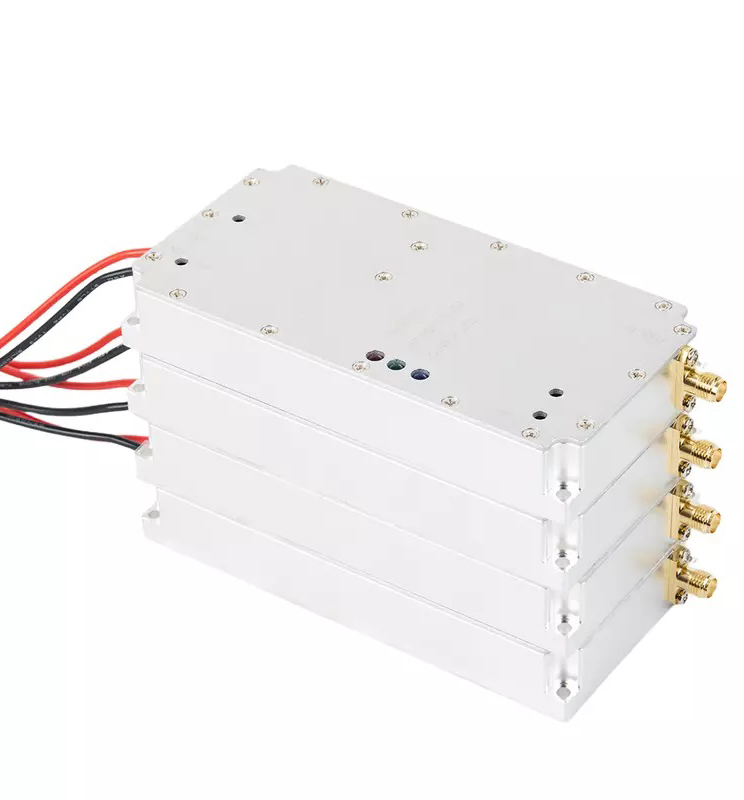

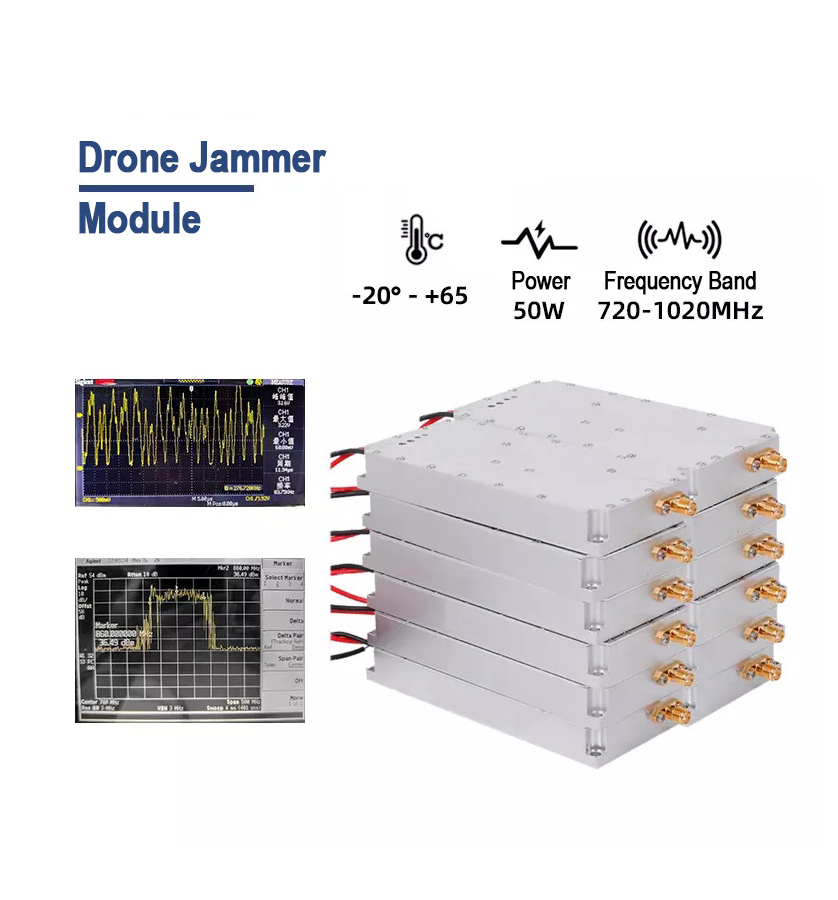

50W Anti-Drone Jamming Module 720–1020MHz | LoRa / LDMOS RF Interference Module

50W Anti-Drone Jamming Module (720–1020MHz) Product Overview The 50W Anti-Drone Jamming Module (720–1020MHz) is a compact and efficient RF interference solution designed to counter UAV communication links operating in sub-GHz and LoRa-related frequency bands. Utilizing LoRa/LDMOS technology, this module delivers stable output power and wideband jamming cap……

Send Inquiry

50W

Functional characteristics

50W Anti-Drone Jamming Module (720–1020MHz)

Product Overview

The 50W Anti-Drone Jamming Module (720–1020MHz) is a compact and efficient RF interference solution designed to counter UAV communication links operating in sub-GHz and LoRa-related frequency bands. Utilizing LoRa/LDMOS technology, this module delivers stable output power and wideband jamming capability, making it ideal for anti-drone systems, electronic countermeasures, and security protection platforms.

With its lightweight structure, integrated high-speed noise source, and flexible customization options, the module is well suited for portable, vehicle-mounted, and fixed-site counter-UAV applications.

Key Features

50W Output Power (47±1 dBm) for effective drone signal suppression
Wideband Coverage from 720 to 1020MHz, targeting LoRa and sub-GHz UAV links
LoRa / LDMOS RF Design with high stability and reliability
Instantaneous Wideband Jamming Capability
Built-in High-Speed Noise Modulation Signal Source
50Ω Input/Output Impedance for seamless system integration
Compact Size and Lightweight Design for flexible deployment
LED Status Indicators for power, over-voltage, and over-temperature protection
Customization Supported for signal source, scan speed, and form factor

Technical Specifications

Parameter	Specification	Remarks
Operating Frequency	720–1020MHz	Customizable
Output Power	50W (47±1 dBm)	Rated
Operating Voltage	28V	Range: 24–28V
Operating Current	≤3.2–4.5A	@50W output
Scan / Modulation Speed	270kHz	Customizable: 100–500kHz
Signal Source	Built-in high-speed noise modulation	Optional: VCO / DDS / SDR
Impedance	50 Ohm	Input / Output
Operating Temperature	-20℃ to +65℃	Normal operation
RF Connector	SMA Female
Indicators	LED indicators	Power, Over-voltage, Over-temperature
Dimensions	117 × 58 × 18 mm	Or customized
Weight	300 g

LoRa / LDMOS Technology Advantage

This jamming module adopts LDMOS RF power amplifier technology, optimized for sub-GHz wideband interference and LoRa-based drone communication disruption. The design ensures stable power output, efficient thermal performance, and long-term operational reliability, even during continuous jamming tasks.

Application Scenarios

Anti-drone and UAV countermeasure systems
LoRa-based drone communication interference
Portable and backpack drone jammer systems
Vehicle-mounted or fixed-site security platforms
Electronic warfare and RF suppression solutions

Customization Options

To meet diverse mission and integration requirements, the 50W anti-drone jamming module supports extensive customization, including:

Alternative signal sources (VCO, DDS, SDR)
Adjustable scanning bandwidth and speed
Frequency range optimization
Mechanical size and connector customization
OEM and system-level integration support

Why Choose This 50W Anti-Drone Jamming Module?

Combining wide frequency coverage, compact form factor, and reliable LDMOS performance, this module provides an efficient and scalable RF countermeasure solution for modern anti-drone defense systems. Its flexibility makes it suitable for both OEM integration and complete counter-UAV platforms.
