50W Drone Countermeasure Module | 500-600MHz LoRa/LDMOS Signal Jammer

50W High-Power Drone Countermeasure Module (500-600MHz) The 50W Anti-Drone Signal Shielding Module is a professional-grade RF power component engineered for modern electronic warfare and UAV defense systems. Utilizing advanced LDMOS technology, this module provides a consistent 47dBm output across the 500-600MHz spectrum, effectively neutralizing LoRa-base……

Send Inquiry

50W

Functional characteristics

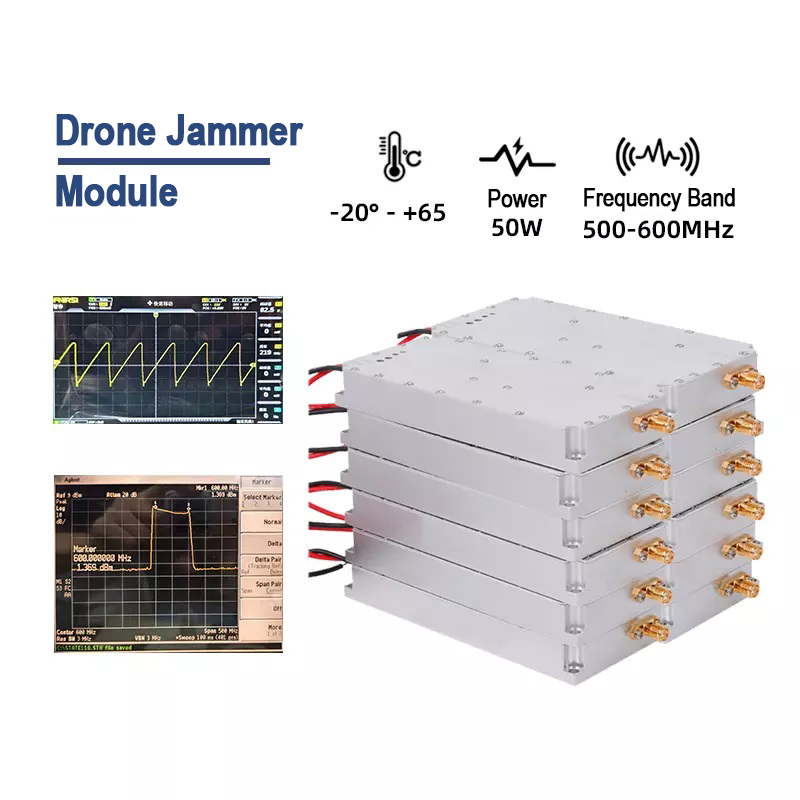

50W High-Power Drone Countermeasure Module (500-600MHz)

The 50W Anti-Drone Signal Shielding Module is a professional-grade RF power component engineered for modern electronic warfare and UAV defense systems. Utilizing advanced LDMOS technology, this module provides a consistent 47dBm output across the 500-600MHz spectrum, effectively neutralizing LoRa-based controls and specialized radio links.

Equipped with an integrated high-speed noise modulation source, it offers superior interference efficiency against frequency-hopping threats. Its compact form factor and high thermal stability make it the ideal core component for portable jammer guns and stationary defense arrays.

Key Technical Advantages

High Efficiency LDMOS: Delivers a stable 50W output with optimized power consumption and heat dissipation.
Built-in Signal Source: Features a high-speed noise modulation source (270KHz) to effectively “drown out” target signals.
Highly Customizable: Supports frequency adjustments and alternative signal sources including VCO, DDS, and SDR.
Comprehensive Protection: Integrated LED indicators for power status, over-voltage, and over-temperature alerts.

Technical Specifications

Parameter	Specification Details	Remarks
Frequency Range	500 – 600 MHz	Customizable range available
Output Power	47 ± 1 dBm (50W)	High-gain stability
Operating Voltage	28V (Range: 24V – 28V)	Industrial standard DC input
Operating Current	≤ 3.2 – 4.5 A	High efficiency LDMOS
Analog Scan Speed	270 KHz	Customizable 100 – 500 KHz
Signal Source	Built-in High-speed Noise Modulation	Custom VCO / DDS / SDR supported
Operating Temp	-20°C to +65°C	Reliable in extreme environments
Interface	SMA-Female	Standard RF connector
Safety Features	Over-voltage & Over-temperature protection	LED Status Indicators
Dimensions	117 * 58 * 18 mm	Customizable size available
Weight	~300g	Lightweight for portable use

Applications & Integration

This module is designed for seamless integration into various RF defense architectures:

Anti-Drone Systems: Specifically targets LoRa and lower-frequency control links used by custom-built or specialized UAVs.
Signal Shielding: Suitable for high-security areas requiring specific frequency isolation.
RF Prototyping: A robust power amplifier stage for laboratory-grade interference testing.

Engineer’s Note: The module’s 270KHz scanning speed ensures maximum coverage across the designated bandwidth, preventing signal “gaps” that agile drones might exploit.

Customization Options

We understand that electronic countermeasure requirements vary by region and target. We offer full OEM/ODM services for this module:

Frequency Tailoring: Adjust the 500-600MHz band to your specific needs.
Digital Source Integration: Upgrade from noise modulation to DDS (Direct Digital Synthesis) or SDR (Software Defined Radio) for precise waveform control.
Form Factor: Modification of the aluminum housing to fit specific handheld jammer chassis.
