50W 5150–5250MHz Drone Jammer Module Q1: What is this 5150–5250MHz drone jammer module? This is a 50W drone jammer module designed for counter-UAV systems operating in the 5.1–5.25GHz frequency band. It effectively disrupts drone control and video transmission signals within this range, making it suitable for integration into portable or fixed anti-drone s……
This is a 50W drone jammer module designed for counter-UAV systems operating in the 5.1–5.25GHz frequency band. It effectively disrupts drone control and video transmission signals within this range, making it suitable for integration into portable or fixed anti-drone systems.
The module adopts LORA/LDMOS architecture and supports frequency and signal customization for different deployment needs.
The module operates in the 5150–5250MHz band, which is commonly used for drone video transmission and communication links. Customization options are available for specific sub-bands within this range.
Rated RF output: 50W
Typical output level: 47±1 dBm
This power level ensures stable and effective interference performance when integrated into a complete counter-drone system.
Yes. The module includes a built-in high-speed noise modulation signal source. It can also be customized with:
VCO (Voltage Controlled Oscillator)
DDS (Direct Digital Synthesis)
SDR (Software Defined Radio)
This flexibility allows system integrators to adapt the module to different countermeasure strategies.
The module is designed for stable DC input and efficient power consumption, making it suitable for vehicle-mounted or fixed installations.

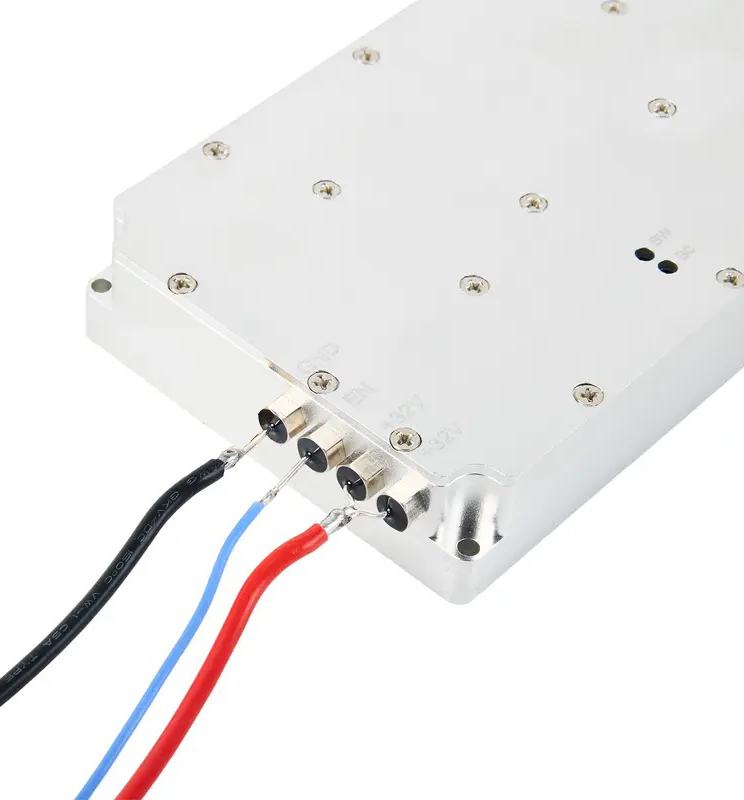

SMA female RF connector
LED indicators (Power, Over-voltage, Over-temperature)
Power switch
Built-in protection against over-voltage and overheating
These features improve operational safety and simplify system integration.
| Item | Specification | Remarks |
|---|---|---|
| Frequency Range | 5150–5250MHz | Customizable |
| Output Power | 50W | 47±1 dBm |
| Working Voltage | 28V DC | 24–28V |
| Working Current | ≤3.2–4.5A | At 50W output |
| Scan Speed | 270KHz | Customizable 100–500KHz |
| Signal Source | Built-in high-speed noise modulation | VCO/DDS/SDR optional |
| Operating Temperature | -20°C to +65°C | Normal operation |
| RF Connector | SMA Female | — |
| Indicators | Power / Over-voltage / Over-temperature | LED |
| Dimensions | 117 × 58 × 18 mm | Custom size available |
| Weight | 300g | — |
This 50W 5150–5250MHz drone jammer module is suitable for:
Counter-UAV integration systems
Vehicle-mounted anti-drone platforms
Fixed-site security protection
Industrial and infrastructure security
It is designed for professional system integrators requiring stable performance, compact size, and flexible configuration.
If you need customized frequency ranges or higher output power options, this module can be adapted to meet specific project requirements.
