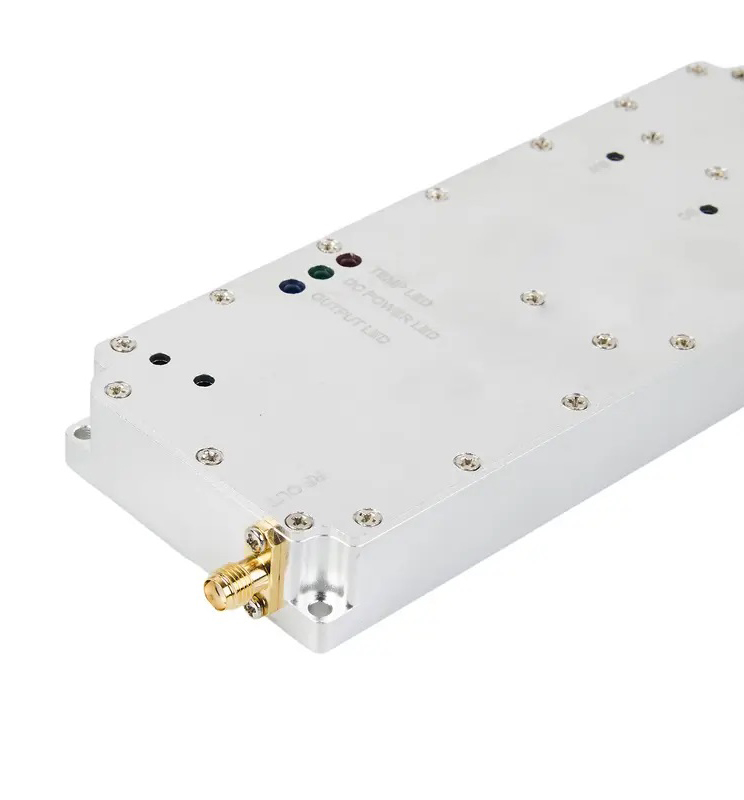

50W Drone Jammer Module | 1000-1300MHz Signal Blocking & LoRa Customizable

Powerful 50W Drone Jammer Module – 1000-1300MHz Signal Blocking with Custom LoRa Support Overview Our 50W Drone Jammer Module is a high-performance, compact solution designed to neutralize unauthorized UAV threats within the 1000-1300MHz frequency range. Engineered for reliability and adaptability, it is ideal for counter-drone systems, security operations……

Send Inquiry

50W

Functional characteristics

Powerful 50W Drone Jammer Module – 1000-1300MHz Signal Blocking with Custom LoRa Support

Overview

Our 50W Drone Jammer Module is a high-performance, compact solution designed to neutralize unauthorized UAV threats within the 1000-1300MHz frequency range. Engineered for reliability and adaptability, it is ideal for counter-drone systems, security operations, and signal protection in sensitive areas. With customizable LoRa and signal source options, this module offers tailored performance to meet diverse operational needs.

Key Features

High Output Power: 50W (47±1dBm) ensures effective disruption of drone video transmission and control signals.
Wide Frequency Coverage: Targets 1000-1300MHz bands, commonly used by commercial and custom drones.
Customizable LoRa Support: Adaptable for LoRa and other communication protocols to address specific threats.
Fast Signal Scanning: Default 270KHz analog scanning speed; customizable between 100–500KHz for precise targeting.
Flexible Signal Source: Built-in high-speed noise-modulated source; optional VCO, DDS, or SDR configurations.
Robust Design: Operates in temperatures from -20°C to +65°C, with protection against over-voltage and overheating.
Compact & Lightweight: Measures 117x58x18mm (customizable) and weighs only 300g for easy integration into portable or fixed systems.
User-Friendly Indicators: LED displays for power, over-voltage, and over-temperature status.

Technical Specifications

Parameter	Details
Operating Voltage	24–28V DC (28V nominal)
Operating Current	≤3.2–4.5A
Output Power	50W (47±1dBm)
Frequency Range	1000–1300MHz
Scanning Speed	270KHz (customizable: 100–500KHz)
Signal Source	Built-in noise modulator; optional VCO/DDS/SDR
Operating Temperature	-20°C to +65°C
Connector Type	SMA Female
Dimensions	117mm × 58mm × 18mm (customizable)
Weight	300g

Applications

Drone Defense Systems: Disable unauthorized UAVs in protected airspace.
Security & Military: Protect critical infrastructure, events, and secure facilities.
Signal Management: Block video transmission and remote control signals in restricted zones.
Custom Integration: Adaptable for OEM projects, handheld devices, or vehicle-mounted anti-drone solutions.

Why Choose Our Jammer Module?

High Power, High Efficiency: Delivers 50W output for reliable, long-range jamming.
Tailored Solutions: Customizable frequency, scanning speed, and signal sources (VCO/DDS/SDR) to match specific threats.
Durable & Adaptive: Built for harsh environments with comprehensive protection features.
Compact Form Factor: Lightweight and small for versatile deployment without sacrificing power.

Ordering & Customization

We provide standard and fully customized configurations to suit your requirements. Contact us to discuss modifications in frequency, power output, scanning patterns, or form factor.
