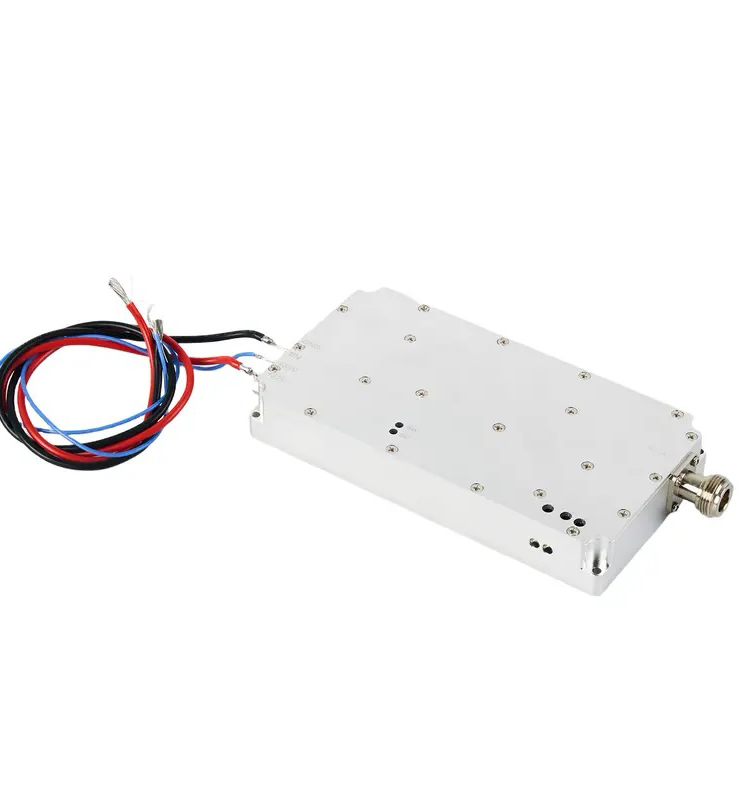

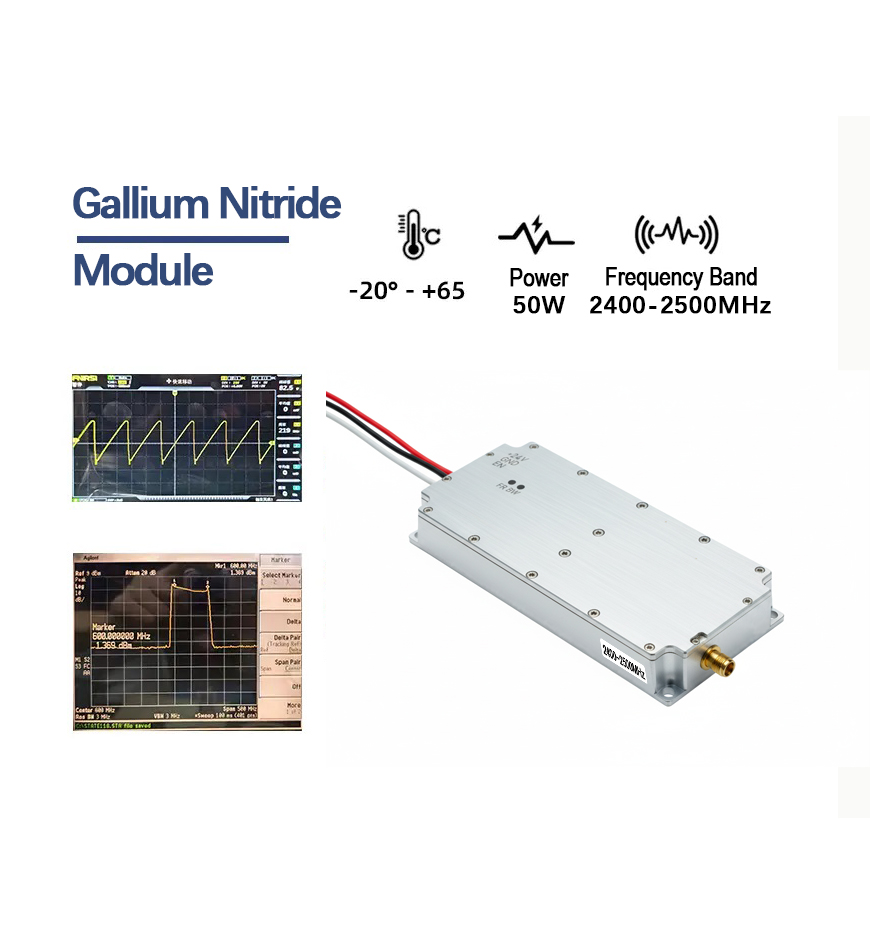

2400–2500MHz 50W GaN Drone Jammer Module | High-Performance Signal Shielding Module

Product Overview The 2400–2500MHz 50W GaN Drone Jammer Module is a high-performance signal shielding solution designed for UAV countermeasure applications. Based on GaN-on-SiC technology with copper-based heat dissipation, the module delivers stable, high-power 50W output while maintaining compact dimensions and lightweight. Designed using AB-class GaN……

Send Inquiry

50W

Functional characteristics

Product Overview

The 2400–2500MHz 50W GaN Drone Jammer Module is a high-performance signal shielding solution designed for UAV countermeasure applications.

Based on GaN-on-SiC technology with copper-based heat dissipation, the module delivers stable, high-power 50W output while maintaining compact dimensions and lightweight.
Designed using AB-class GaN amplifier topology, it achieves wide instantaneous bandwidth suitable for real-time drone signal suppression.
The module supports customization for scanning speed, input signal source type (VCO, DDS, SDR), and mechanical dimensions, making it ideal for OEM/ODM integration and field deployment.

With its high reliability and rugged design, the module operates efficiently in temperatures from -20°C to +65°C.

Key Features

Frequency Range: 2400–2500MHz
Output Power: 50W / 47±1 dBm
AB-Class GaN Amplifier Design for high efficiency
Wide Instantaneous Bandwidth for fast drone signal suppression
Compact & Lightweight: 117×58×18mm, 300g
Input/Output Impedance: 50Ω, SMA connectors
Integrated Noise Modulation Source (customizable VCO, DDS, SDR)
Operational Temperature Range: -20°C to +65°C
LED Indicators: Power, Overvoltage, Overtemperature

Technical Specifications

Parameter	Specification	Remarks
Model	2400–2500MHz GaN Drone Jammer Module	High-performance UAV jammer
Frequency Range	2400–2500 MHz	Customizable
Output Power	50W / 47±1 dBm	Stable RF output
Input/Output Impedance	50 Ω	SMA female connectors
Operating Voltage	28V	Range: 24–28V
Operating Current	≤3.2–4.5A	Dependent on load
Scanning Speed	270 KHz	Customizable 100–500 KHz
Input Signal Source	Built-in high-speed noise modulation	VCO / DDS / SDR optional
Operational Temperature	-20°C ~ +65°C	Normal working conditions
Dimensions	117×58×18mm	Customizable
Weight	300 g	Lightweight
Indicators	Power / Overvoltage / Overtemperature	LED indicators

Applications

FPV Drone Countermeasures
Commercial UAV Signal Suppression
Portable or Integrated Anti-Drone Systems
OEM/ODM UAV Jamming Products
Drone Testing & RF Research Applications

This compact GaN drone jammer module is ideal for engineers and system integrators who require high-efficiency, reliable, and customizable UAV countermeasure solutions.
