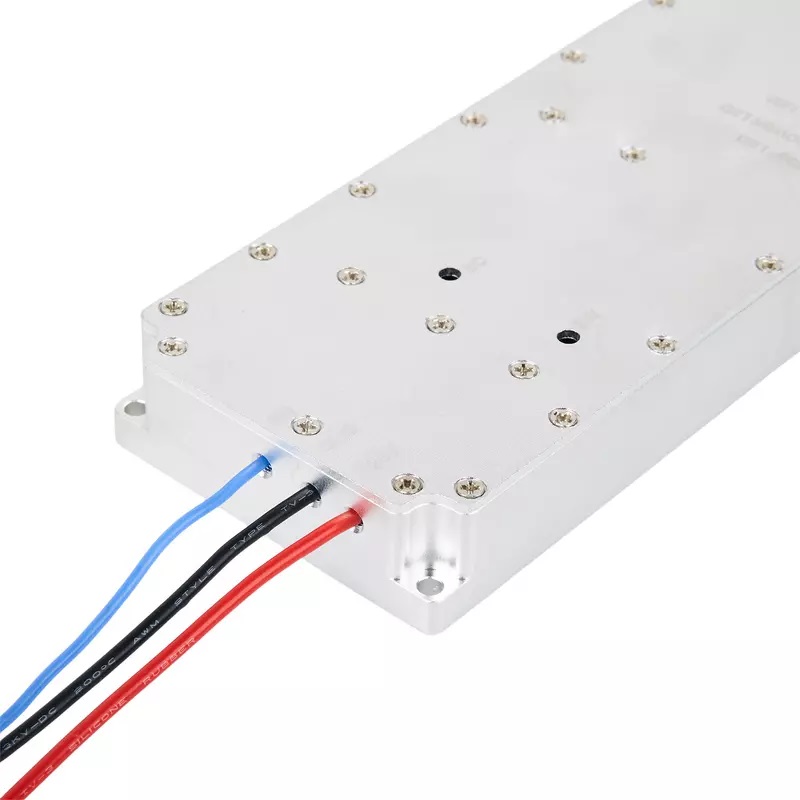

50W 5150–5250MHz GaN Drone Jammer Module | High-Power Counter-UAV RF Shielding Module

50W 5150–5250MHz GaN Drone Jammer Module The 50W 5150–5250MHz GaN drone jammer module is a compact RF interference module designed for modern counter-UAV systems. Built using GaN-on-SiC technology, it delivers high power efficiency, stable performance, and reliable heat dissipation. This module operates in the 5.1–5.25 GHz band, which is commonly used in ……

Send Inquiry

50W

Functional characteristics

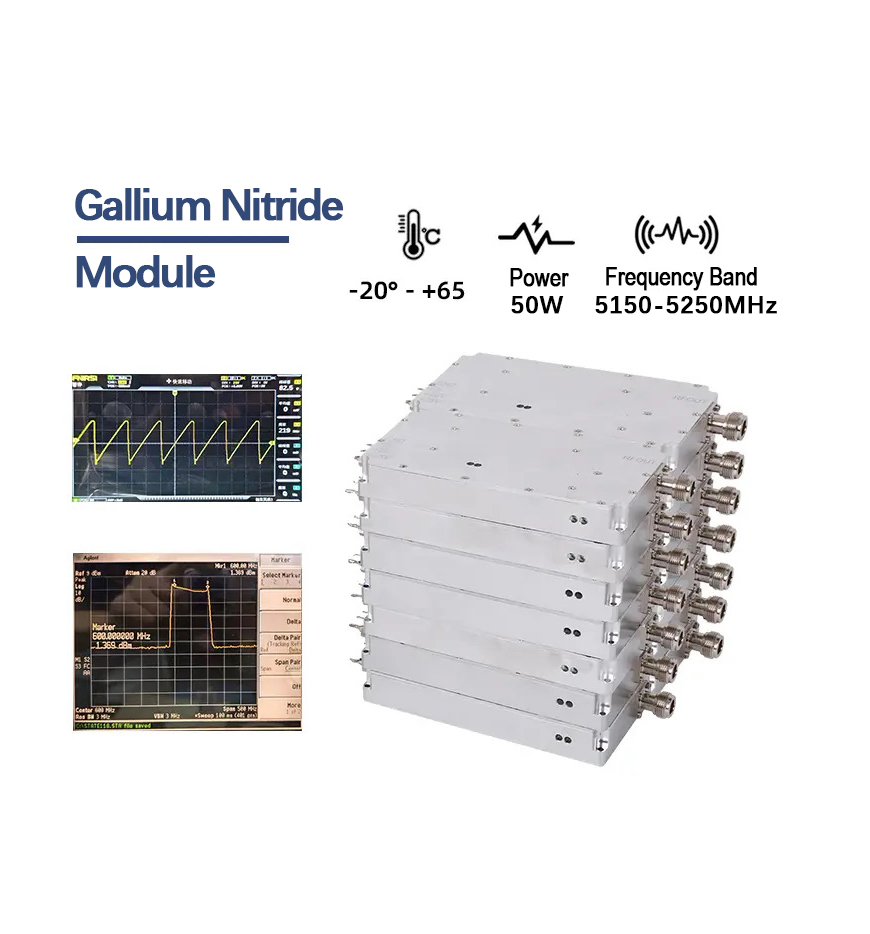

50W 5150–5250MHz GaN Drone Jammer Module

The 50W 5150–5250MHz GaN drone jammer module is a compact RF interference module designed for modern counter-UAV systems. Built using GaN-on-SiC technology, it delivers high power efficiency, stable performance, and reliable heat dissipation.

50W 5150–5250MHz GaN Drone Jammer Module

This module operates in the 5.1–5.25 GHz band, which is commonly used in drone communication and video transmission links. With its instant wideband capability and high output power, it can be integrated into various anti-drone platforms including portable, vehicle-mounted, or fixed installations.

Frequently Asked Questions

1. What is the main function of this drone jammer module?

This module is designed to generate RF interference within the 5150–5250MHz frequency band, which is often used by drone communication and video transmission systems. By transmitting high-power noise signals, the module can help disrupt the link between a drone and its ground controller.

2. What technology is used in this module?

The module uses GaN-on-SiC (Gallium Nitride on Silicon Carbide) technology, which offers several advantages:

Higher power density
Better heat resistance
Improved efficiency compared to traditional RF amplifiers

It also features a Class AB GaN amplifier design, balancing efficiency and signal stability.

3. Can the module be customized?

Yes. The module supports multiple customization options, including:

Frequency range adjustments within the band
Adjustable scan speed (100–500 KHz)
Optional signal source types such as VCO, DDS, or SDR

This flexibility allows it to meet different system integration requirements.

4. Is the module easy to integrate into anti-drone systems?

Yes. The module is designed for simple integration into larger counter-UAV platforms. Its compact size, SMA RF connector, and standard 50-ohm impedance make installation straightforward for engineers and system integrators.

Technical Specifications

Parameter	Specification	Notes
Frequency Range	5150–5250 MHz	Customizable
RF Output Power	47 ±1 dBm	50W
Operating Voltage	28V	24–28V
Operating Current	≤3.2–4.5A	At full output
Analog Scan Speed	270 KHz	Customizable 100–500 KHz
RF Impedance	50 Ohms	Standard
Signal Source	Built-in high-speed noise modulation	Optional VCO / DDS / SDR
Operating Temperature	-20°C to +65°C	Normal operation

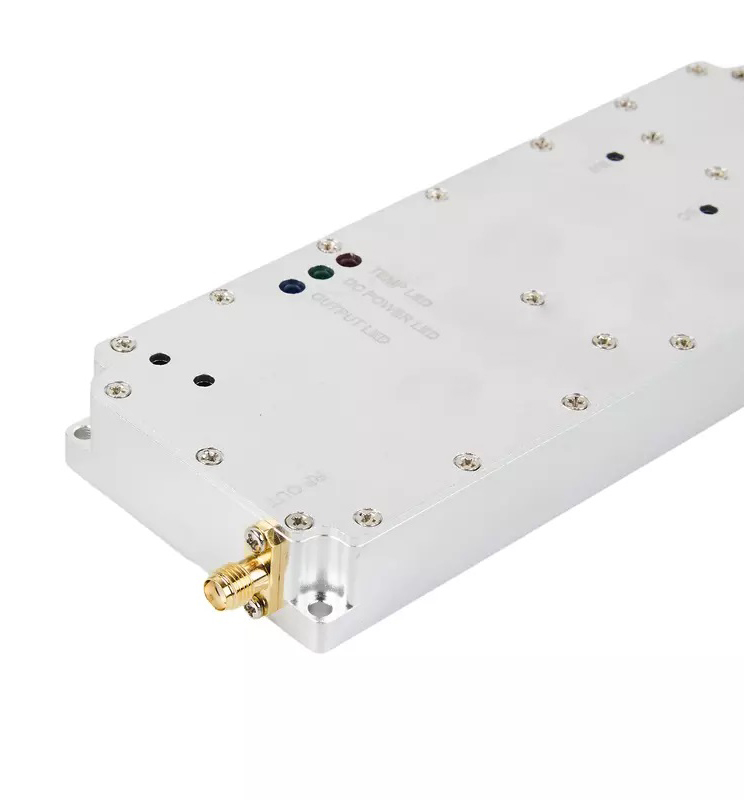

RF Connector	SMA Female	Standard interface
Indicators	Power switch, over-voltage, over-temperature	LED
Dimensions	117 × 58 × 18 mm	Customizable
Weight	Approx. 300 g	Reference value

Why Choose This 5150–5250MHz Drone Jammer Module?

This 50W GaN RF jammer module combines high efficiency, compact structure, and strong interference capability. Thanks to its GaN-on-SiC architecture and copper heat-dissipation base, it delivers stable performance even during continuous operation.

It is an ideal RF module for integrated anti-drone systems, multi-band counter-UAV equipment, and professional security applications where reliable signal suppression is required.
