50W 600-700MHz High-Power Signal Jammer Module | Anti-Drone & LoRa/LDMOS Shielding

High-Performance 50W Signal Jammer Module for 600-700MHz Spectrum Our advanced 50W RF Jammer Module is engineered to deliver robust and reliable signal interference within the 600-700MHz frequency band. Designed for professional security and defense applications, this compact, high-power module is an ideal solution for countering unauthorized drone activit……

Send Inquiry

50W

Functional characteristics

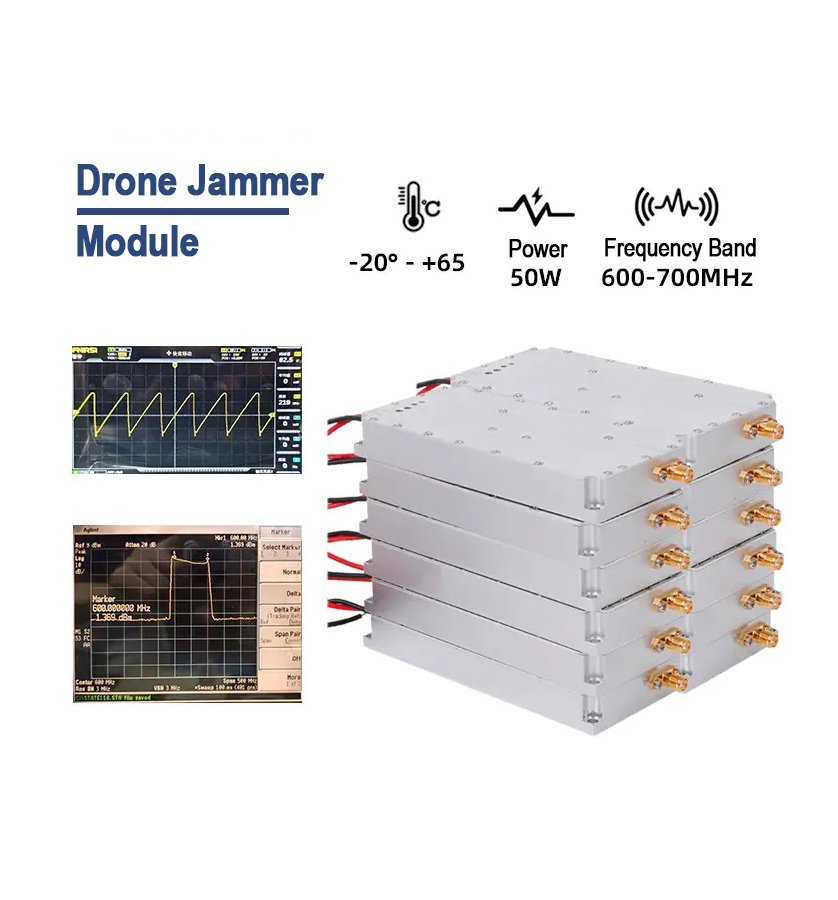

High-Performance 50W Signal Jammer Module for 600-700MHz Spectrum

Our advanced 50W RF Jammer Module is engineered to deliver robust and reliable signal interference within the 600-700MHz frequency band. Designed for professional security and defense applications, this compact, high-power module is an ideal solution for countering unauthorized drone activity and shielding communications that rely on LoRa, LDMOS, and other protocols operating in this critical spectrum.

This module integrates an internal high-speed noise-modulated signal source, ensuring effective wideband jamming. Its superior power output and customizable features make it a versatile core component for building sophisticated counter-UAS (Unmanned Aerial Systems) and signal denial systems.

Core Features & Advantages

High-Power Output: Delivers a solid 50W (47±1dBm) of effective jamming power to disrupt target signals reliably.
Precise Frequency Targeting: Operates specifically in the 600-700MHz range, ideal for targeting LoRa, LDMOS, and various drone control/video links.
Rapid Signal Sweeping: Features a fast 270KHz analog scan speed for broad coverage, with customizable sweep rates (100-500KHz) available.
Flexible Signal Source: Comes with a built-in high-speed noise source. Options for custom VCO, DDS, or SDR-based signal sources are available to meet specific mission requirements.

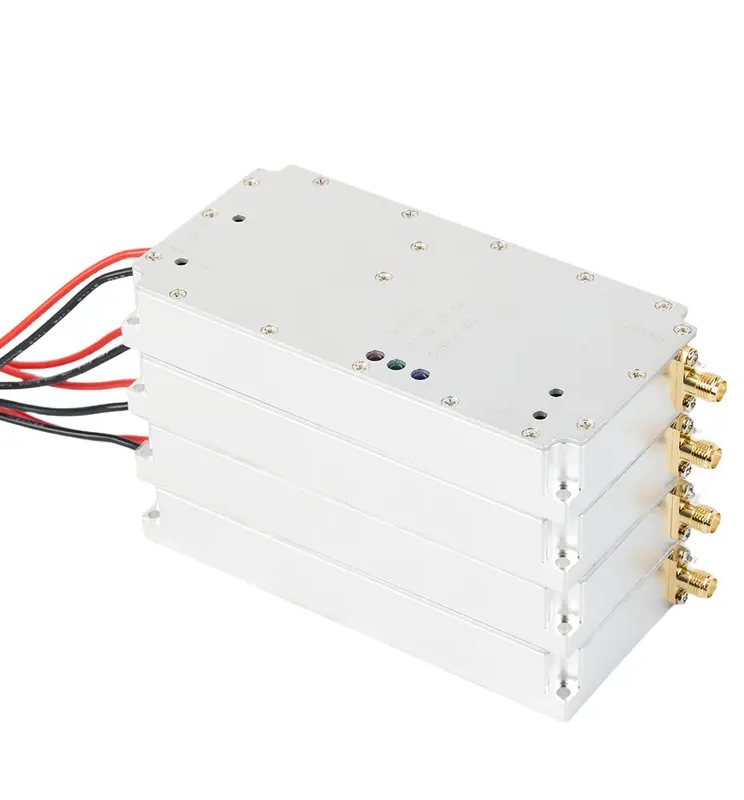

Robust & Compact Design: Built for demanding environments with an operating temperature range of -20°C to +65°C. Its small form factor (117x58x18mm) and light weight (~300g) allow for integration into mobile or fixed platforms.
Comprehensive Protection: Includes LED indicators for power, over-voltage, and over-temperature conditions, ensuring safe operation.
Fully Customizable: From sweep speed and signal source to physical dimensions and connectors, we offer tailored solutions to fit your exact system integration needs.

Technical Specifications

Parameter	Specification
Operating Frequency	600 – 700 MHz
Output Power	50W (47 ±1 dBm)
Operating Voltage	28V (24-28V Range)
Operating Current	≤ 3.2 – 4.5A
Analog Scan Speed	270KHz (Customizable 100-500KHz)
Input Signal Source	Built-in High-Speed Noise Generator (Custom VCO/DDS/SDR available)
Operating Temperature	-20°C ~ +65°C
RF Connector	SMA Female
Indicators & Control	Power Switch, Over-voltage, Over-temperature LEDs
Dimensions	117mm x 58mm x 18mm (Custom sizes available)
Weight	Approx. 300g

Primary Applications

This module serves as the core RF component for systems in:

Counter-Drone (C-UAS) Security: Deploy at critical infrastructure, prisons, military sites, and public events to neutralize rogue drones.
LoRa/LDMOS Signal Shielding: Protect sensitive areas from data leakage or intrusion via these long-range communication protocols.
RF Testing & Simulation: Utilize as a controlled, high-power interference source in laboratory or field testing environments.
Custom Security/Defense Platforms: Integrate into vehicle-mounted, portable, or fixed-installation jamming systems.

Ordering & Customization

This 600-700MHz jammer module supports extensive customization to match your project’s specific requirements. Contact our engineering team today to discuss your needs for custom frequency bands, sweep patterns, control interfaces, or form factors.
