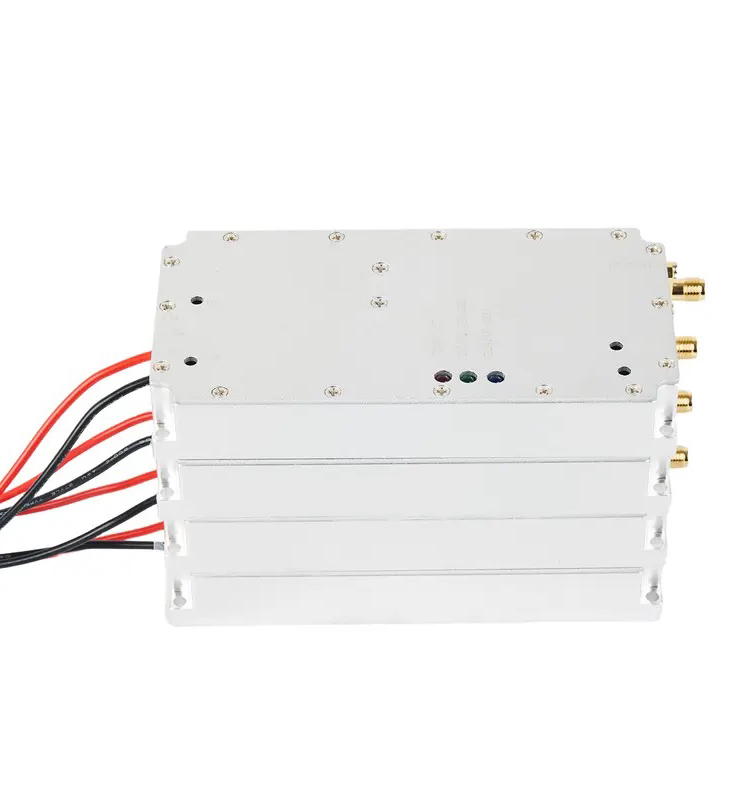

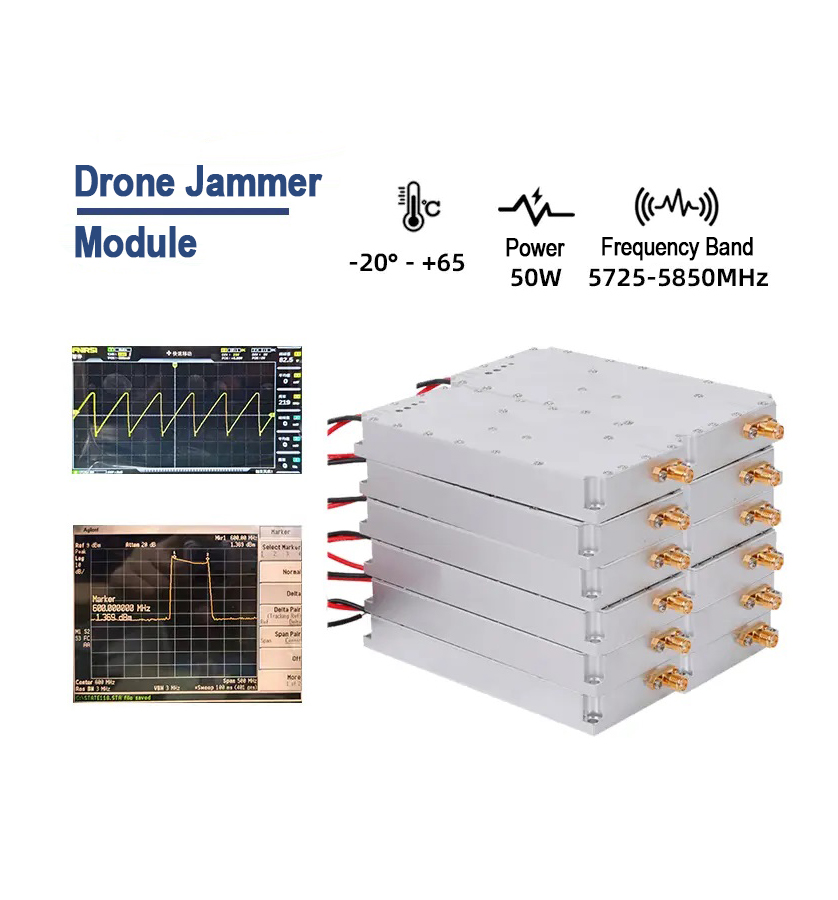

High-Power 50W Drone Jamming Module for LORA/LDMOS Systems
Introducing the high-performance 50W signal jamming module, designed for effective drone countermeasures and robust RF shielding in the 5725–5850MHz frequency range. Ideal for LORA and LDMOS-based system protection, this module ensures reliable signal disruption with customizable features to meet diverse operational needs.
Key Features:
High Output Power: Delivers 50W (47±1 dBm) of jamming power for effective signal interference across the target spectrum.
Wide Frequency Range: Covers 5725–5850MHz, optimized for LORA and LDMOS band applications.
Customizable Scanning Speed: Default 270KHz sweep speed, with optional customization between 100–500KHz.
Flexible Signal Source: Built-in high-speed noise-modulated source; supports custom VCO, DDS, or SDR sources as needed.
Stable Operation: Works at 28V (range 24–28V) with a current consumption of ≤3.2–4.5A.
Durable Design: Operational in temperatures from -20°C to +65°C, with compact dimensions of 117×58×18mm (customizable).
User-Friendly Interface: Includes SMA female connector, LED indicators for power, over-voltage, and over-temperature status.
Applications:
Drone detection and countermeasure systems
LORA/LDMOS communication shielding
Secure facility protection
RF testing and signal interference simulations
Customization Options:
Tailor sweep speed, signal source type, voltage input, and physical dimensions to fit specific project requirements.
Technical Specifications:
Frequency Range: 5725–5850MHz
Output Power: 50W (47±1 dBm)
Operating Voltage: 28V DC (24–28V range)
Current Draw: ≤4.5A
Sweep Speed: 270KHz (customizable up to 500KHz)
Operating Temperature: -20°C to +65°C
Connector: SMA Female
Dimensions: 117mm × 58mm × 18mm (custom sizes available)
Weight: 300g
This module is engineered for reliability and efficiency, making it an essential tool for modern RF jamming and drone neutralization operations.
