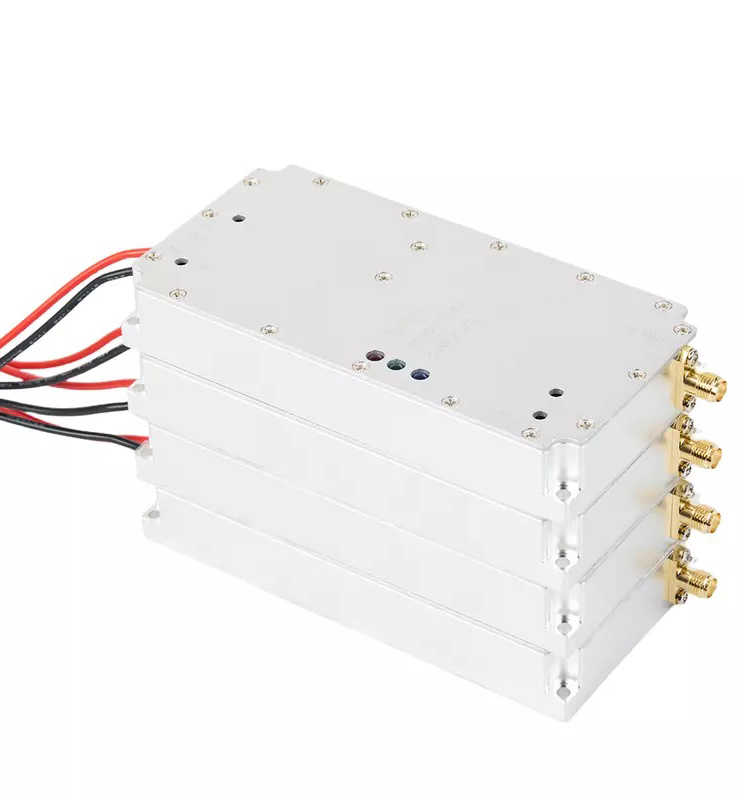

50W High-Performance GaN Drone Countermeasure Module (6500-6700MHz) The 6500-6700MHz 50W Countermeasure Module is a cutting-edge RF solution designed for precision drone signal suppression. Utilizing advanced Gallium Nitride on Silicon Carbide (GaN-on-SiC) technology, this module delivers high efficiency and extreme power density, making it the ideal choic……
The 6500-6700MHz 50W Countermeasure Module is a cutting-edge RF solution designed for precision drone signal suppression. Utilizing advanced Gallium Nitride on Silicon Carbide (GaN-on-SiC) technology, this module delivers high efficiency and extreme power density, making it the ideal choice for modern electronic warfare and UAV defense systems.
Built with a Class AB GaN design, this module provides instantaneous wideband performance for superior signal interference. To ensure long-term reliability and thermal management, the unit is mounted on a premium copper heat sink base, allowing it to maintain peak performance even in demanding environments.
| Feature | Specification | Remarks |
| Frequency Range | 6500 – 6700MHz | Precision 6.5G band coverage |
| Output Power | 50W (47±1dBm) | High-intensity saturation |
| Technology | GaN-on-SiC (Class AB) | High efficiency & reliability |
| Operating Voltage | 24V – 28V (Standard 28V) | Industrial standard |
| Operating Current | ≤3.2 – 4.5A | Optimized power consumption |
| Scan Speed | 270KHz | Customizable (100-500KHz) |
| Input Signal Source | Built-in High-Speed Noise | Optional: VCO, DDS, SDR |
| Impedance | 50 Ohms | Standard Input/Output |
| Connector Type | SMA Female | Rugged RF interface |
| Dimensions | 117 * 58 * 18 mm | Ultra-compact (Customizable) |
| Weight | 300g | Lightweight & Portable |

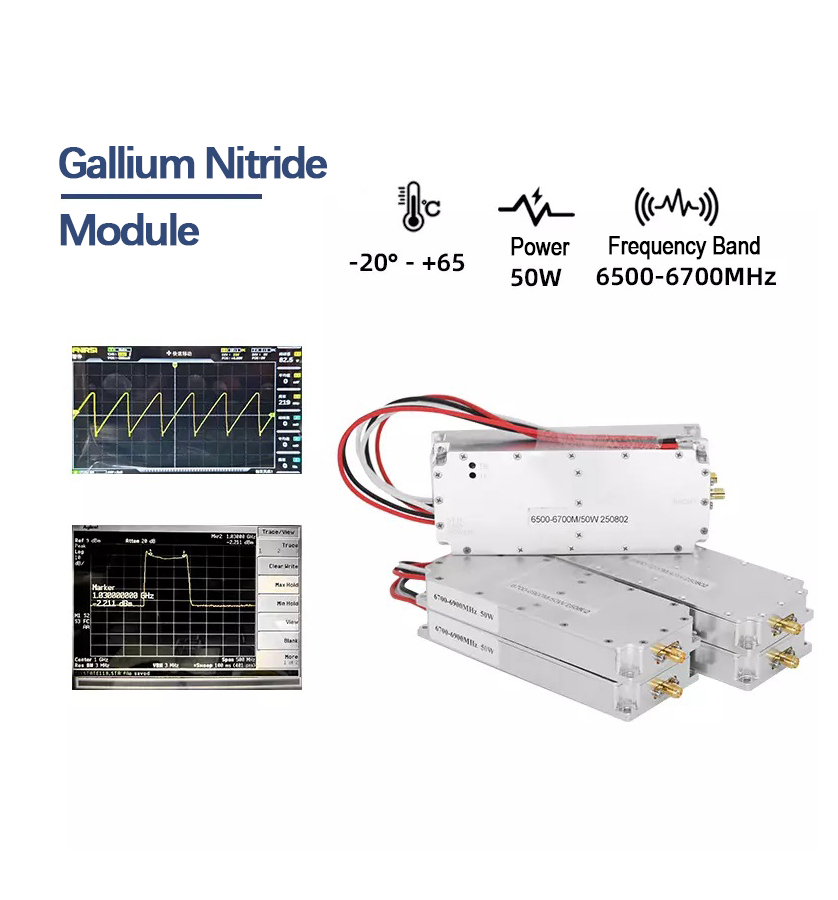

Advanced GaN-on-SiC Technology: By using Gallium Nitride on a Silicon Carbide substrate, this module achieves higher thermal conductivity and power efficiency compared to traditional LDMOS, ensuring a smaller footprint without sacrificing power.
Rugged Class AB Design: Engineered for high reliability and robustness, the Class AB architecture provides a perfect balance between linearity and efficiency for continuous wideband operation.
Superior Heat Dissipation: The integrated copper base plate ensures rapid heat transfer, allowing the module to operate safely within a wide temperature range of -20°C to +65°C.
Smart Protection & Monitoring: Built-in LED indicators provide instant feedback on Power status, Over-voltage, and Over-temperature, safeguarding your equipment against electrical and thermal stress.
High Customizability: We support tailored solutions including frequency adjustments, custom dimensions, and various signal source inputs (VCO, DDS, or SDR).
Specialized UAV Defense: Targeting specific high-frequency control and data links.
Electronic Warfare Systems: High-power signal jamming and shielding.
Modular Integration: Perfect for portable anti-drone guns, vehicle-mounted systems, and stationary signal shields.
Our engineering team is ready to assist with custom requirements for your specific mission profiles. Whether you need a different frequency range or specific mechanical mounting, we offer full-service OEM/ODM support.
