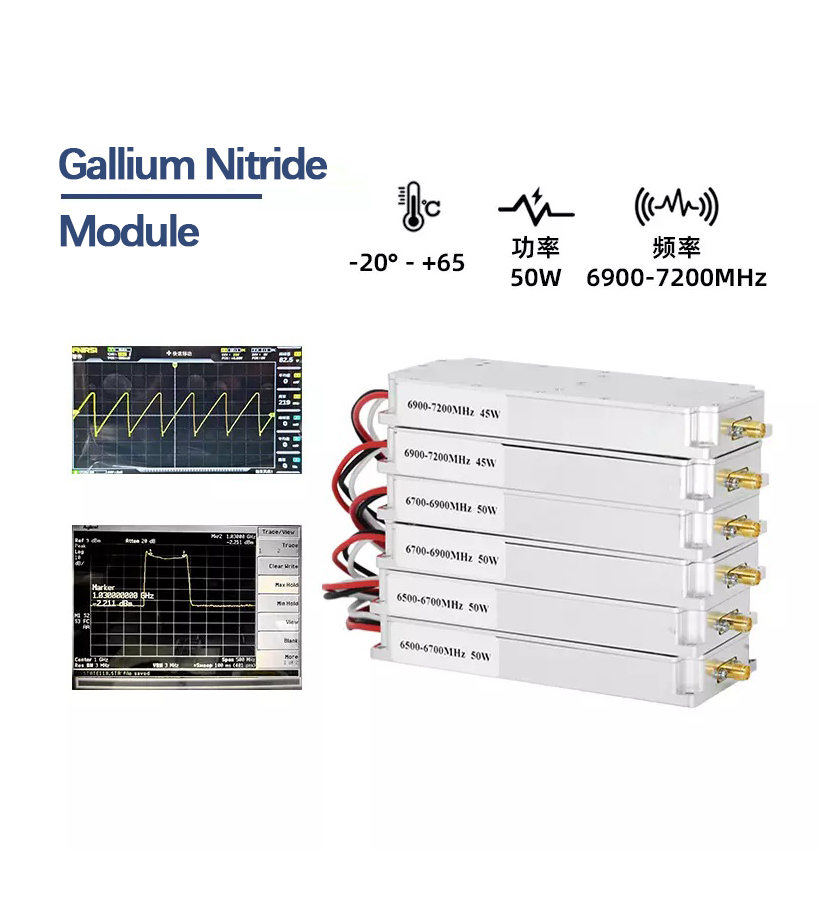

50W 6900-7200MHz GaN Drone Jammer Module | High-Frequency UAV Countermeasure

High-Frequency 50W Countermeasure Module for 6.9-7.2GHz UAV Bands Engineered for advanced drone neutralization, this 50W jammer module targets the 6900-7200MHz spectrum—a critical band for high-resolution video downlinks and data transmission. Utilizing cutting-edge GaN on SiC technology, it delivers efficient, high-power jamming in an exceptionally compac……

Send Inquiry

50W

Functional characteristics

High-Frequency 50W Countermeasure Module for 6.9-7.2GHz UAV Bands

Engineered for advanced drone neutralization, this 50W jammer module targets the 6900-7200MHz spectrum—a critical band for high-resolution video downlinks and data transmission. Utilizing cutting-edge GaN on SiC technology, it delivers efficient, high-power jamming in an exceptionally compact form factor, making it the optimal RF core for next-generation counter-drone systems.

Core Advantages for System Integrators

Advanced GaN Performance: Employs a Class AB GaN-on-SiC design, providing superior power density, efficiency, and thermal performance compared to traditional technologies, all within a minimal footprint.
Precision High-Frequency Targeting: Effectively disrupts modern drone operations by jamming dedicated high-frequency communication channels used for FPV video and command links.
All-in-One Operational Readiness: The integrated high-speed noise modulation source eliminates the need for an external signal generator, simplifying system architecture and accelerating deployment.

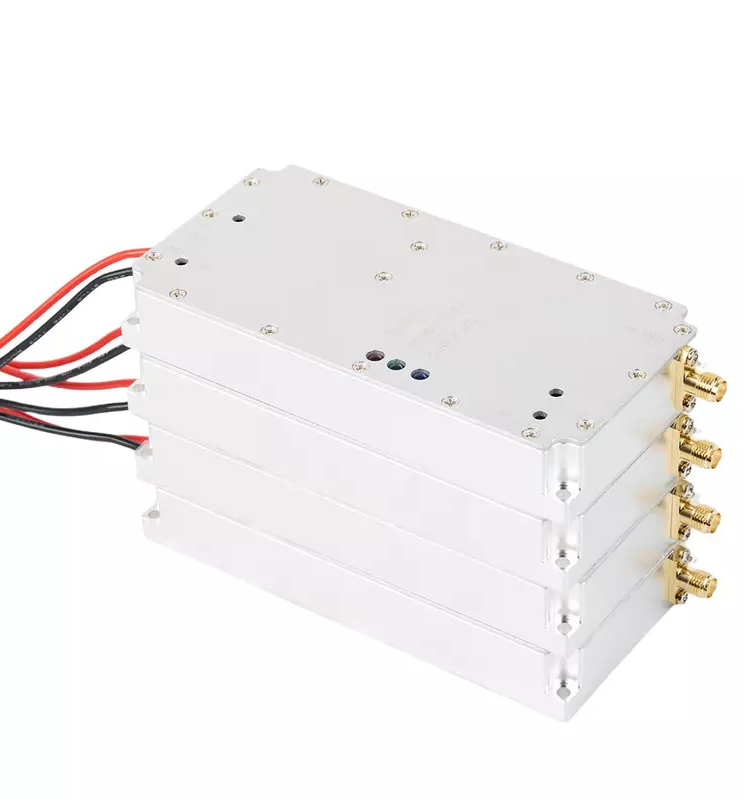

Compact & Robust Construction: Its small size (117x58x18mm), light weight (300g), and robust build ensure easy integration into portable, mobile, or aerial counter-UAV platforms without compromising on power or reliability.
Full Customization Flexibility: We support tailored modifications, including sweep speed adjustment (100-500KHz), alternative signal sources (VCO/DDS/SDR), and custom mechanical designs to meet exact project specifications.

Technical Specifications at a Glance

Feature	Specification
Target Frequency Range	6900 – 7200 MHz
RF Output Power	50W (47 ±1 dBm)
Operating Voltage & Current	28V (24-28V Range) / ≤ 3.2 – 4.5 A
Standard Signal Source	Integrated High-Speed Noise Modulator
Sweep Speed	270 KHz (Customizable)
RF Connector	SMA Female
Input/Output Impedance	50 Ohms
Thermal Design	GaN on SiC, Copper Heat Spreader
Operating Temperature	-20°C to +65°C
Dimensions	117 x 58 x 18 mm (Customizable)
Weight	~300g

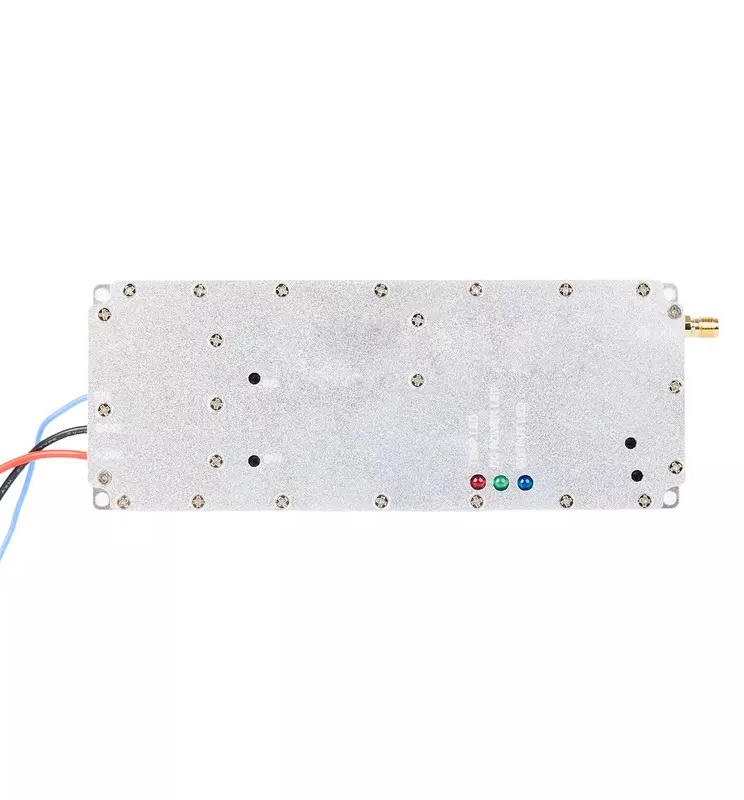

Status Indicators	Power, Over-voltage, Over-temperature LEDs

Primary Application Scenarios

This module is designed as the key RF component in systems requiring neutralization of drones utilizing high-frequency links:

Mobile Counter-UAV Units: For tactical, on-the-move protection.
Fixed-Site Security: Safeguarding critical infrastructure from surveillance or hostile drones.
Integrated Defense Platforms: As part of layered, multi-spectrum counter-drone solutions.

Ordering & Custom Solutions

This standard high-frequency module serves as a powerful foundation. Contact our technical team to discuss how we can adapt its frequency, power, interface, or form factor to create the precise jamming solution your mission requires.
