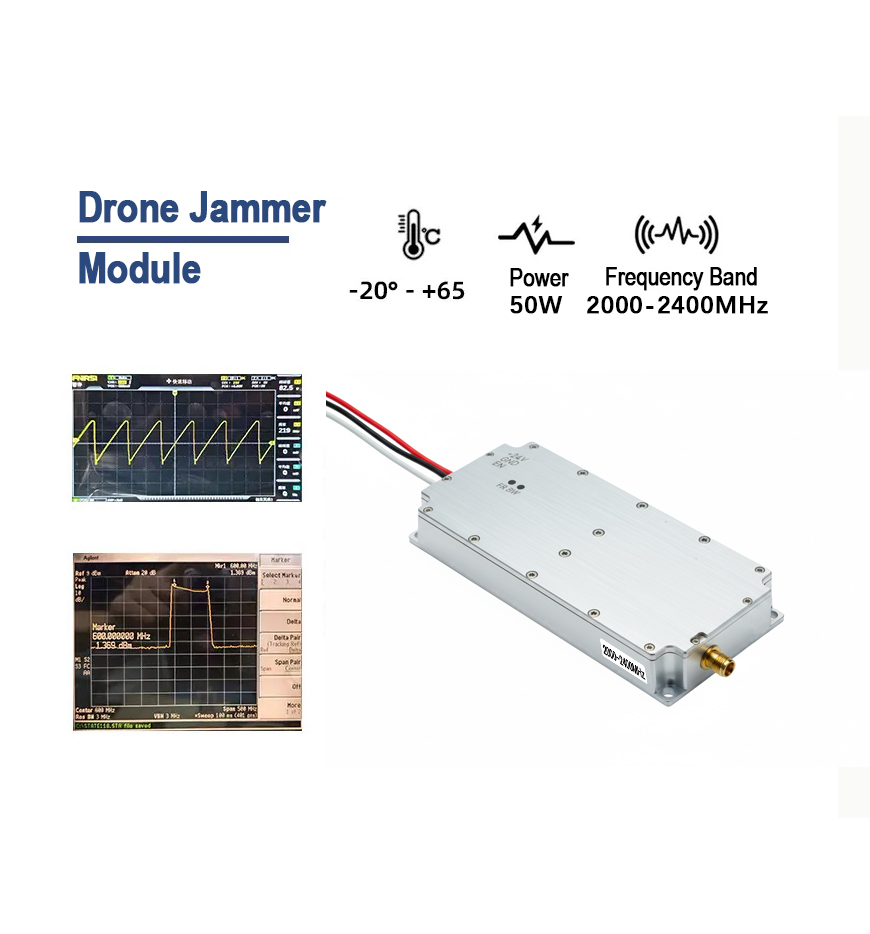

50W 2000–2400MHz Drone Countermeasure Module | LORA/LDMOS RF Jamming Module

50W 2000–2400MHz Drone Countermeasure Module Professional LORA / LDMOS Signal Shielding Module The 2000–2400MHz 50W drone jammer module is a high-efficiency RF shielding component designed for integration into professional UAV countermeasure systems. Built with advanced LORA/LDMOS technology, this module ensures stable 50W output power across the 2000–2400……

Send Inquiry

50W

Functional characteristics

50W 2000–2400MHz Drone Countermeasure Module

Professional LORA / LDMOS Signal Shielding Module

The 2000–2400MHz 50W drone jammer module is a high-efficiency RF shielding component designed for integration into professional UAV countermeasure systems. Built with advanced LORA/LDMOS technology, this module ensures stable 50W output power across the 2000–2400MHz frequency band.

Its compact structure, built-in high-speed noise modulation source, and flexible customization options make it suitable for fixed installations, vehicle-mounted systems, and portable anti-drone platforms.

Key Features

Operating frequency: 2000–2400MHz
Stable output power: 50W (47±1dBm)
LORA / LDMOS architecture, customizable
Built-in high-speed noise modulation signal source
Optional VCO, DDS, or SDR signal source
Adjustable scan speed (100–500KHz customizable)
Wide operating temperature range (-20℃ to +65℃)
LED indicators for power, over-voltage, and over-temperature
Compact size and lightweight design

Technical Specifications

Item	Specification	Remarks
Operating Frequency	2000–2400MHz	—
Output Power	47±1dBm	50W
Operating Voltage	28V	24–28V
Operating Current	≤3.2–4.5A	At 50W output
Scan Speed	270KHz	Customizable 100–500KHz
Signal Source	Built-in high-speed noise modulation	Optional VCO / DDS / SDR
Working Temperature	-20℃ to +65℃	Normal operation
RF Connector	SMA Female	—
Status Indicators	Power switch, over-voltage, over-temperature	LED indicators
Dimensions	117 × 58 × 18 mm	Customizable
Weight	300g	—

Stable RF Performance for System Integration

This 50W drone countermeasure module is engineered to deliver consistent RF performance within the 2000–2400MHz band. The built-in high-speed noise modulation signal source ensures reliable and stable output, while optional VCO, DDS, or SDR solutions provide flexible system configuration.

The adjustable scan speed allows integrators to optimize performance according to operational requirements and deployment environments.

Compact Design for Easy Deployment

With dimensions of 117 × 58 × 18 mm and a weight of only 300g, this module is ideal for:

Fixed-site countermeasure systems
Vehicle-mounted platforms
Portable anti-drone devices
Integrated security equipment

The SMA female connector enables quick RF connection, and LED indicators provide real-time system status monitoring for enhanced operational safety.

Industrial-Grade Reliability

Designed for demanding environments, the module operates reliably between -20℃ and +65℃. Built-in protection indicators help monitor over-voltage and over-temperature conditions, ensuring long-term stability and durability.

Why Choose This 2000–2400MHz 50W Drone Jammer Module?

High-efficiency LORA/LDMOS RF design
Stable 50W output power
Flexible signal source customization
Compact and lightweight structure
Wide temperature operation range
Suitable for professional UAV countermeasure integration

If you are looking for a reliable and customizable 2000–2400MHz drone countermeasure module, this 50W LORA/LDMOS solution provides the performance and integration flexibility required for advanced anti-drone systems.

For customization options or bulk inquiries, please contact our technical team for detailed support.
