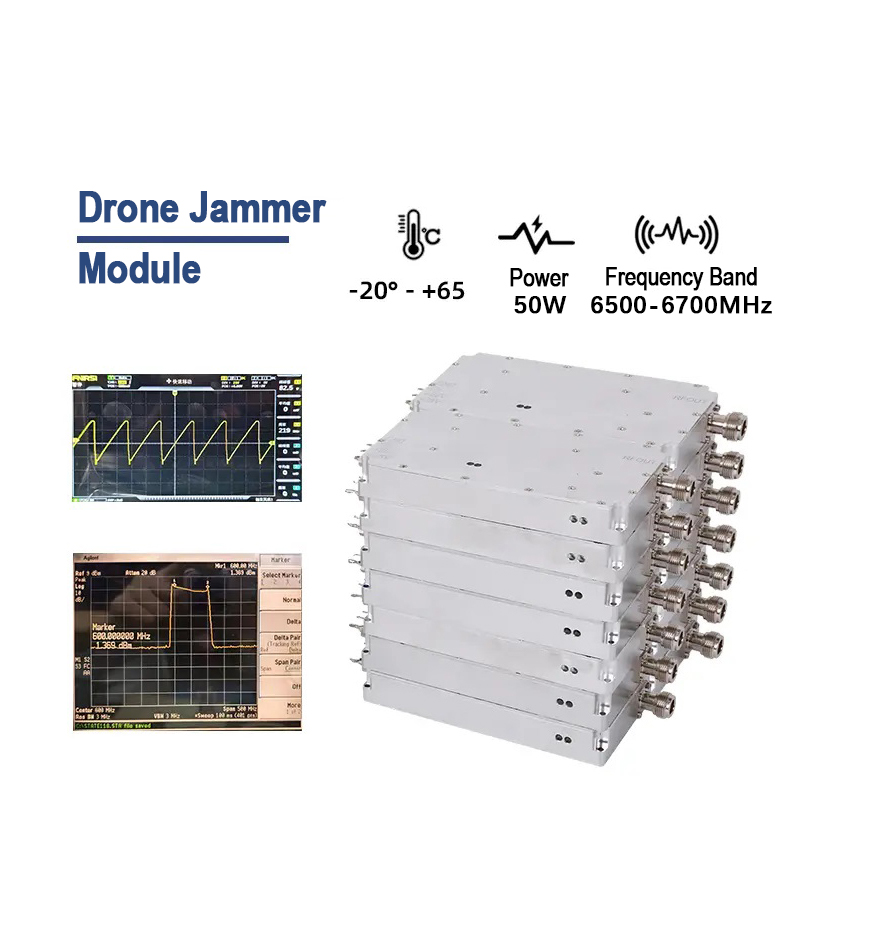

Home > Product > Drone jammer module > 50W > 50W Drone Jammer Module 6500-6700MHz – Power Amplifier for UAV Countermeasure Systems
50W Drone Jamming Module – 6500-6700MHz for UAV Countermeasure Systems Frequently Asked Questions What is this module used for? This 50W power amplifier module is specifically designed for drone countermeasure and signal jamming applications in the 6500–6700 MHz frequency range. It is ideal for disrupting UAV communications and control links in defense, s……
This 50W power amplifier module is specifically designed for drone countermeasure and signal jamming applications in the 6500–6700 MHz frequency range. It is ideal for disrupting UAV communications and control links in defense, security, and sensitive area protection scenarios.
Instantaneous wideband operation (6500-6700MHz)
High-speed noise modulation (internal source)
Fast sweeping: 270 kHz standard (customizable 100-500 kHz)
GaN-on-SiC technology for high efficiency and reliability
Compact and lightweight: 117×58×18 mm, only 300g
50Ω input/output impedance for easy integration
Built-in protections: over-voltage, over-temperature with LED indicators
Rugged design: operates from -20 to +65°C
| Parameter | Specification | Notes |
|---|---|---|
| Frequency Range | 6500 – 6700 MHz | Instantaneous bandwidth |
| Output Power | 47 dBm ±1 dB (50W) | Linear power typical |
| Operating Voltage | 24 – 28 VDC | 28 V nominal |
| Operating Current | ≤ 3.2 – 4.5 A | Varies with output and modulation |
| Input Signal Source | Internal high-speed noise modulation | Custom VCO/DDS/SDR options available |
| Sweep Speed | 270 kHz (standard) | Customizable 100 – 500 kHz |
| Impedance | 50 Ω (input/output) | SMA female connectors |
| Operating Temp | -20 to +65°C | Full performance guaranteed |
| LED Indicators | Power, Over-Voltage, Over-Temperature | Visual status monitoring |
| Dimensions (L×W×H) | 117 × 58 × 18 mm | Custom sizes available upon request |
| Weight | Approx. 300 g | Lightweight design |
| Connectors | SMA female | Standard |
UAV drone jamming and countermeasure systems
Signal shielding and RF denial equipment
Electronic warfare and defense systems
Portable or fixed-site jammers
High-power RF test and measurement setups
Yes, we offer full customization options including:
Sweep speed adjustment (100 kHz to 500 kHz)
Alternative signal sources (VCO, DDS, or SDR)
Mechanical dimensions and connector types
Extended temperature ranges or conformal coating for harsh environments
This drone jammer module, ensuring reliable 50W output even under continuous operation. Its compact size, lightweight design, and flexible customization make it an ideal choice for both new integrations and upgrades to existing drone defense systems.
Please contact our engineering team with your specific requirements. We support OEM and project-based orders.
