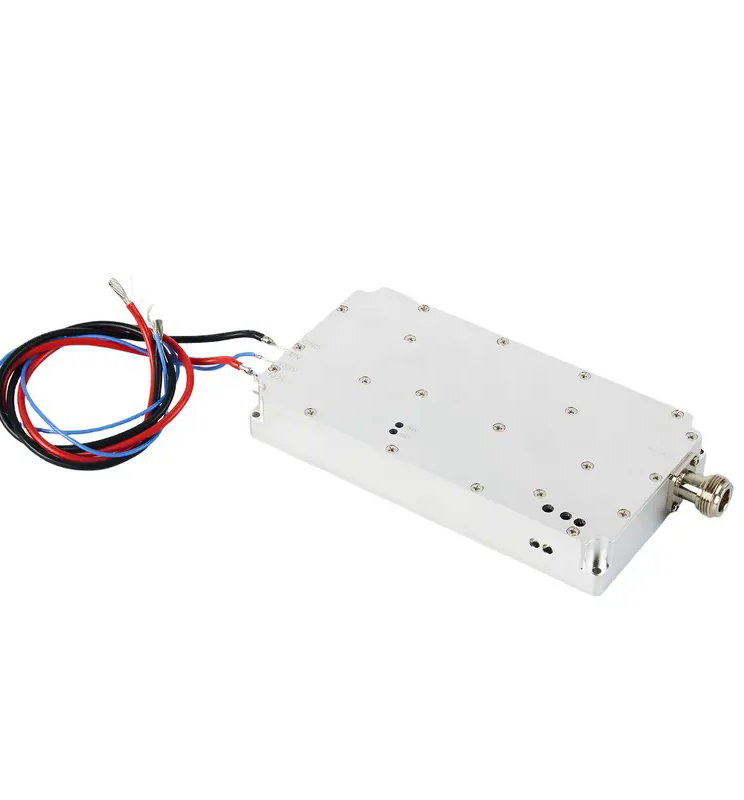

100W GaN Drone Jammer Module | 5725-5850MHz High-Power RF Interference Module

Powerful 100W GaN Drone Jammer Module for 5725-5850MHz Band Our advanced 100W RF jammer module delivers high-power, reliable interference specifically designed for the 5725-5850MHz frequency spectrum, commonly used by drones and other communication systems. Engineered with cutting-edge Gallium Nitride (GaN) on Silicon Carbide (SiC) technology, this module ……

Send Inquiry

100W

Functional characteristics

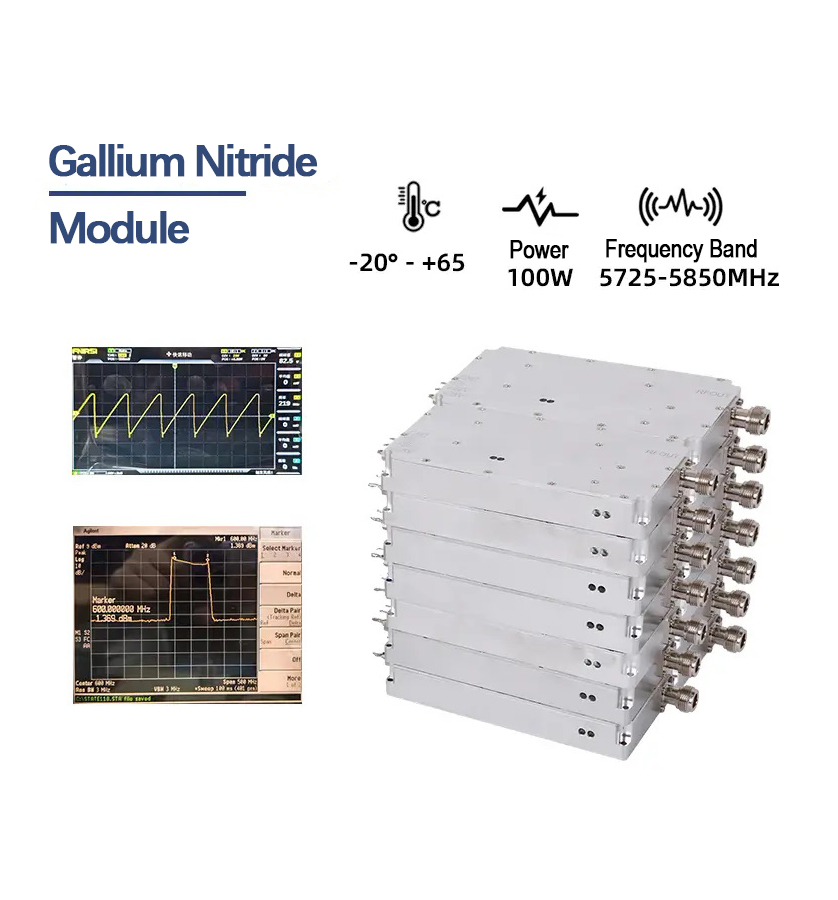

Powerful 100W GaN Drone Jammer Module for 5725-5850MHz Band

Our advanced 100W RF jammer module delivers high-power, reliable interference specifically designed for the 5725-5850MHz frequency spectrum, commonly used by drones and other communication systems. Engineered with cutting-edge Gallium Nitride (GaN) on Silicon Carbide (SiC) technology, this module provides robust performance in a compact and rugged package, making it an ideal core component for professional counter-UAV and RF denial systems.

Key Features & Advantages:

High-Power GaN Performance: Utilizes AB-class GaN technology for superior efficiency and high output power of 100W (50dBm ±1) across the target band.
Broad Instantaneous Bandwidth: Covers the entire 5725-5850MHz range for effective wideband interference, capable of disrupting multiple signals simultaneously.
Exceptional Thermal Management: Built on a copper carrier with proprietary thermal design, ensuring high reliability and stable operation under demanding conditions.
Compact & Lightweight Design: With dimensions of just 150 x 80 x 22mm and a weight of 800g, it integrates easily into portable or fixed systems.
Standard & Custom Configurations: While featuring a built-in high-speed noise modulation source as standard, the module supports customization of signal sources (VCO, DDS, SDR) and scan speed (100-500KHz).
Comprehensive System Protection: Includes safeguards against over-voltage and over-temperature conditions, indicated by LED status lights for power, fault, and temperature.

Technical Specifications:

Parameter	Specification
Frequency Range	5725 – 5850 MHz
Output Power	100W (50 dBm ±1)
Operating Voltage	28V DC (28-32V Range)
Operating Current	≤ 9.2A
Scan Speed (Analog)	270 KHz (Customizable: 100-500 KHz)
Input Signal Source	Built-in High-Speed Noise Modulated Source (Custom: VCO, DDS, SDR)
RF Connector	N-Type Female
Operating Temperature	-20°C to +65°C
Dimensions (LxWxH)	150 x 80 x 22 mm
Weight	Approx. 800 grams

Applications:

This module serves as the core RF power block for systems requiring disruption of drone command, control, and video transmission links in the 5.8GHz band. Typical applications include:

Fixed-site critical infrastructure protection
Mobile counter-UAV systems
Portable tactical jamming equipment
Custom RF interference solutions for security and defense

Ordering & Customization:

We offer this high-performance 100W GaN module as a standard product and support extensive customization to meet specific project requirements. Contact our engineering team to discuss modifications to frequency range, output power, scan patterns, control interfaces, or form factor.

For superior signal denial in the 5.8GHz spectrum, leverage the power and reliability of our GaN-based technology.
