100W 840–1000MHz GaN Drone Jammer Module | High-Power Counter-UAV RF Shielding Module

100W 840–1000MHz GaN Drone Jammer Module (Q&A Guide) The 100W 840–1000MHz GaN Drone Jammer Module is a high-performance RF interference module designed for counter-UAV systems and RF shielding applications. Built using advanced GaN-on-SiC technology, the module offers high power density, excellent thermal management, and reliable long-term operation. ……

Send Inquiry

100W

Functional characteristics

100W 840–1000MHz GaN Drone Jammer Module (Q&A Guide)

The 100W 840–1000MHz GaN Drone Jammer Module is a high-performance RF interference module designed for counter-UAV systems and RF shielding applications. Built using advanced GaN-on-SiC technology, the module offers high power density, excellent thermal management, and reliable long-term operation.

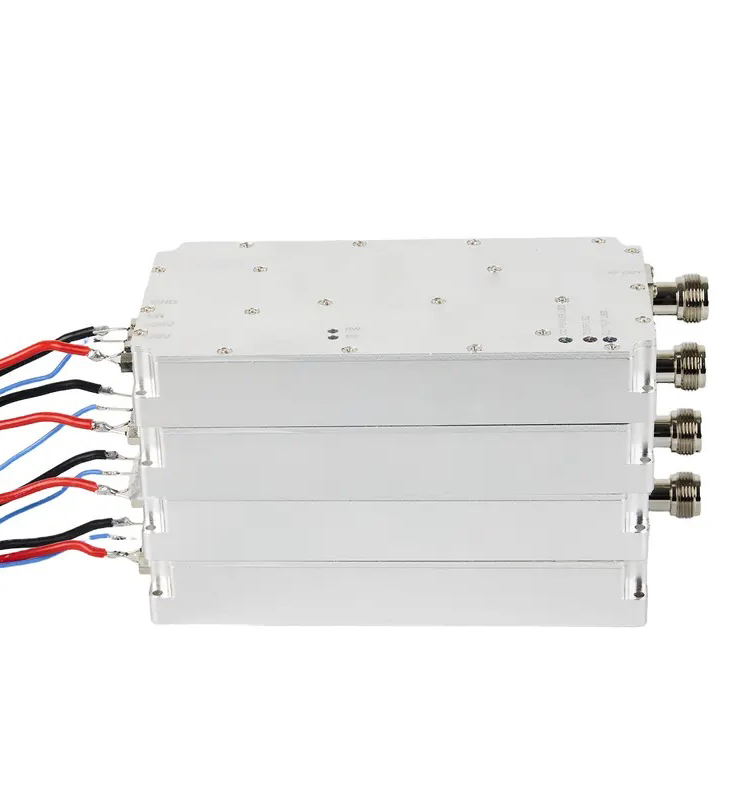

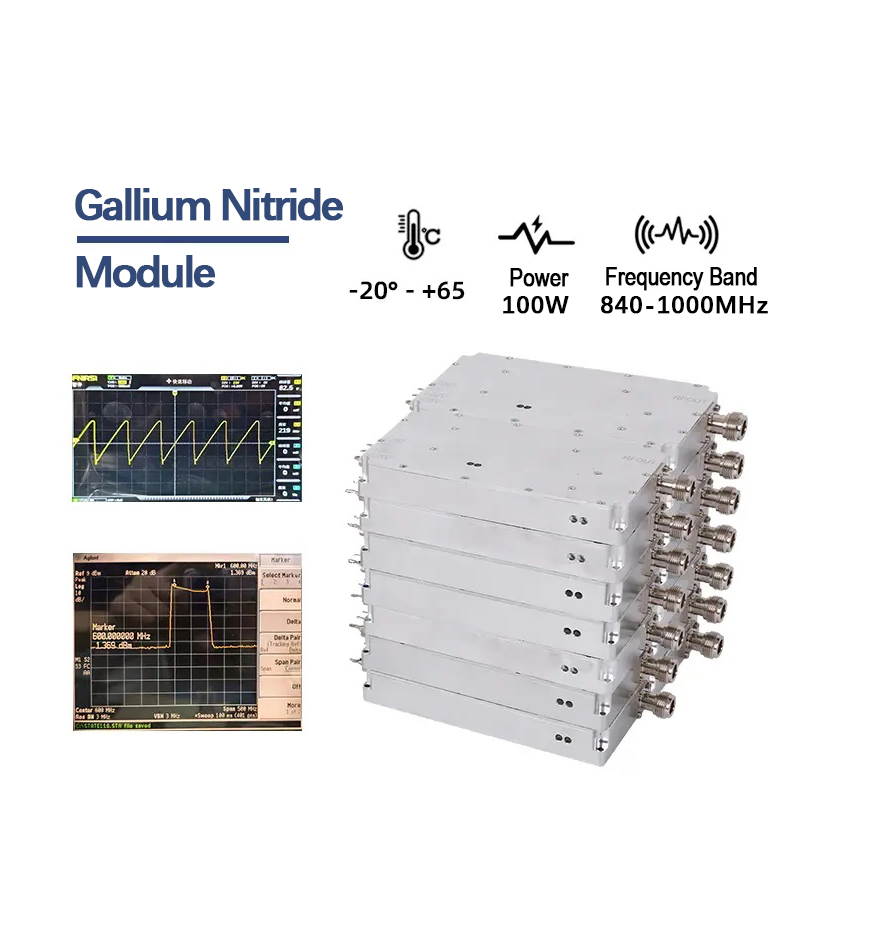

100W 840–1000MHz GaN Drone Jammer Module

Its instant wideband architecture combined with a built-in high-speed noise modulation source enables efficient interference across the entire 840–1000MHz frequency range. The compact design and robust structure allow easy integration into portable, vehicle-mounted, or fixed anti-drone platforms.

Product Questions & Answers

Q1: What frequency band does this drone jammer module cover?

This module operates within the 840–1000MHz frequency range, which can be used to interfere with certain drone communication and telemetry signals. Custom frequency ranges within this band are available depending on system requirements.

Q2: What technology is used in this jammer module?

The module adopts an AB-class GaN amplifier design based on GaN-on-SiC technology. This technology provides higher efficiency, better heat dissipation, and stronger power output compared to conventional RF amplifier solutions.

Q3: Does the module require an external signal generator?

No external signal source is required. The module integrates a high-speed noise modulation signal generator internally. For specialized systems, optional VCO, DDS, or SDR signal sources can also be customized.

Q4: What design features improve reliability?

To ensure stable performance, the module includes:

50-ohm input/output impedance for efficient RF matching

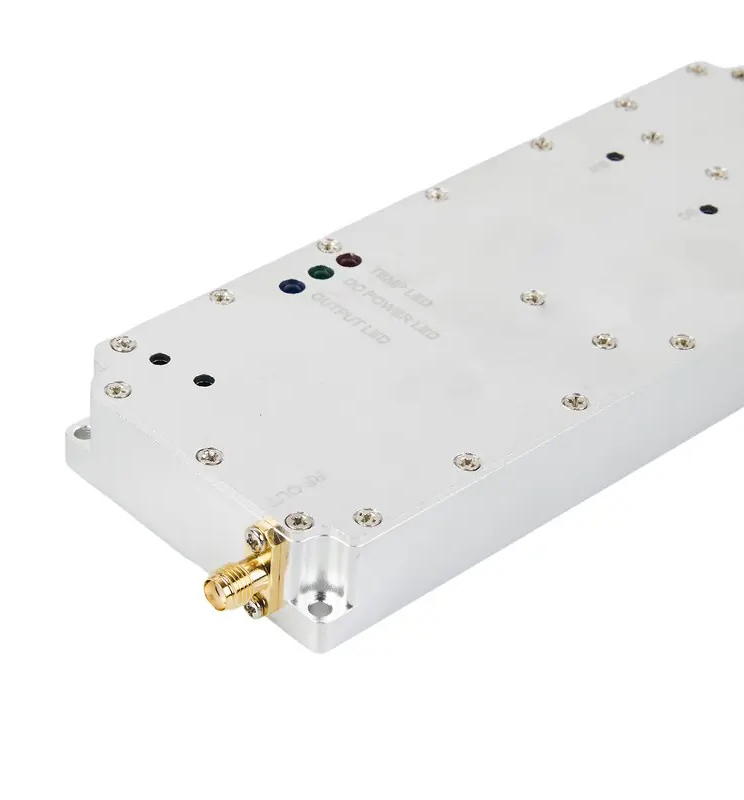

LED status indicators for power, over-voltage, and over-temperature
Copper carrier base with advanced thermal management
Wideband instantaneous interference capability

These features help maintain stable operation in demanding counter-UAV environments.

Technical Specifications

Parameter	Specification	Notes
Frequency Range	840–1000 MHz	Customizable
Output Power	100 W	50 ±1 dBm
Working Voltage	28–32 V	Typical 28 V
Working Current	≤ 9.2 A	Full power
Scan Speed	270 KHz	Customizable 100–500 KHz
Signal Source	Built-in High-Speed Noise Modulation	Optional VCO / DDS / SDR
RF Connector	N Female	Output connector
Operating Temperature	-20°C to +65°C	Normal operation
Status Indicators	Power / Over-Voltage / Over-Temperature	LED
Dimensions	150 × 80 × 22 mm	Compact size
Weight	800 g	Approximate
