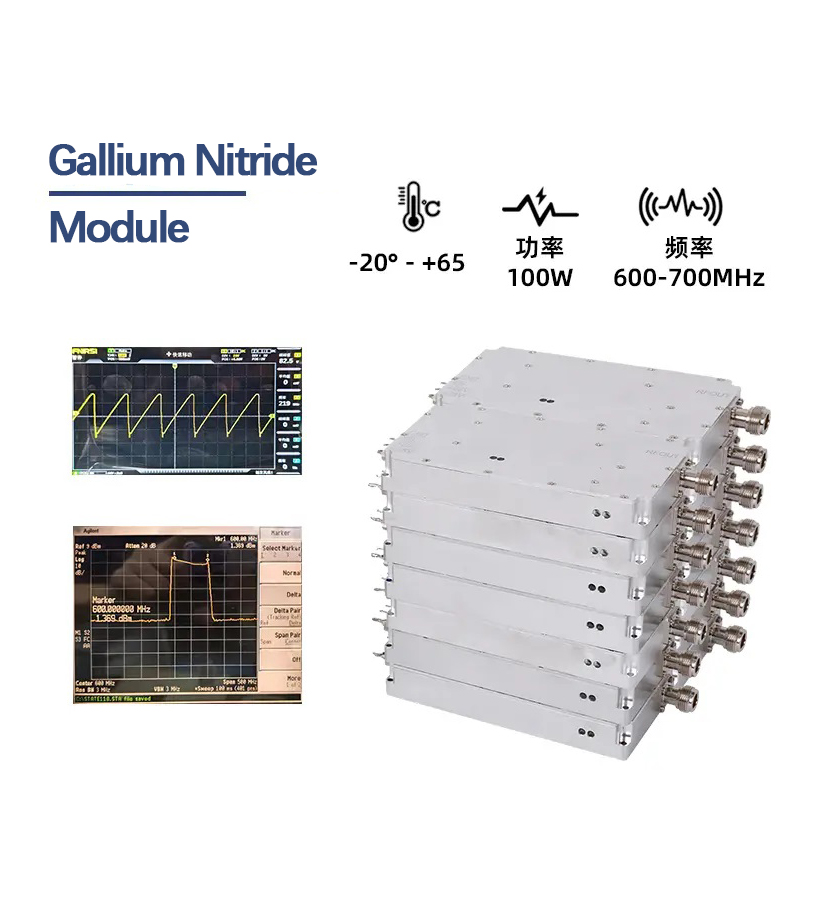

100W 600-700MHz GaN Anti-Drone Jammer Module | High-Power UAV Countermeasure

Advanced 100W GaN-Based Drone Countermeasure Module for 600-700MHz Band Jamming Designed for high‑performance UAV signal suppression, our 100W GaN Drone Jammer Module delivers exceptional power and reliability in the 600‑700MHz frequency range. Utilizing Gallium Nitride (GaN) on Silicon Carbide technology and a patented thermal management design, this modu……

Send Inquiry

100W

Functional characteristics

Advanced 100W GaN-Based Drone Countermeasure Module for 600-700MHz Band Jamming

Designed for high‑performance UAV signal suppression, our 100W GaN Drone Jammer Module delivers exceptional power and reliability in the 600‑700MHz frequency range. Utilizing Gallium Nitride (GaN) on Silicon Carbide technology and a patented thermal management design, this module sets a new standard for efficiency, bandwidth, and durability in counter‑drone operations. Fully customizable sweep rates and input sources allow adaptation to specialized mission requirements.

Key Features & Benefits

GaN‑on‑SiC Technology: High power density, excellent thermal performance, and ruggedness for sustained operation.
100W Output Power: Provides strong, reliable interference across the entire 600‑700MHz band.
Instant Wideband Coverage: Capable of rapid, broad spectrum jamming for effective counter‑UAV response.
Fully Customizable: Sweep rate (100‑500KHz) and input source (VCO, DDS, SDR) can be tailored to your system needs.
Compact & Lightweight: Only 150 × 80 × 22mm and 800g, enabling integration into mobile or fixed platforms.
Comprehensive Protection: Built‑in LED indicators for power, over‑voltage, and over‑temperature conditions.
High‑Reliability Design: Copper‑carrier mounting and advanced thermal management ensure stable performance in harsh environments.

Technical Specifications

Parameter	Specification / Description
Frequency Range	600 – 700 MHz
Output Power	100W (50 ±1 dBm)
Output VSWR	50 Ω (matched)
Operating Voltage	28V (28 – 32V range supported)
Operating Current	≤ 9.2A
Interference Source	Built-in high-speed noise-modulated source
Customizable Sources	VCO, DDS, SDR (optional)
Sweep Speed	270KHz (default), customizable from 100KHz to 500KHz
Operating Temperature	-20°C to +65°C
RF Connector	N-Type Female
Control Indicators	Power ON, Over‑Voltage, Over‑Temperature LEDs
Dimensions	150 × 80 × 22mm
Weight	800g
Amplifier Class	Class AB GaN Design
Thermal Management	Patented heat dissipation on copper carrier

Applications

Military and defense counter‑UAV systems
Critical infrastructure and border protection
Event security and no‑fly zone enforcement
Private facility and VIP protection details
Customizable jamming solutions for R&D and integration

Design & Customization
The module employs a Class AB GaN amplifier architecture for high efficiency and linearity. Its wide instantaneous bandwidth enables effective disruption of modern drone links. The unit accepts a standard 28V supply and can be tailored in sweep characteristics and signal input type to match specific operational scenarios. All components are selected and tested for high reliability under extended duty cycles.

Ordering & Integration
This high‑power GaN jammer module is available as a standard model or can be customized to meet unique frequency, sweep, or control requirements. For technical datasheets, customization options, and integration support, please contact our engineering team.
