100W 1000–1300MHz Drone Jammer Module Q1: What is the 100W 1000–1300MHz drone jammer module? This module is a 100W drone jammer designed for disrupting drones operating in the 1.0–1.3GHz frequency range. Its wide instantaneous bandwidth ensures effective interference for both control and video transmission signals. The compact and lightweight design allows……

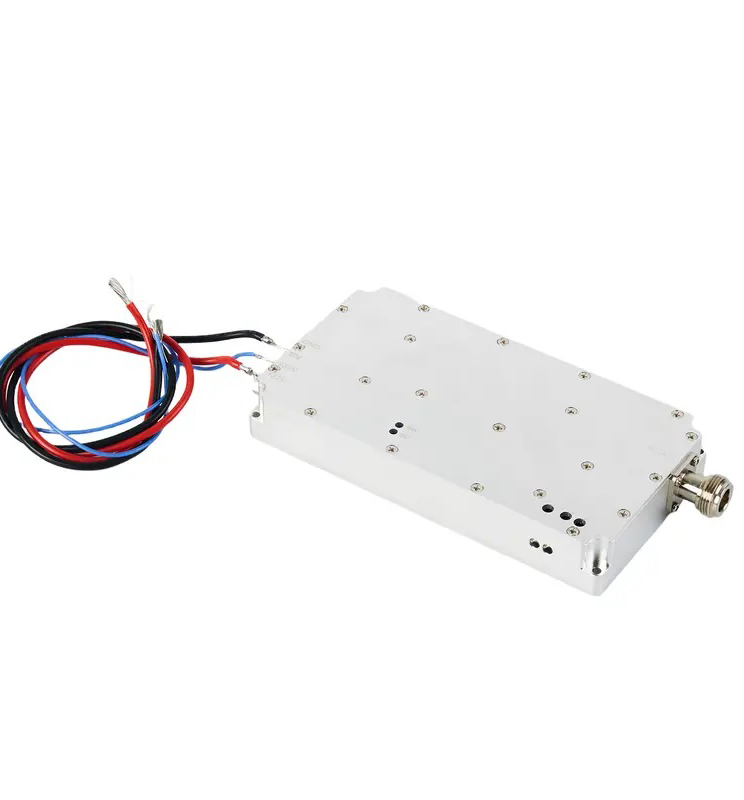

This module is a 100W drone jammer designed for disrupting drones operating in the 1.0–1.3GHz frequency range. Its wide instantaneous bandwidth ensures effective interference for both control and video transmission signals. The compact and lightweight design allows easy integration into portable or stationary counter-UAV systems.
Instantaneous wideband coverage for flexible jamming
50Ω input/output impedance for standard RF connections
Compact and lightweight (150×80×22mm, 800g)
High reliability for long-term operation in harsh environments
Customizable frequency ranges and signal sources
Maximum output power: 100W (50±1 dBm)
Built-in high-speed noise modulation signal source
Optional customizations: VCO, DDS, SDR
This provides flexible deployment options depending on the counter-drone strategy.
Working voltage: 28V DC (range 28–32V)
Working current: ≤9.2A
Scan speed: 270KHz (customizable 100–500KHz)
These specifications ensure stable operation and compatibility with a variety of platforms.
N-type female connector for RF input/output
LED indicators for power, over-voltage, and over-temperature
Power switch and internal protections against over-voltage and overheating
These features make installation and monitoring straightforward and safe.
| Item | Specification | Remarks |
|---|---|---|
| Frequency Range | 1000–1300MHz | Customizable |
| Output Power | 100W | 50±1 dBm |
| Working Voltage | 28V DC | 28–32V |
| Working Current | ≤9.2A | At full power |
| Scan Speed | 270KHz | Customizable 100–500KHz |
| Signal Source | Built-in high-speed noise modulation | Optional VCO/DDS/SDR |
| Operating Temperature | -20°C to +65°C | Normal operation |
| RF Connector | N-type female | — |
| Indicators | Power / Over-voltage / Over-temperature | LED |
| Dimensions | 150 × 80 × 22 mm | — |
| Weight | 800g | — |
The 100W 1000–1300MHz drone jammer module is ideal for:
Portable and vehicle-mounted counter-UAV systems
Fixed security installations for industrial sites
Infrastructure and facility protection
Military or law enforcement UAV control disruption
It combines high output power, wideband coverage, and compact size, making it a versatile option for professional counter-drone deployments.
This module can be further customized for different frequency ranges or enhanced power levels to meet project-specific requirements.
