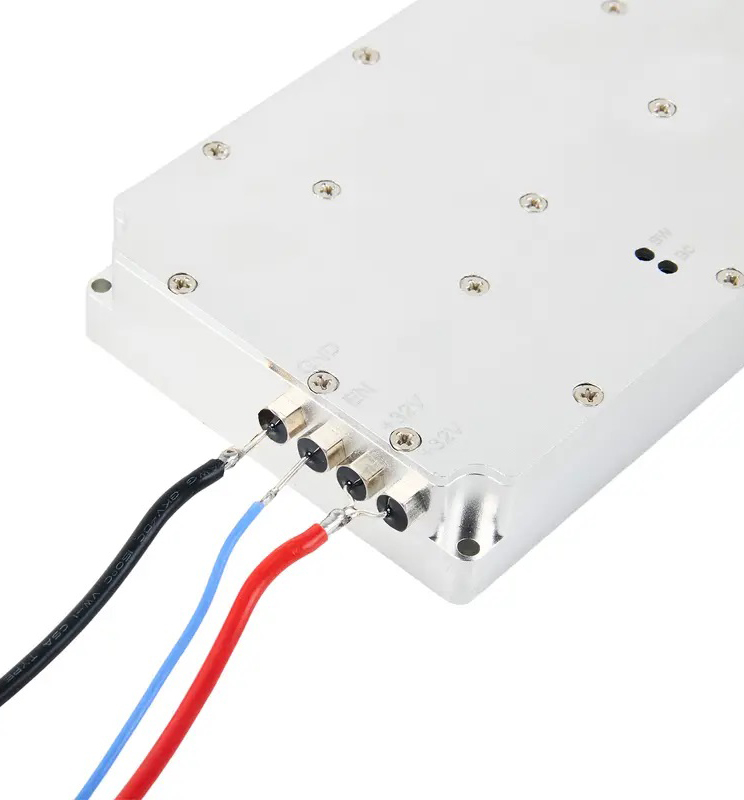

100W High-Power Drone Signal Jammer Module (840-1000MHz)
Engineered for Maximum Signal Denial: The 100W Drone Jammer Module
Our 100W High-Power Drone Jammer Module is a formidable radio frequency (RF) suppression solution designed for critical security applications. Operating across the broad 840-1000MHz spectrum—a band heavily utilized for drone remote control, telemetry, and video transmission—this module delivers intense, focused interference to disrupt unauthorized UAV operations. With a massive 100W (50dBm) output and a customizable interference source, it is built for integrators requiring reliable, high-performance drone mitigation in fixed or mobile defense systems.
Core Features & Advantages
Extreme Output Power: 100W RF power ensures a strong, effective jamming radius for reliable neutralization of drone threats.
Wide Operational Bandwidth: Covers 840MHz to 1000MHz, providing comprehensive coverage against a wide array of consumer and commercial UAV communication links.
Advanced & Customizable Source: Features a built-in high-speed noise-modulated signal source with a default 270KHz scan rate. Offers unparalleled flexibility with customization options for VCO, DDS, or SDR-based signal sources and scan rates from 100KHz to 500KHz.
Robust System Monitoring: Integrated LED indicators for power, over-voltage, and over-temperature protection, ensuring operational integrity and system safety.
High-Power Connectivity: Equipped with an N-type female RF connector for secure, low-loss connection to high-power antennas.
Durable & Compact Design: Engineered for operation in harsh environments (-20°C to +65°C). Its compact form factor (150x80x22mm) allows for integration into various platform form factors.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 840 – 1000 MHz |
| Output Power | 100W (Typical 50 ±1 dBm) |
| Analog Scan Speed | 270 KHz (Customizable 100-500 KHz) |
| Input Signal Source | Built-in High-Speed Noise-Modulated Source (Customizable: VCO, DDS, SDR) |
| Operating Voltage | 28V (Operational Range: 28-32V) |
| Operating Current | ≤ 9.2A |
| Operating Temperature | -20°C to +65°C |
| RF Connector | N-Type Female |
| Indicators | Power, Over-Voltage, Over-Temperature |
| Dimensions | 150 x 80 x 22 mm |
| Weight | Approx. 800g |
Primary Applications
This module is intended for integration into professional counter-drone (C-UAS) systems deployed to protect:
High-Security Government and Military Zones
Critical National Infrastructure (Airports, Power Stations)
Large Public Events and VIP Protection Details
Correctional Facilities and Private Corporate Campuses
