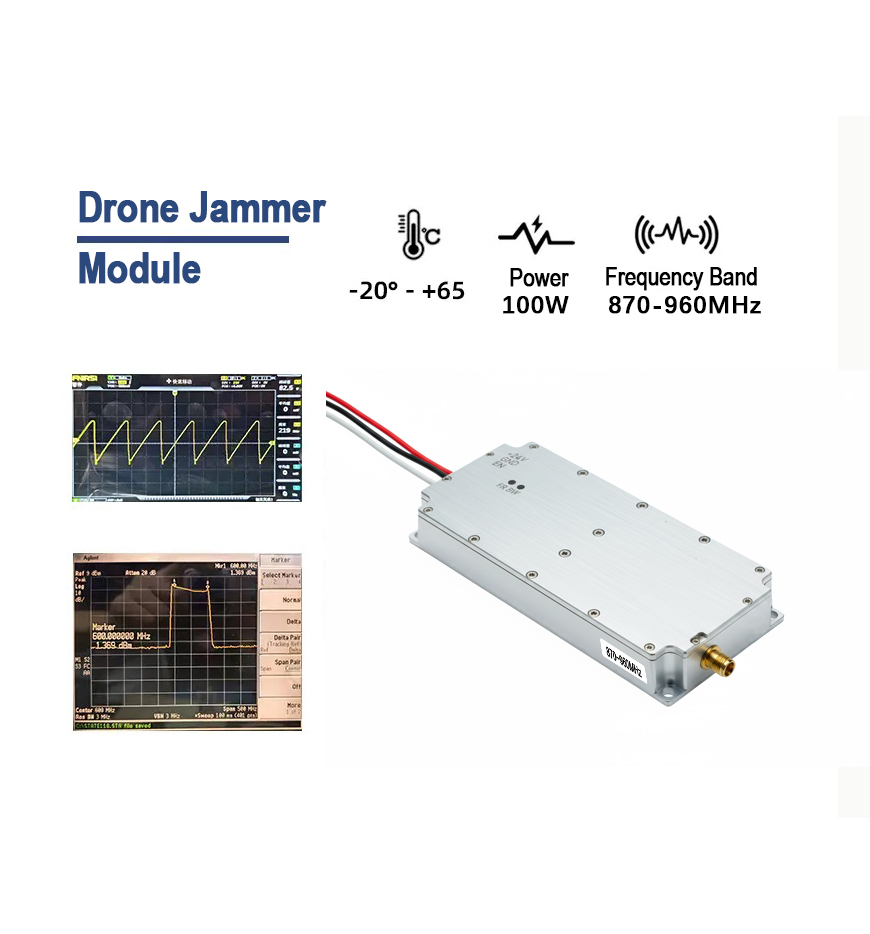

100W 870-960MHz UAV Jamming Module | Analog Signal Blocking Module for Anti-Drone Systems

100W 870~960MHz UAV Jamming Module | Integrated Analog Signal Blocking Unit This 100W 870~960MHz UAV Jamming Module is a high-power, compact RF interference component specifically designed for integration into larger counter-unmanned aerial vehicle (C-UAV) systems. It delivers powerful, broad-spectrum analog jamming signals across the 870-960MHz frequency ……

Send Inquiry

100W

Functional characteristics

100W 870~960MHz UAV Jamming Module | Integrated Analog Signal Blocking Unit

This 100W 870~960MHz UAV Jamming Module is a high-power, compact RF interference component specifically designed for integration into larger counter-unmanned aerial vehicle (C-UAV) systems. It delivers powerful, broad-spectrum analog jamming signals across the 870-960MHz frequency band, effectively disrupting common drone command, control, and telemetry links. With its built-in high-speed sweep source, integrated protection, and efficient design, this module is a reliable building block for robust drone defense solutions.

Product Overview & Key Specifications

Parameter	Typical Value / Specification
Product Name	UAV Jamming Module (Analog Interference)
Centerpiece	100W Output Power, 870~960MHz Jamming Band
Operating Frequency Band	870 ~ 960 MHz
RF Output Power	100 Watts
Output VSWR	≤ 2.0
Operating Voltage	DC 24V ~ 29V
Maximum Operating Current	12.0 A
Power Efficiency	≥ 40%
Switch Control	+5V or Open = ON / Ground (GND) = OFF
RF Output Connector	SMA Female
Jamming Source	Built-in High-Speed Frequency Sweep Generator
Protection	Built-in Absorptive VSWR Protection Circuit
Dimensions (LWH)	168.5 mm * 84.5 mm * 23 mm
Weight	0.55 kg

Core Features & Benefits

High-Power, Focused Jamming: With 100W of output power, this module provides strong, effective signal suppression across its target frequency range (870-960MHz), a band commonly used by many commercial UAVs for control and data transmission.
Integrated Sweep Source: The built-in high-speed sweep generator creates a broad analog interference signal, making it effective against frequency-hopping and other spread-spectrum technologies often employed by drones.
Robust & Protected Design: Features built-in absorptive VSWR (Voltage Standing Wave Ratio) protection, safeguarding the module from damage due to antenna mismatch or poor connection, enhancing system reliability and longevity.
High Efficiency: Offers a power efficiency of ≥ 40%, meaning more input power is converted into effective RF jamming power, reducing heat generation and improving overall energy efficiency.
Compact & Integration-Ready: Its slim form factor (168.5 x 84.5 x 23 mm) and low weight (0.55 kg) allow for flexible integration into various system chassis, portable units, or vehicle-mounted platforms.
Simple Control Interface: Easy TTL-level switch control (+5V/Open for ON, GND for OFF) facilitates straightforward integration with system controllers or manual switches.

Technical Details

This module is engineered as a dedicated, high-performance RF stage for anti-drone applications. Operating on a standard 24-29V DC power supply, it delivers its maximum jamming effect while maintaining reliable operation. The SMA female connector is the standard RF interface for connecting to external antennas or power combiners in a multi-band system.

Primary Application

This module is primarily designed as a core jamming component for integration into:

Comprehensive Drone Countermeasure (C-UAV) Systems
Fixed-Site Perimeter Protection Systems
Mobile or Vehicle-Mounted Anti-Drone Platforms
Portable Drone Defense Kits (when combined with power supply, antenna, and control unit)

Disclaimer: The use of RF jamming equipment is subject to strict regulations that vary by country and region. This product is intended for authorized, legal applications by government, military, or licensed security personnel in compliance with all local laws and regulations.

This 100W 870-960MHz Jamming Module provides system integrators with a powerful, efficient, and reliable off-the-shelf component to equip their anti-drone solutions with effective radio frequency denial capabilities.
