Home > Product > Drone jammer module > 100W > 100W LDMOS 400–500MHz Drone Jamming Module | High-Power RF Countermeasure Unit
Product Overview The 100W LDMOS 400–500MHz Drone Countermeasure Module is a high-power RF shielding and jamming unit designed for professional anti-drone and electronic countermeasure systems.Operating in the 400–500MHz frequency range, this module effectively targets UAV control and communication links commonly used in long-range and industrial drone appl……

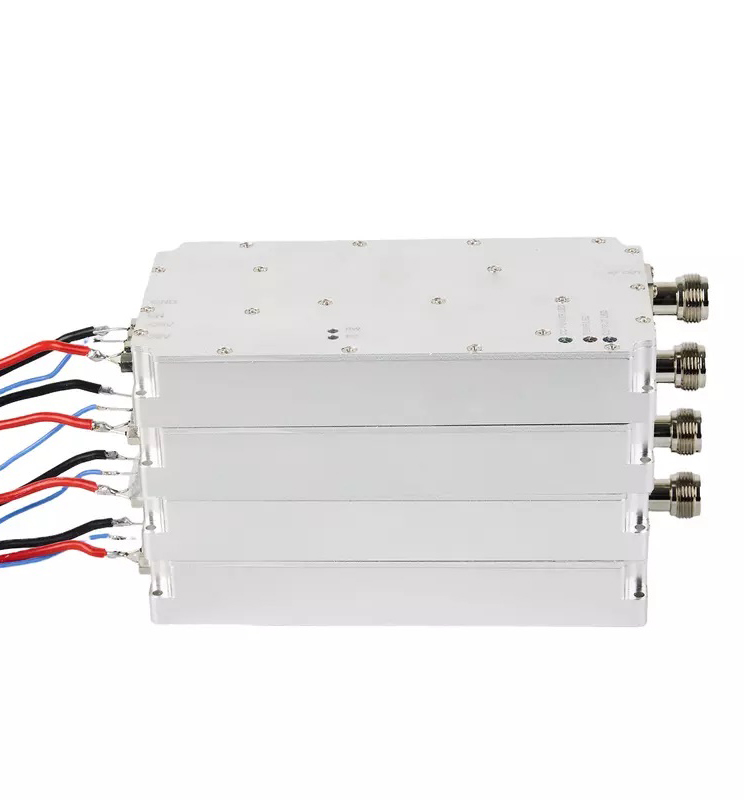

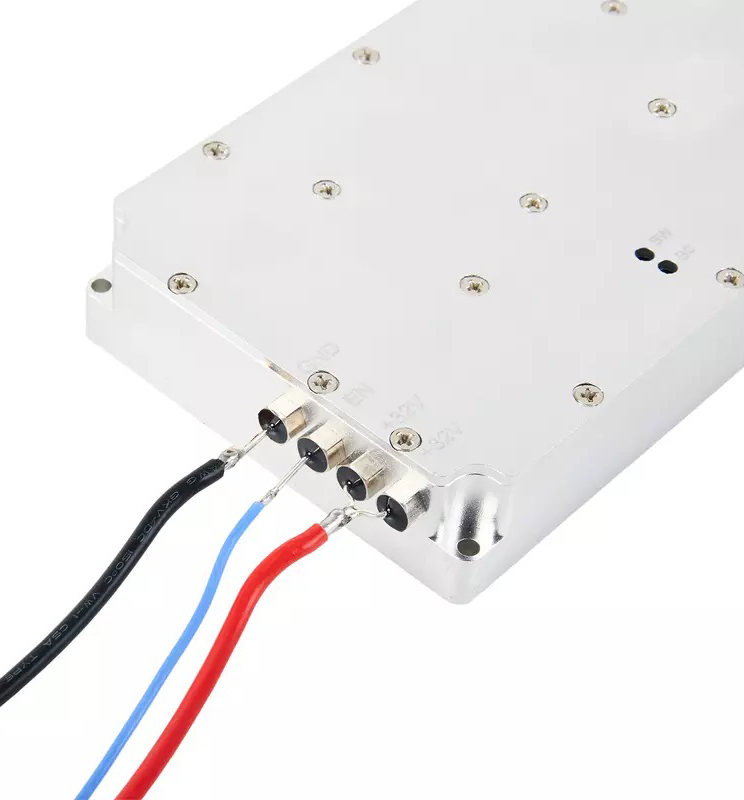

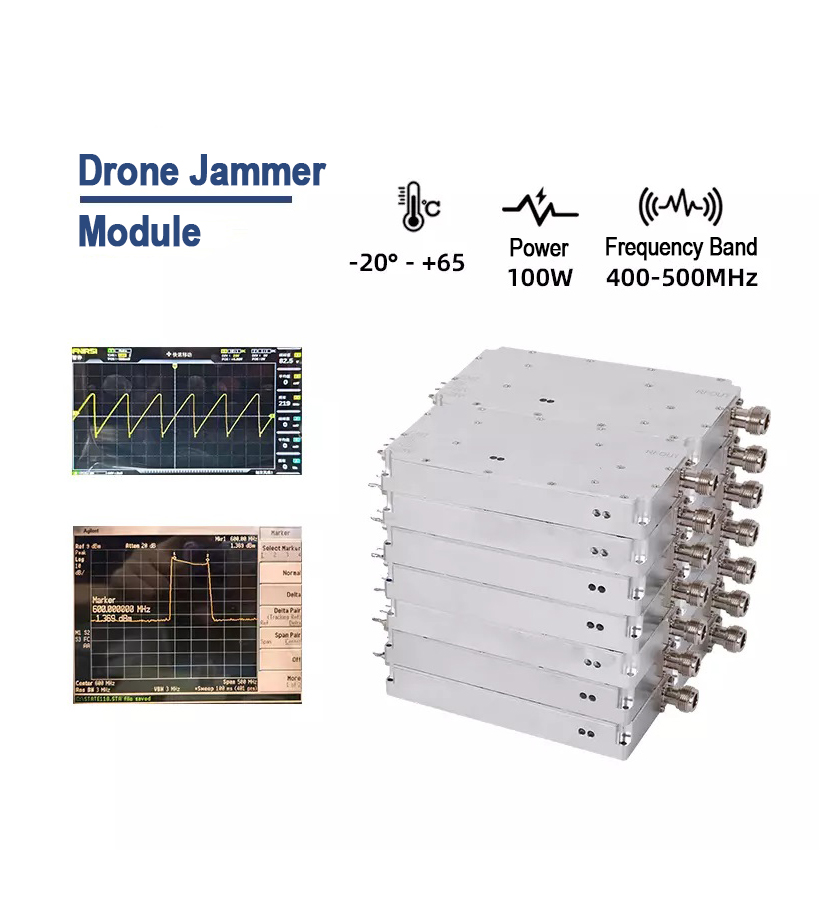

The 100W LDMOS 400–500MHz Drone Countermeasure Module is a high-power RF shielding and jamming unit designed for professional anti-drone and electronic countermeasure systems.
Operating in the 400–500MHz frequency range, this module effectively targets UAV control and communication links commonly used in long-range and industrial drone applications.
Built on LDMOS amplifier technology, the module delivers stable output power, high efficiency, and excellent thermal performance, making it suitable for continuous and demanding operational environments.
When integrated into a drone countermeasure platform, this module enables:
Strong suppression of UAV remote control signals
Disruption of low-frequency data and telemetry links
Broad-spectrum RF shielding through noise modulation
Forcing drones into signal loss, return-to-home, hovering, or emergency landing states
It provides reliable protection for sensitive airspace against unauthorized UAV intrusion.
100W High-Power RF Output (50 ±1 dBm)
LDMOS Power Amplifier Architecture for enhanced stability
400–500MHz Frequency Coverage with customization support
Built-in High-Speed Noise Modulation Source
Adjustable Scan Speed (Standard 270kHz, customizable 100–500kHz)
Multiple Signal Source Options: Noise, VCO, DDS, or SDR (customizable)
LED Status Indicators for power, over-voltage, and over-temperature
Industrial-Grade Design for long-term operation
| Parameter | Specification |
|---|---|
| Operating Frequency | 400–500MHz (Customizable) |
| RF Output Power | 100W (50 ±1 dBm) |
| Operating Voltage | 28V (Range: 28–32V) |
| Maximum Current | ≤ 9.2A |
| Scan Speed | 270kHz (Custom: 100–500kHz) |
| Signal Source | Built-in Noise Modulation |
| Optional Signal Types | VCO / DDS / SDR |
| Operating Temperature | -20°C to +65°C |
| RF Connector | N Female |
| Indicators | Power / Over-Voltage / Over-Temperature |
| Dimensions | 150 × 80 × 22 mm |
| Weight | 800 g |
Fixed-site drone countermeasure systems
Mobile and vehicle-mounted UAV jammers
Long-range drone signal shielding platforms
Security protection for critical infrastructure
Military, law enforcement, and border defense systems
The 100W LDMOS 400–500MHz UAV jamming module is designed for OEM manufacturers and system integrators.
Frequency range, scan speed, signal source type, and system configuration can be customized to meet specific project requirements, enabling seamless integration into multi-band counter-UAV solutions.
