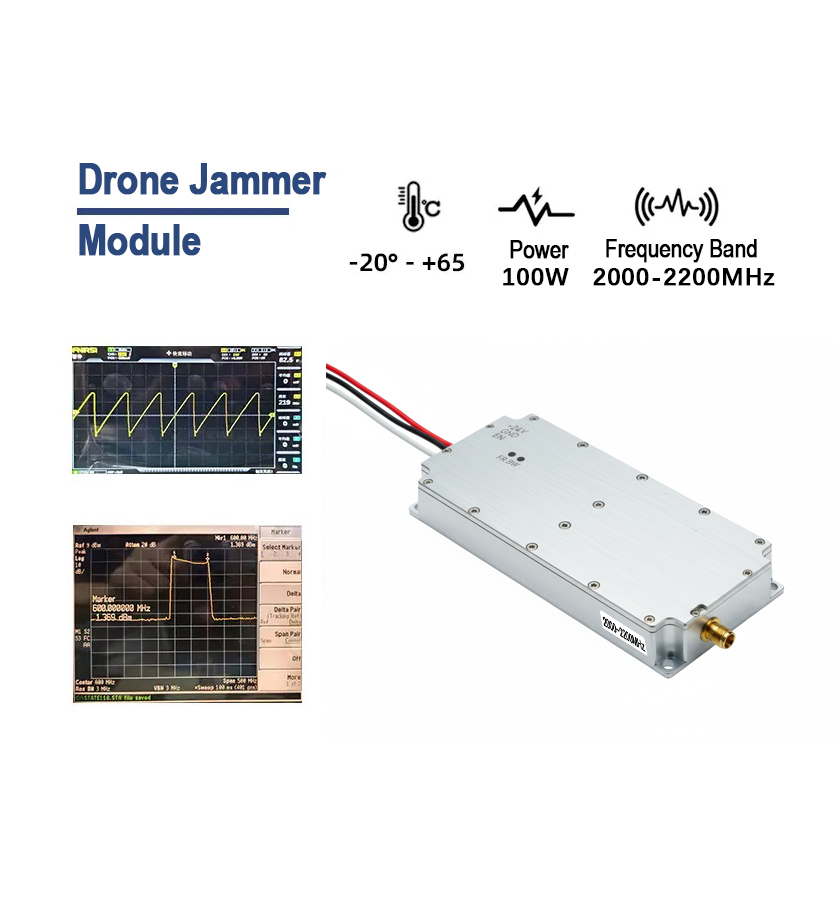

100W 2000-2200MHz High-Power Drone Jammer Module | All-in-One Analog Solution

100W High-Power Analog Drone Jammer Module for 2000-2200MHz Band Our 100W Drone Jamming Module is an integrated, high-power RF solution designed for effective counter-drone and security applications. This all-in-one unit combines a built-in high-speed sweep generator with robust output power in a compact, industry-standard form factor. It provides reliab……

Send Inquiry

100W

Functional characteristics

100W High-Power Analog Drone Jammer Module for 2000-2200MHz Band

Our 100W Drone Jamming Module is an integrated, high-power RF solution designed for effective counter-drone and security applications. This all-in-one unit combines a built-in high-speed sweep generator with robust output power in a compact, industry-standard form factor. It provides reliable, wideband analog interference across the 2000MHz to 2200MHz frequency spectrum, a range commonly used by drone control, telemetry, and video transmission links.

Engineered for performance and durability, the module features integrated absorptive VSWR protection to safeguard the amplifier under mismatched load conditions. Its high efficiency (≥40%) and low DC power requirement (24-29V) make it suitable for integration into mobile, portable, or fixed-site Counter-Unmanned Aerial System (CUAS) platforms.

Product Highlights

High Output Power: Delivers 100W of effective RF jamming power to disrupt unauthorized drone communications.
Wideband Coverage: Covers the critical 2000-2200MHz band, targeting common UAV frequencies.
All-in-One Design: Built-in high-speed analog sweep source simplifies system integration—just provide power and control.
Robust Protection: Integrated absorptive VSWR protection enhances module reliability and longevity.
Compact & Efficient: High power density in a small chassis (168.5 x 84.5 x 23mm) with ≥40% power efficiency.
Simple Control: TTL-level switch control (ON: +5V/Open, OFF: GND) for easy remote operation.

Technical Specifications

The detailed electrical and mechanical specifications of the jammer module are provided in the table below.

Parameter	Typical Value / Specification
Operating Frequency	2000 – 2200 MHz
RF Output Power	100 W
Output VSWR	≤ 2.0
Operating Voltage	DC 24V – 29V
Maximum Operating Current	12.0 A
Power Efficiency	≥ 40%
Switch Control	+5V or Open = ON / Connect to GND = OFF
RF Output Connector	SMA Female
Jamming Source	Built-in High-Speed Sweep Generator
VSWR Protection	Built-in Absorptive Type
Dimensions (LWH)	168.5 * 84.5 * 23 mm
Weight	0.55 kg

Typical Applications

This module serves as a core jamming component for various security and defense systems, including:

Portable Counter-Drone (CUAS) Jamming Systems
Vehicle-Mounted Mobile Anti-UAV Platforms
Fixed-Site Perimeter Security for Critical Infrastructure
Drone Denial Zone Establishment for Events
Integrated RF Jamming Suites

Note: Compliance with local and national regulations regarding the use of jamming equipment is the sole responsibility of the end-user or system integrator.
