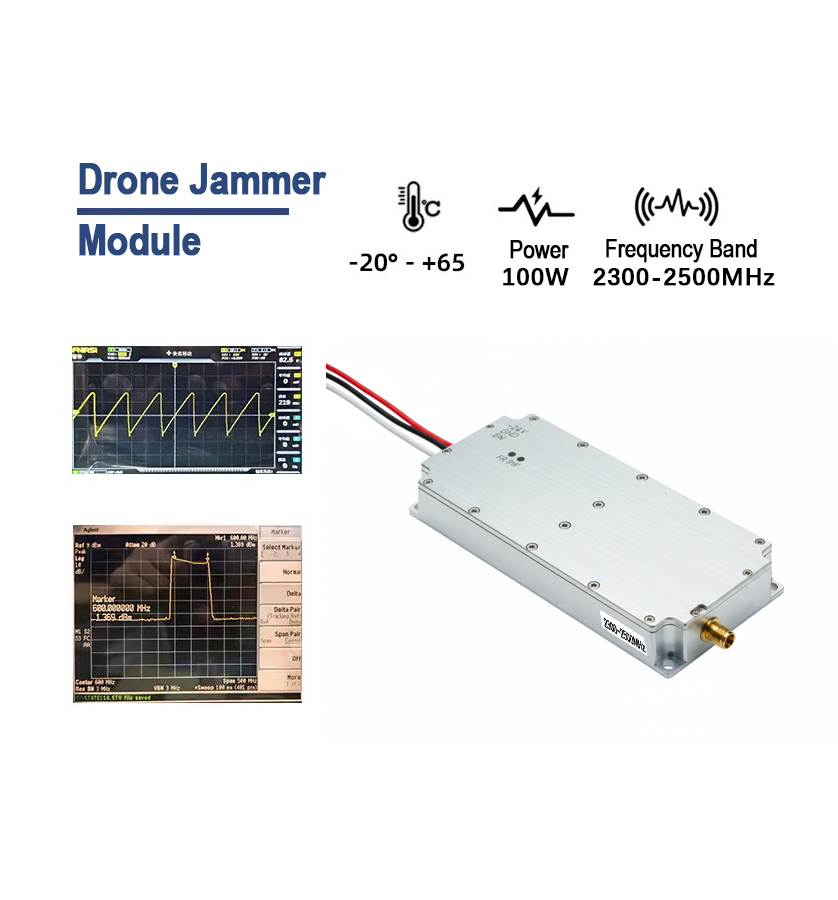

100W RF Jammer Module for 2300-2500MHz | UAV Countermeasure with Sweep Source

100W Jammer for 2300-2500MHz Band This 100W RF jamming module is a specialized, high-power solution tailored for the 2300-2500MHz frequency range. It integrates a complete analog jamming system into a single compact unit, designed to effectively disrupt and deny unauthorized communications and control signals within its operational bandwidth. Ideal for cou……

Send Inquiry

100W

Functional characteristics

100W Jammer for 2300-2500MHz Band

This 100W RF jamming module is a specialized, high-power solution tailored for the 2300-2500MHz frequency range. It integrates a complete analog jamming system into a single compact unit, designed to effectively disrupt and deny unauthorized communications and control signals within its operational bandwidth. Ideal for counter-UAS (Unmanned Aerial Systems) and spectrum security applications, it combines substantial output power with critical protective features for reliable field deployment.

Primary Technical Specifications

Parameter	Typical Value / Specification
Target Frequency Band	2300 – 2500 MHz
Output Power	100 Watts
Output VSWR	≤ 2.0
DC Operating Voltage	24V to 29V
Max Current Draw	12.0 A
Power Efficiency	≥ 40%
TTL Control Signal	On: +5V/Open	Off: Ground
RF Output Connector	SMA Female
Integrated Source	High-Speed Sweep Generator
Circuit Protection	Built-in Absorptive VSWR Protection
Module Dimensions	168.5 x 84.5 x 23 mm
Unit Weight	0.55 kg

Key Product Highlights

Focused Spectrum Coverage: Specifically engineered for the 2.3-2.5 GHz band, a critical range for various wireless data links and potential UAV systems.
High-Power, Integrated Design: Delivers 100W of output power from a self-contained unit housing both the sweep signal source and the robust final amplifier stage.
Enhanced Operational Reliability: The internal absorptive VSWR protection circuitry safeguards the amplifier against reflective damage caused by antenna mismatch or faults, ensuring higher system uptime.
Optimized for Integration: The compact, shielded metal package, standard control interface, and SMA output allow for straightforward implementation into custom countermeasure platforms.

Application Scenarios

This module serves as a core jamming component in systems designed for:

Counter-Drone (C-UAS) Operations: Neutralizing hostile or intrusive drones operating in the 2.4GHz spectrum.
Wireless Spectrum Denial: Securing sensitive perimeters by controlling the RF environment in the specified band.
Mobile & Fixed Security Platforms: Can be deployed in vehicle-mounted systems or at static checkpoints for persistent area defense.
Testing & Evaluation: Used as a controlled high-power RF source for vulnerability assessments of communication systems.

Conclusion

Providing dedicated, high-power jamming capability in the 2300-2500MHz range, this module is a potent tool for electronic defense and security missions. Its all-in-one architecture, protective features, and efficient design make it a reliable and effective choice for integrators building sophisticated countermeasure solutions against modern radio-frequency threats.
