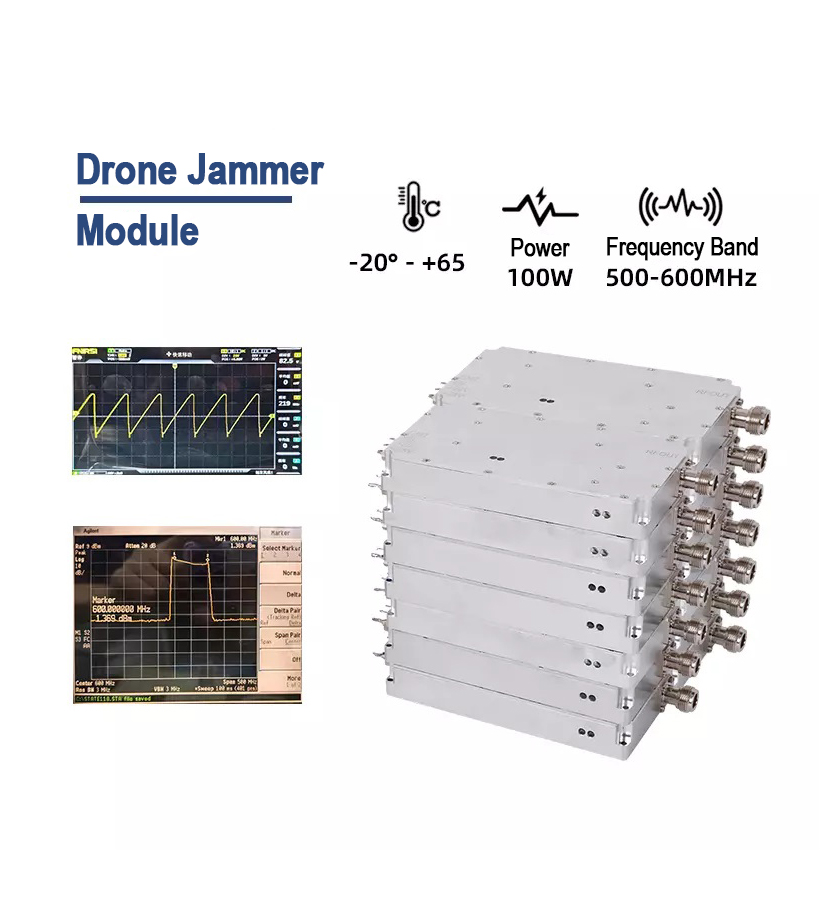

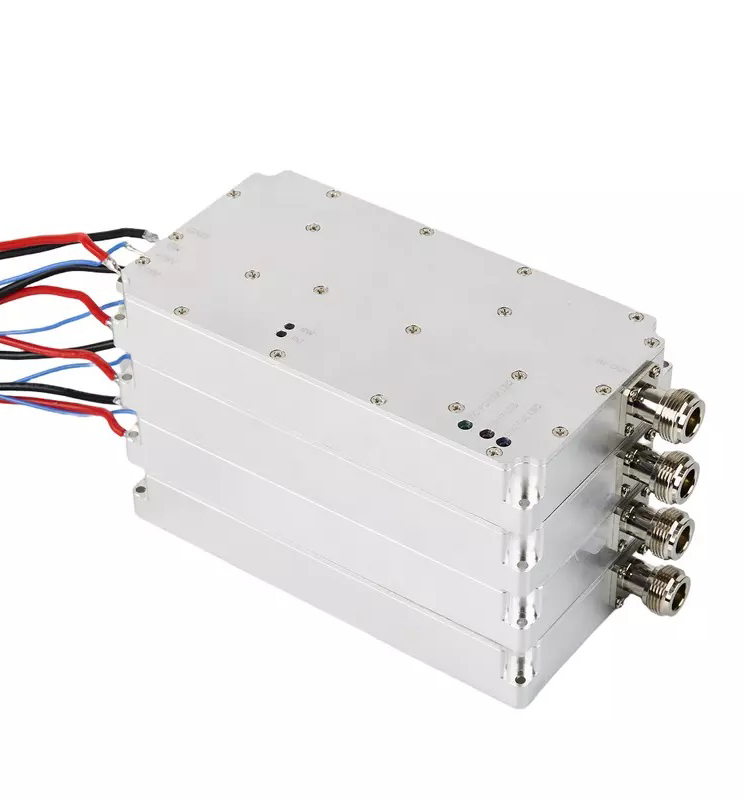

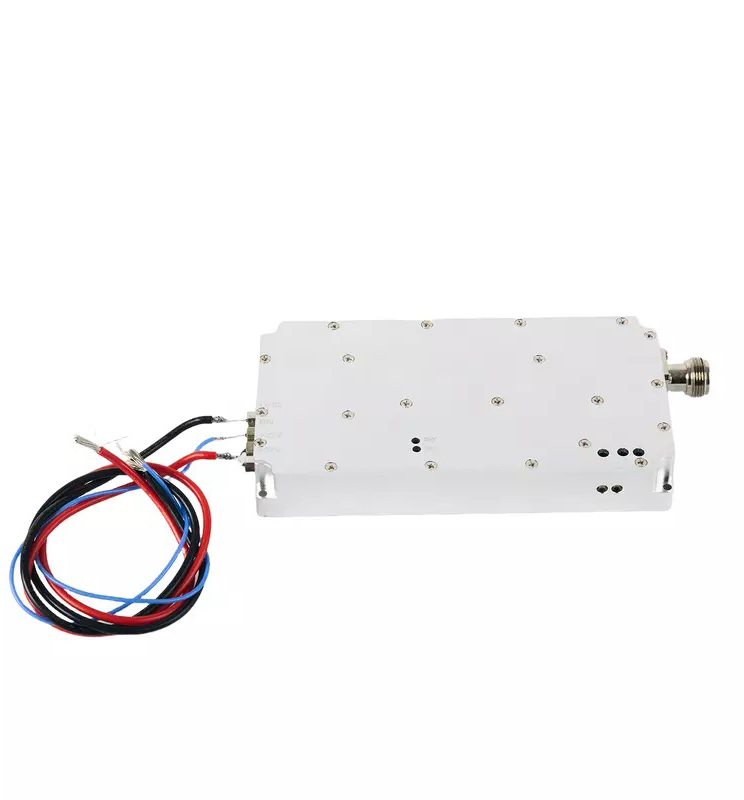

100W LDMOS 500–600MHz Drone Jamming Module | RF Shielding Counter-UAV Module

Product Introduction The 100W LDMOS 500–600MHz Drone Countermeasure Module is a high-power RF shielding solution developed for advanced counter-UAV and electronic defense systems.Operating in the 500–600MHz frequency band, this module targets UAV control, telemetry, and low-frequency communication links used by professional and long-range drones. By adopti……

Send Inquiry

100W

Functional characteristics

Product Introduction

The 100W LDMOS 500–600MHz Drone Countermeasure Module is a high-power RF shielding solution developed for advanced counter-UAV and electronic defense systems.
Operating in the 500–600MHz frequency band, this module targets UAV control, telemetry, and low-frequency communication links used by professional and long-range drones.

By adopting LDMOS power amplifier technology, the module ensures high output stability, strong linearity, and reliable thermal performance, supporting continuous operation in demanding environments.

Operational Effectiveness

When deployed within an anti-drone platform, the module is capable of:

Suppressing UAV remote control channels
Disrupting telemetry and low-band data links
Providing broadband RF shielding via noise modulation
Forcing drones into signal loss, return, hover, or emergency landing modes

This enables effective airspace denial for protected zones and critical assets.

Technical Highlights

100W RF Output Power (50 ±1 dBm)
LDMOS Amplifier Design for high reliability and efficiency
500–600MHz Frequency Coverage, customizable on request
Built-in High-Speed Noise Modulation Source
Adjustable Scan Speed: standard 270kHz, optional 100–500kHz
Multiple Signal Source Options: Noise / VCO / DDS / SDR
LED Status Indicators: power, over-voltage, over-temperature
Rugged Industrial Construction for long-term operation

Technical Specifications

Parameter	Specification
Operating Frequency	500–600MHz (Customizable)
RF Output Power	100W (50 ±1 dBm)
Operating Voltage	28V (Range: 28–32V)
Maximum Current	≤ 9.2A
Scan Speed	270kHz (Optional 100–500kHz)
Signal Source	Built-in Noise Modulation
Optional Signal Types	VCO / DDS / SDR
Operating Temperature	-20°C to +65°C
RF Connector	N Female
Status Indicators	Power / Over-Voltage / Over-Temperature
Dimensions	150 × 80 × 22 mm
Weight	800 g

Application Scenarios

Fixed and semi-fixed counter-drone installations
Vehicle-mounted UAV jamming systems
RF shielding systems for sensitive facilities
Long-range drone signal denial platforms
Military, law enforcement, and border protection solutions

Customization & OEM Integration

The 100W LDMOS 500–600MHz UAV jamming module is designed for OEM manufacturers and system integrators.
Custom frequency ranges, scan speeds, signal sources, and system interfaces can be tailored to specific operational requirements, enabling seamless integration into multi-band, layered counter-UAV systems.
