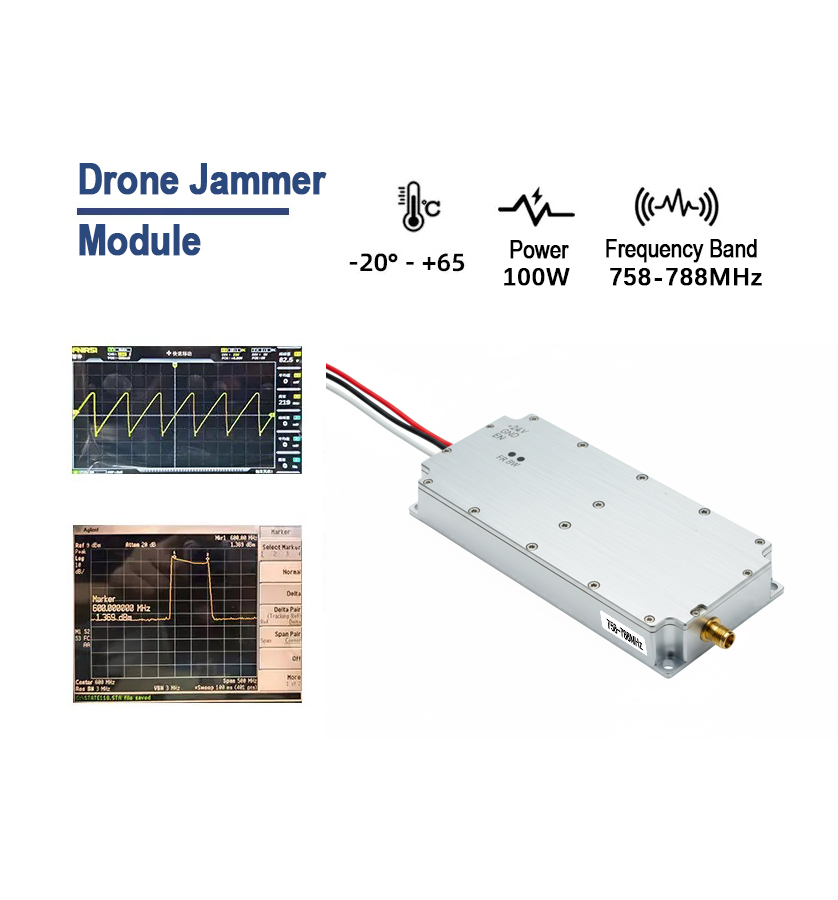

100W 758-788MHz Drone Signal Jammer | High-Power Analog Module with SWR Protection

100W High-Power Jamming Module for 758-788MHz Band This 100W analog jammer module delivers concentrated RF output to neutralize UAV communications within the 758-788MHz spectrum. Designed for system-critical reliability, it incorporates built-in protective features making it a robust core component for custom counter-drone platforms. Key Features & Des……

Send Inquiry

100W

Functional characteristics

100W High-Power Jamming Module for 758-788MHz Band

This 100W analog jammer module delivers concentrated RF output to neutralize UAV communications within the 758-788MHz spectrum. Designed for system-critical reliability, it incorporates built-in protective features making it a robust core component for custom counter-drone platforms.

Key Features & Design Benefits

Targeted Jamming in Specialized Band: Precisely disrupts signals in the 758-788MHz range, a band utilized for specific regional communications and potential drone links, ensuring focused countermeasure efficacy.
High Power with Integrated Protection: Generates 100W of jamming power, supported by a built-in absorptive SWR (Standing Wave Ratio) protection circuit. This safeguards the module from antenna mismatch failures, enhancing field durability and operational safety.
Compact, All-in-One Solution: The integrated high-speed sweeping source provides a complete, ready-to-deploy jamming core, significantly simplifying system integration and reducing external component dependencies.
Designed for Demanding Integration: Housed in a compact, robust chassis, it is engineered for reliable performance in both mobile and fixed-site counter-drone applications.

Technical Specifications

Parameter	Specification
Operating Frequency	758 – 788 MHz
RF Output Power	100W
Output VSWR	≤ 2.0
DC Operating Voltage	24V – 29V
Max. Operating Current	12.0 A
Power Efficiency	≥ 40%
Control Logic (TTL)	ON: +5V / Open	OFF: Connect to GND
RF Connector	SMA Female
Jamming Source	Built-in High-Speed Sweeping Generator
Protection	Built-in Absorptive SWR Protection
Dimensions (LWH)	168.5 x 84.5 x 23 mm
Weight	0.55 kg

Applications

This module is engineered as a key component for professional Counter-Unmanned Aerial Vehicle (C-UAV) systems requiring robust performance in its target band:

Fixed-site security for sensitive installations.
Integrated mobile counter-drone platforms.
Custom signal denial systems for specialized frequency requirements.

Deployment Ready

With its integrated source and protective circuitry, the module ensures reliable out-of-the-box functionality. Connection to a suitable antenna, power supply, and control unit enables immediate establishment of a powerful local jamming zone.
