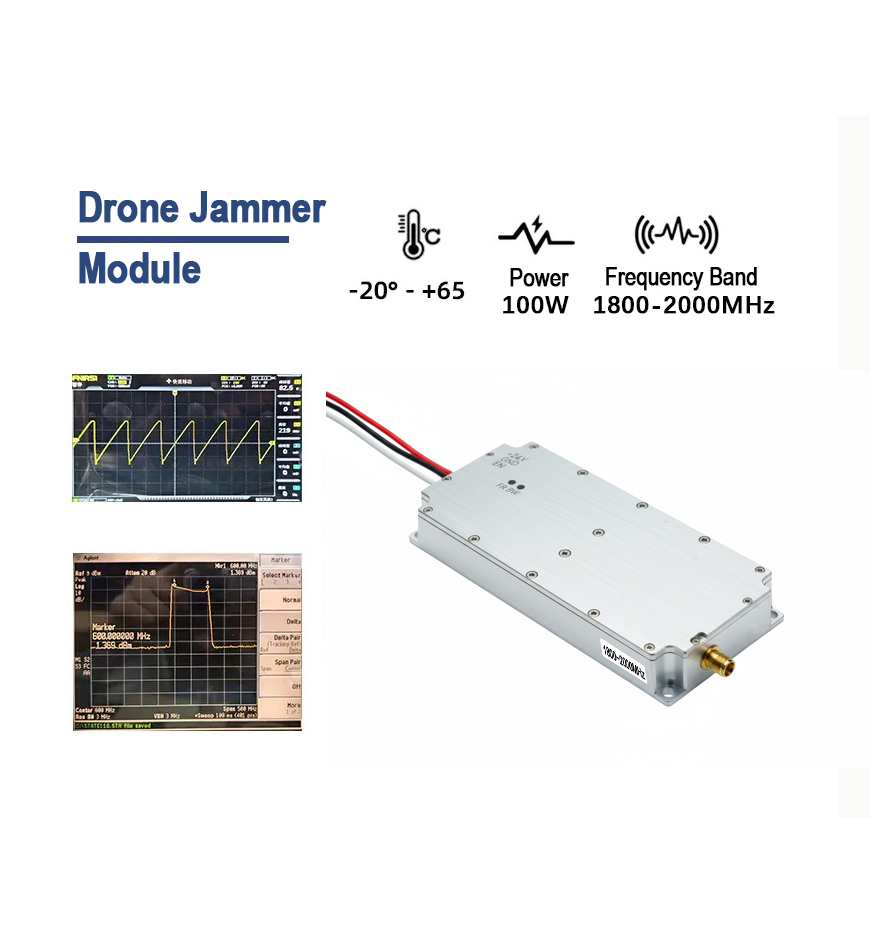

100W RF Jamming Module (1800-2000MHz) | High-Power Drone Countermeasure Module

100W High-Power RF Jamming Module (1800-2000MHz) Product Overview The 100W 1800-2000MHz RF Jamming Module is a high-performance, integrated analog jamming module designed for demanding electronic countermeasure (ECM) and signal denial applications. Operating within the 1800-2000MHz frequency band, this compact yet powerful unit delivers 100W of saturated o……

Send Inquiry

100W

Functional characteristics

100W High-Power RF Jamming Module (1800-2000MHz)

Product Overview

The 100W 1800-2000MHz RF Jamming Module is a high-performance, integrated analog jamming module designed for demanding electronic countermeasure (ECM) and signal denial applications. Operating within the 1800-2000MHz frequency band, this compact yet powerful unit delivers 100W of saturated output power, making it highly effective for disrupting drone control links, 4G LTE communications, and other RF-based systems within this spectrum.

This all-in-one module incorporates a built-in high-speed sweeping signal source and robust protection circuitry, providing a reliable and ready-to-integrate RF core for custom countermeasure systems, portable jammers, or fixed-site denial platforms.

Key Features

High Output Power: Delivers a robust 100W of RF output power for effective long-range signal disruption.
Targeted Frequency Band: Covers the 1800-2000MHz range, critical for countering specific drone models and commercial communication signals (e.g., 4G LTE).
Integrated Solution: Comes with a built-in high-speed sweeping analog interference source, simplifying system design.
Built-in Protection: Features integrated absorptive VSWR protection to safeguard the module against antenna mismatch or faults.
Compact & Efficient: A slim form factor (168.5 x 84.5 x 23 mm) and power efficiency ≥40% enable integration into space-constrained platforms.
Simple Control: Easy TTL-level logic control via the switch interface (+5V/Open for ON, GND for OFF).

Technical Specifications

The table below details the comprehensive technical parameters of the jamming module.

Parameter	Specification	Notes / Details
Model	High-Power Analog Jamming Module	–
RF Performance
Operating Frequency	1800 – 2000 MHz	–
Output Power	100W (Typical, saturated)	–
Output VSWR	≤ 2.0	–
RF Connector	SMA Female	–
Internal Source	Built-in High-Speed Sweeping Source	Analog interference generation.
Electrical Characteristics
Operating Voltage	DC 24V – 29V	Recommended range.
Maximum Operating Current	12.0 A	–
Power Efficiency	≥ 40%	–
Control Interface
Switch Control	ON: +5V or Open Circuit OFF: Connect to GND	TTL-compatible control logic.
Protection
VSWR Protection	Integrated Absorptive Protection Circuit	Protects the power amplifier.
Physical Specifications
Dimensions (L x W x H)	168.5 mm x 84.5 mm x 23 mm	Compact design.
Weight	0.55 kg	Approximately.

Applications

This module serves as the core RF component for various electronic defense and security systems:

Counter-Unmanned Aerial Systems (C-UAS): Integration into drone jammers to disrupt control and telemetry links in the 1.8-2.0 GHz band.
Communication Denial: Used in platforms requiring localized disruption of 4G LTE and similar wireless communication networks.
Custom ECM Systems: Acts as a high-power output stage for specialized signal jamming and electronic attack projects.
Security & Tactical Operations: Deployment in mobile or fixed-site systems for force protection and secure perimeter establishment.
