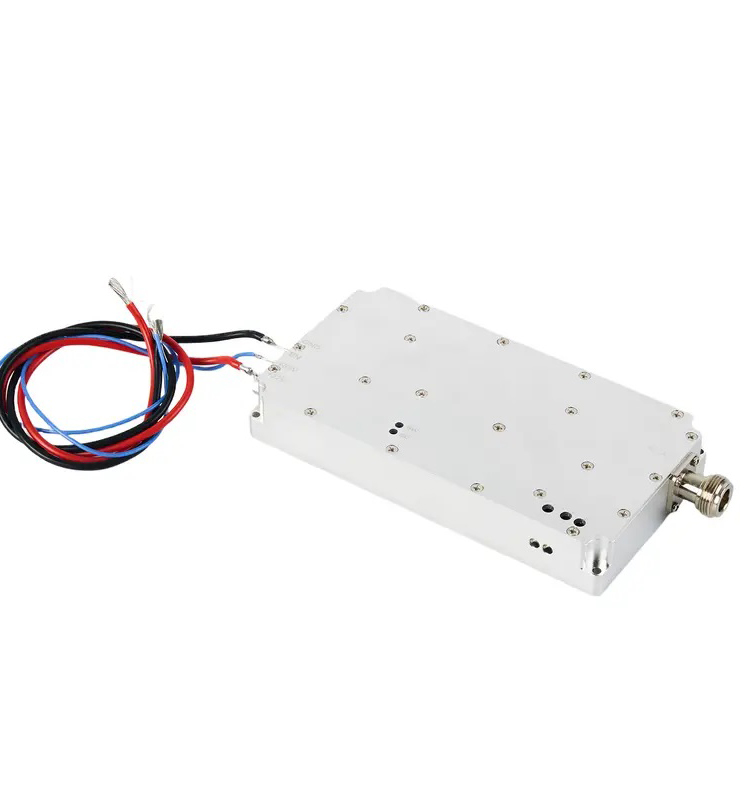

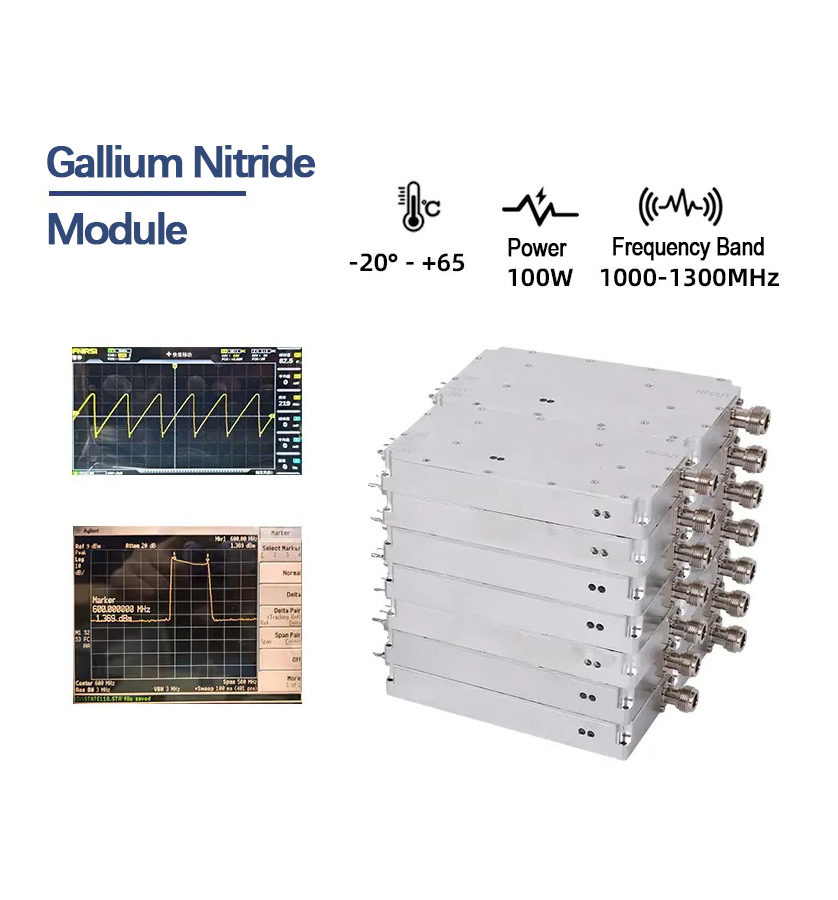

100W GaN Drone Jammer Module | 1000‑1300MHz Broadband RF Interference Module

Powerful. Precise. Professional – 100W GaN Drone Jammer Module for 1000‑1300MHz Band Introducing our high‑performance 100W drone jamming module, engineered with advanced Gallium Nitride (GaN) on Silicon Carbide technology. Designed for demanding RF suppression and anti‑drone operations, this module delivers instant wideband coverage across 1000–1300MHz wit……

Send Inquiry

100W

Functional characteristics

Powerful. Precise. Professional – 100W GaN Drone Jammer Module for 1000‑1300MHz Band

Introducing our high‑performance 100W drone jamming module, engineered with advanced Gallium Nitride (GaN) on Silicon Carbide technology. Designed for demanding RF suppression and anti‑drone operations, this module delivers instant wideband coverage across 1000–1300MHz with exceptional power efficiency and thermal management. Its rugged, compact design ensures reliable performance in field deployments, while customizable options allow integration into specialized electronic warfare and security systems.

Key Features & Benefits
- AB‑Class GaN Design – Offers higher efficiency, better linearity, and superior thermal performance compared to conventional solutions.
- Instant Wideband Coverage – Effective across the entire 1000‑1300MHz spectrum, ideal for countering drone signals and other RF threats.
- Compact & Lightweight – Measures only 150×80×22mm and weighs 800g, enabling easy integration into portable or fixed setups.
- High Reliability & Ruggedness – Built with patented thermal management on a copper carrier, operating reliably from -20°C to +65°C.
- Easy Integration – 50‑ohm input/output impedance, N‑type female connectors, and clear LED indicators for power, over‑voltage, and over‑temperature status.
- Fully Customizable – Tailor scanning speed (100‑500KHz), signal source (VCO, DDS, SDR), and voltage input to match your specific requirements.
Technical Specifications
- Frequency Range: 1000 – 1300 MHz
- Output Power: 100W (50±1 dBm)
- Operating Voltage: 28V (28‑32V range)
- Current Consumption: ≤9.2A
- Scanning Speed: 270KHz (customizable 100‑500KHz)
- Signal Source: Built‑in high‑speed noise‑modulated source (optional VCO/DDS/SDR)
- Connector: N‑type female
- Dimensions: 150 × 80 × 22 mm
- Weight: 800g
- Operating Temperature: -20°C to +65°C
Customization Options

We understand that every mission has unique needs. This module can be customized with:
- Adjustable scanning speeds between 100–500KHz.
- Alternative signal sources (VCO, DDS, SDR).
- Voltage and interface adaptations for seamless system integration.
Applications
- Counter‑UAS (drone) defense systems
- Secure facility protection
- Military & law enforcement RF suppression
- Communication channel testing & electronic warfare training
- Custom signal‑jamming solutions
Why Choose Our GaN Jammer Module?

By leveraging GaN technology, this module provides higher power density, faster switching, and better heat dissipation than traditional designs. Its robust construction and intelligent thermal management ensure continuous operation under harsh conditions. Whether for standard drone threat suppression or tailored electronic countermeasures, this module offers a future‑proof, high‑power RF solution.

Order Now or Request Customization

Contact our team to discuss your project requirements. We provide tailored solutions that match your frequency, power, and form‑factor needs with rapid prototyping and reliable support.
