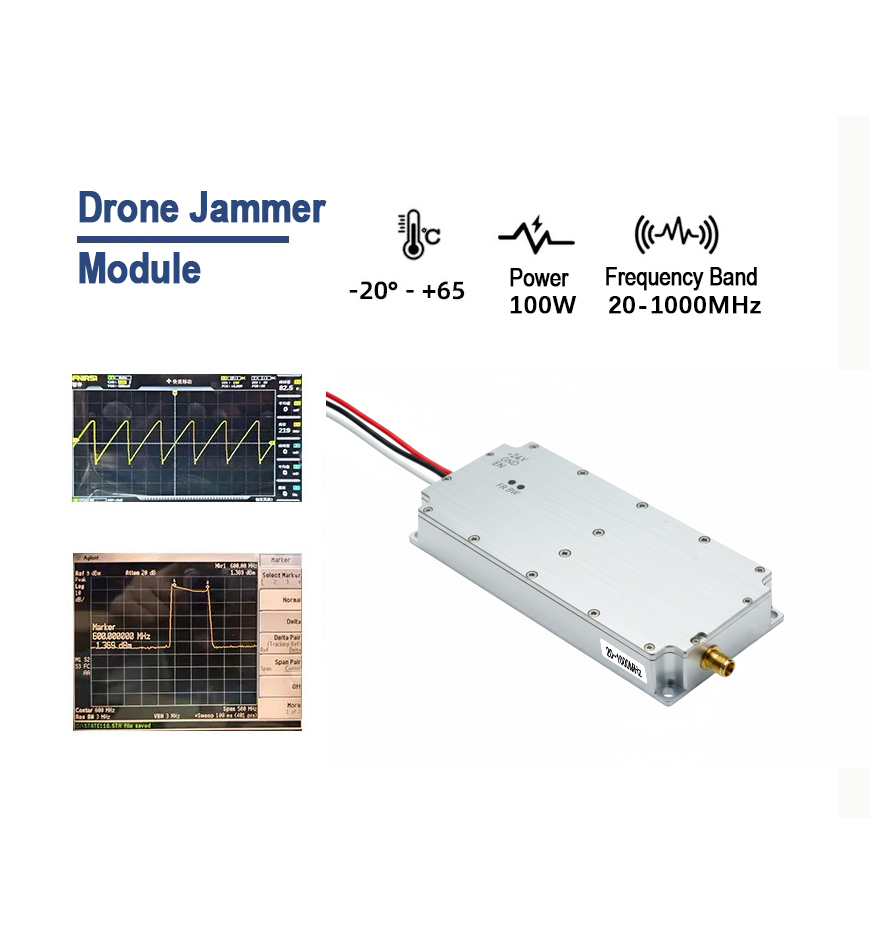

100W 20–1000MHz Drone Jamming Module | Wideband Analog Interference Integrated Unit

100W 20–1000MHz Drone Jamming Module Wideband Analog Interference Integrated Unit This 100W wideband drone jamming module is designed for professional counter-UAV systems requiring flexible frequency coverage and stable RF output. With a customizable working band anywhere between 20MHz and 1000MHz, it offers strong adaptability for multi-scenario deploymen……

Send Inquiry

100W

Functional characteristics

100W 20–1000MHz Drone Jamming Module

Wideband Analog Interference Integrated Unit

This 100W wideband drone jamming module is designed for professional counter-UAV systems requiring flexible frequency coverage and stable RF output. With a customizable working band anywhere between 20MHz and 1000MHz, it offers strong adaptability for multi-scenario deployment.

Q1: What frequency range does this module support?

The module operates within 20–1000MHz, and any specific sub-band within this range can be customized according to project requirements. This makes it suitable for multi-band or specialized counter-drone systems.

Q2: What is the output power and performance level?

It delivers a stable 100W output power with an output VSWR ≤2.0, ensuring reliable RF transmission and consistent interference performance.

Q3: What type of interference source is used?

The module integrates a built-in high-speed sweep signal source, enabling analog sweeping interference across the selected frequency band. This integrated design simplifies system development and installation.

Q4: What are the electrical requirements?

The unit operates on DC24V–29V input and supports efficient power conversion with working efficiency ≥40%. Maximum working current is 12A.

Q5: How is the module controlled and connected?

Switch control: +5V or floating (ON), grounding (OFF)
RF output connector: SMA Female
Compact structure for easy integration

Technical Specifications

Parameter	Typical Value
Working Frequency	20–1000MHz (customizable within range)
Output Power	100W
Output VSWR	≤2.0
Working Voltage	DC24V–29V
Max Working Current	12.0A
Efficiency	≥40%
Switch Control	+5V or floating ON / Ground OFF
RF Output Connector	SMA Female
Interference Source	Built-in high-speed sweep source
Dimensions	158.5 × 93.5 × 24 mm
Weight	0.55 kg

Q6: Where can this module be used?

This wideband 100W drone jammer module is suitable for:

Fixed-site counter-UAV systems
Vehicle-mounted drone defense units
Multi-band RF shielding platforms
Integrated anti-drone security solutions

Q7: Does it support customization?

Yes. The module allows:

Custom frequency segment selection (within 20–1000MHz)
Integration support for system developers
Flexible control configuration

Conclusion

The 100W 20–1000MHz Drone Jamming Module combines wideband flexibility, integrated analog sweep interference, and strong output power in a compact design. It is a reliable RF building block for advanced counter-drone systems requiring customizable frequency coverage and stable operational performance.
