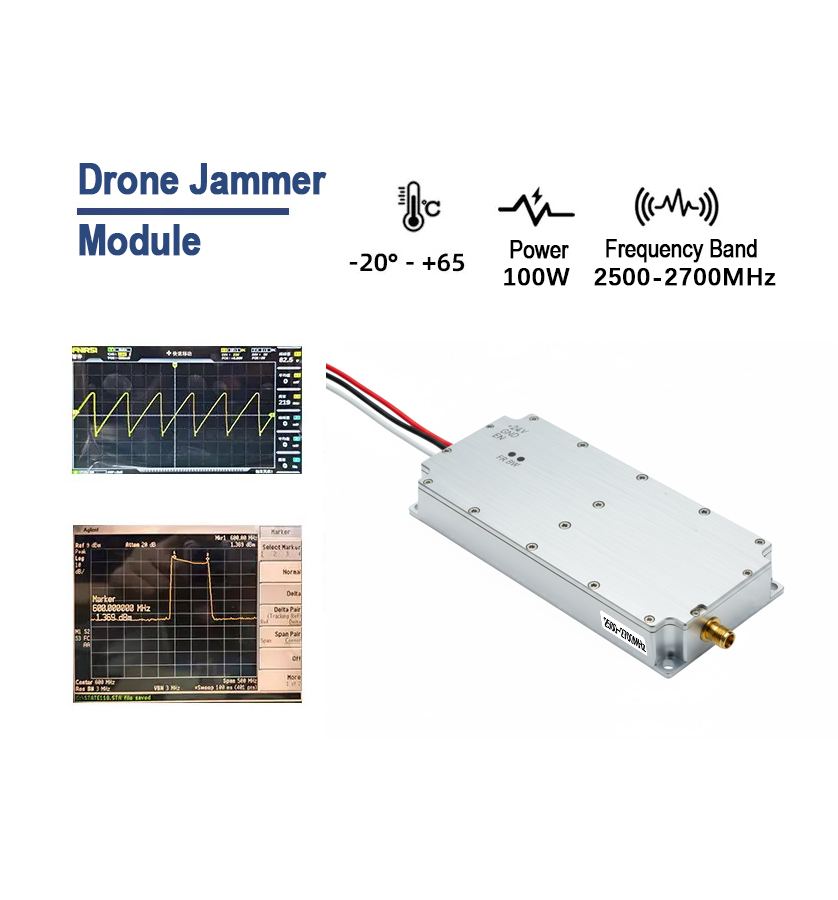

100W 2500-2700MHz Drone Jammer Module | High-Power 2.5GHz Signal Blocker

Reliable 100W Jamming Power for the 2.5-2.7 GHz Spectrum This 100W analog jammer module delivers decisive signal denial in the 2500-2700MHz band, a frequency range critical for various wireless data links. Engineered for Counter-Unmanned Aerial System (C-UAS) integration, it combines high output power with essential protective features in a single, robust ……

Send Inquiry

100W

Functional characteristics

Reliable 100W Jamming Power for the 2.5-2.7 GHz Spectrum

This 100W analog jammer module delivers decisive signal denial in the 2500-2700MHz band, a frequency range critical for various wireless data links. Engineered for Counter-Unmanned Aerial System (C-UAS) integration, it combines high output power with essential protective features in a single, robust unit, ensuring dependable performance for neutralizing unauthorized drone operations.

Engineered for Effective & Secure Operation

Targets Key ISM/Wi-Fi Extended Band: Provides effective jamming against threats utilizing the 2.5-2.7 GHz spectrum, commonly employed for Wi-Fi extensions, certain drone telemetry, and other data transmissions.
Integrated Protection for Field Reliability: The built-in absorptive SWR (Standing Wave Ratio) protection circuit is a critical safeguard. It automatically protects the module’s final amplifier stage from damage due to antenna malfunctions or mismatches, significantly enhancing system uptime and durability in demanding conditions.
Complete, Simplified Solution: By incorporating a high-speed sweeping signal source, this module eliminates the need for an external RF generator. This all-in-one design reduces system complexity, saves space, and accelerates your project integration timeline.
Robust Construction: Housed in a solid metal chassis, it is built to perform reliably in both mobile deployments and fixed-site installations.

Technical Specifications

Feature	Specification
Jamming Frequency Range	2500 – 2700 MHz
RF Output Power	100W
Output VSWR	≤ 2.0
DC Operating Voltage	24V – 29V
Maximum Current Draw	12.0 A
Typical Power Efficiency	≥ 40%
Control Interface (TTL)	ON: +5V / Open Circuit	OFF: Connect to Ground
RF Output Port	SMA Female
Integrated Jamming Source	High-Speed Sweeping Generator
Key Protection Feature	Built-in Absorptive SWR Protection Circuit
Module Dimensions	168.5 x 84.5 x 23 mm
Weight	0.55 kg

Typical Integration Applications

This module serves as the core jamming component for professional security and defense systems, including:

Perimeter Defense Systems: Protecting critical infrastructure, government facilities, or private venues from drone intrusions.
Mobile Counter-Drone Platforms: Integrated into vehicles for tactical security teams or event protection units.
Custom Signal Denial Solutions: As a key element in systems designed for specific frequency band suppression.

Deployment Ready

The module is designed for straightforward integration. Simply connect it to a suitable DC power supply (24-29V), provide a TTL-level control signal for activation, and attach a properly tuned antenna to establish an effective jamming zone.
