100W GaN Anti-Drone Jamming Module 2400–2500MHz | Custom RF Countermeasure Module

100W GaN Anti-Drone Jamming Module (2400–2500MHz) Product Overview The 100W GaN Anti-Drone Jamming Module (2400–2500MHz) is a high-performance RF countermeasure solution designed for professional UAV defense systems. Operating in the critical 2.4GHz ISM band, this module effectively disrupts drone communication and control links, making it ideal for anti-d……

Send Inquiry

100W

Functional characteristics

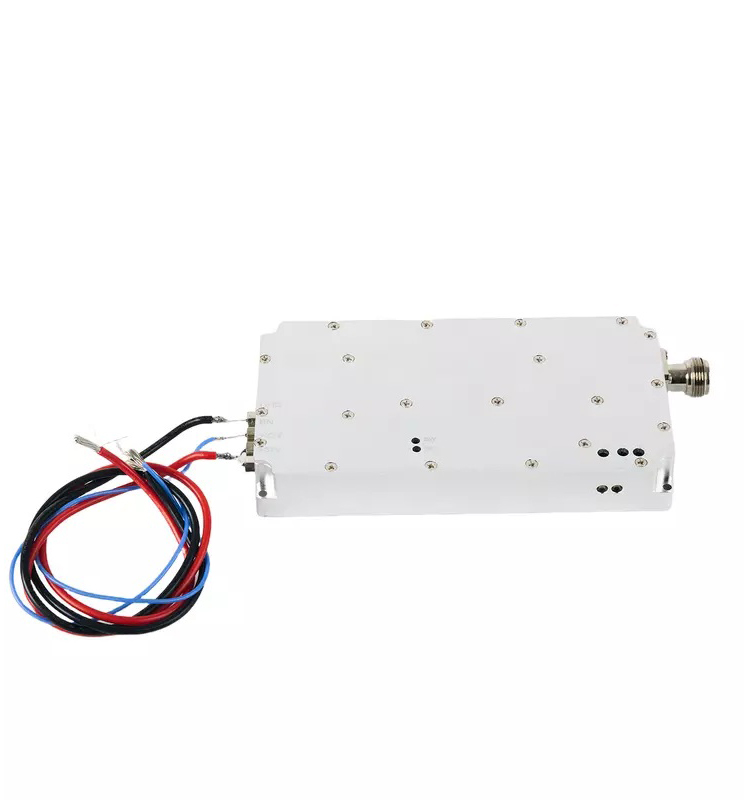

100W GaN Anti-Drone Jamming Module (2400–2500MHz)

Product Overview

The 100W GaN Anti-Drone Jamming Module (2400–2500MHz) is a high-performance RF countermeasure solution designed for professional UAV defense systems. Operating in the critical 2.4GHz ISM band, this module effectively disrupts drone communication and control links, making it ideal for anti-drone systems, electronic countermeasures (ECM), and security protection applications.

Built with Gallium Nitride (GaN) on Silicon Carbide (SiC) technology and mounted on a copper carrier, the module delivers high output power, excellent thermal performance, and long-term reliability in demanding environments.

Key Features

100W High Output Power (50±1 dBm) for effective drone signal suppression
2400–2500MHz Wideband Coverage, targeting mainstream UAV communication frequencies
Class AB GaN Design for high efficiency and signal stability
Instantaneous Wideband Operation for rapid response jamming
50Ω Input/Output Impedance for easy system integration
Compact Size & Lightweight design for portable or fixed installations
High Reliability & Rugged Construction for continuous operation
Advanced Thermal Management using patented heat dissipation technology
Customization Supported for frequency range, scan speed, and signal source

Technical Specifications

Parameter	Specification	Remarks
Operating Frequency	2400–2500MHz	Customizable
Output Power	100W (50±1 dBm)	Rated
Operating Voltage	28V	Range: 28–32V
Operating Current	≤9.2A	@100W output
Modulation / Scan Speed	270kHz	Customizable: 100–500kHz
Signal Source	Built-in high-speed noise modulation	Optional: VCO / DDS / SDR
Impedance	50 Ohm	Input / Output
Operating Temperature	-20℃ to +65℃	Normal operation
RF Connector	N Female
Indicators	LED status indicators	Power, Over-voltage, Over-temperature
Dimensions	150 × 80 × 22 mm
Weight	800 g

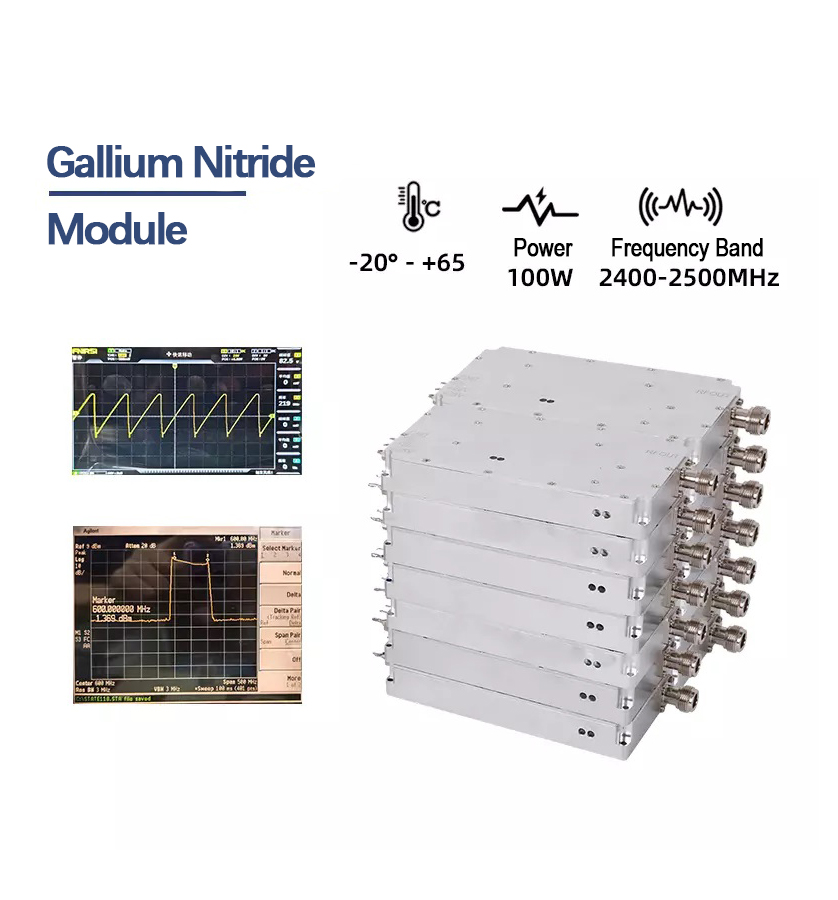

Advanced GaN Technology

This module adopts GaN-on-SiC semiconductor technology, delivering superior power density, high efficiency, and enhanced thermal conductivity. Combined with a copper base carrier and patented heat treatment design, it ensures stable output and long service life even under high-power continuous operation.

Application Scenarios

Anti-drone and UAV countermeasure systems
Drone signal blocking and interference platforms
Fixed-site or mobile security protection systems
Critical infrastructure and restricted area defense
Electronic warfare and RF suppression solutions

Customization Options

To meet diverse operational requirements, this 100W GaN jamming module supports customization, including:

Alternative signal sources (VCO, DDS, SDR)
Adjustable scanning bandwidth and speed
Power and frequency optimization
System-level integration support

Why Choose This 100W GaN Jamming Module?

With high output power, compact design, and advanced thermal management, this module offers a reliable and scalable solution for modern anti-drone defense systems. Its wideband capability and flexible customization make it suitable for both OEM integration and complete counter-UAV platforms.
