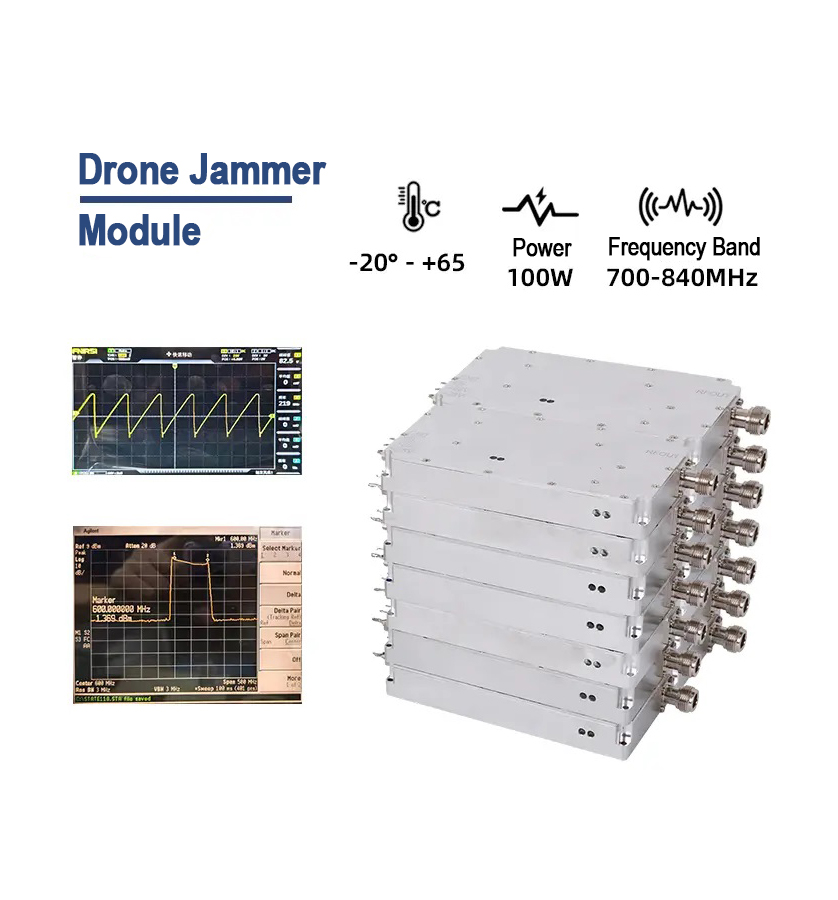

100W LDMOS Jammer Module for 700-840MHz | Anti-UAV & Lora Signal Blocker

100W High-Efficiency LDMOS Jammer: 700-840MHz UAV & Lora Countermeasure Module This 100W jammer module leverages robust LDMOS technology to deliver high-power, efficient signal suppression across the 700-840MHz spectrum. Designed as a core component for advanced countermeasure systems, it effectively targets unauthorized UAV communications and Lora-bas……

Send Inquiry

100W

Functional characteristics

100W High-Efficiency LDMOS Jammer: 700-840MHz UAV & Lora Countermeasure Module

This 100W jammer module leverages robust LDMOS technology to deliver high-power, efficient signal suppression across the 700-840MHz spectrum. Designed as a core component for advanced countermeasure systems, it effectively targets unauthorized UAV communications and Lora-based data links. The module offers a blend of standard performance and customization options, including adjustable sweep speed and selectable signal sources, to meet specific operational requirements.

Key Features & Customization

High-Power LDMOS Amplification: Utilizes LDMOS technology for stable 100W (50dBm) output, providing reliable and efficient jamming power with strong heat dissipation characteristics.
Broad Low-Band Coverage: Effective across the 700-840MHz range, crucial for countering drones and IoT devices (like Lora) operating in these lower frequencies.
Configurable Operation: Features a default 270KHz analog sweep speed, customizable from 100 to 500KHz. Supports an internal high-speed noise source with options for external VCO, DDS, or SDR signal inputs.
Integrated Status Monitoring: Includes LED indicators for power, over-voltage, and over-temperature conditions, enabling real-time operational health checks.

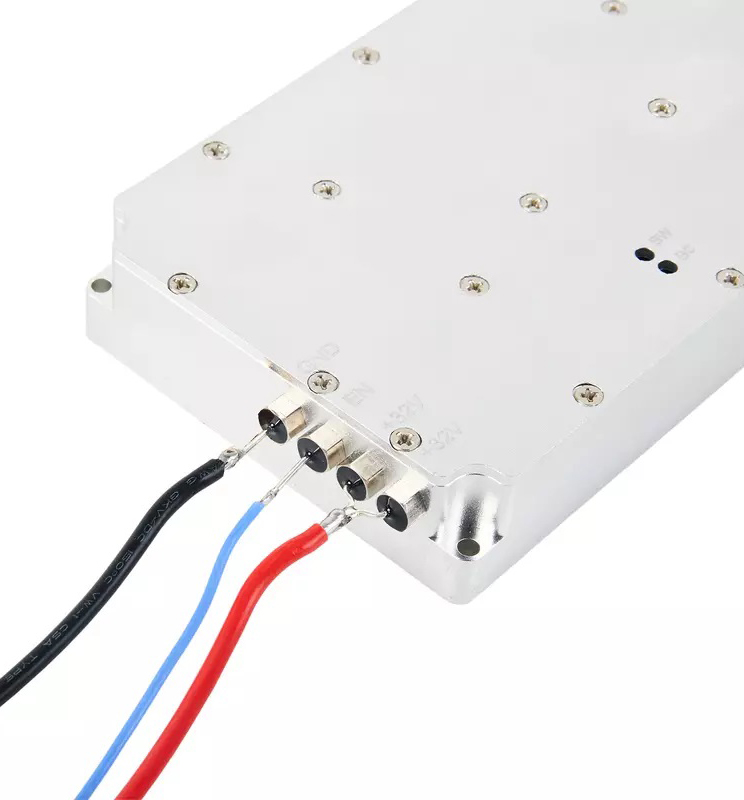

Rugged & Ready Design: Housed in a compact metal chassis (150x80x22mm) with an N-type female RF connector, built for integration into demanding field-deployable systems.

Detailed Technical Specifications

Parameter	Specification
Target Frequency Band	700 – 840 MHz
Output Power	100W (Typ. 50 ±1 dBm)
Operating Voltage	28V (28V – 32V Range)
Operating Current	≤ 9.2A
Analog Sweep Speed	270 KHz (Customizable: 100 – 500 KHz)
Internal Signal Source	High-Speed Noise Modulated Source
Custom Input Source	Optional VCO, DDS, or SDR
Operating Temperature	-20°C to +65°C
RF Connector	N-Type Female
Indicators / Controls	LED for Power, Over-Voltage, Over-Temperature
Module Dimensions (LxWxH)	150 x 80 x 22 mm
Weight	800 g

Application & Integration

This versatile module serves as the RF power core for systems requiring robust suppression in the sub-1GHz band. It is ideally integrated into:

Fixed-site perimeter protection systems for critical infrastructure.
Mobile counter-UAV and anti-drone platforms targeting low-frequency control and data links.
Custom signal denial systems for security applications involving Lora or similar IoT protocols.
