Home > Product > Drone jammer module > 30W > 30W Drone Jammer Module – 870~960MHz UAV Signal Blocker with Integrated Analog Scrambler
High-Power 30W Drone Signal Jammer Module (870~960MHz) This is a robust and integrated drone jamming module designed for professional counter-unmanned aerial vehicle (C-UAV) applications. This compact module generates powerful interference within the 870~960MHz frequency band, effectively disrupting the critical communication links of unauthorized drones. ……

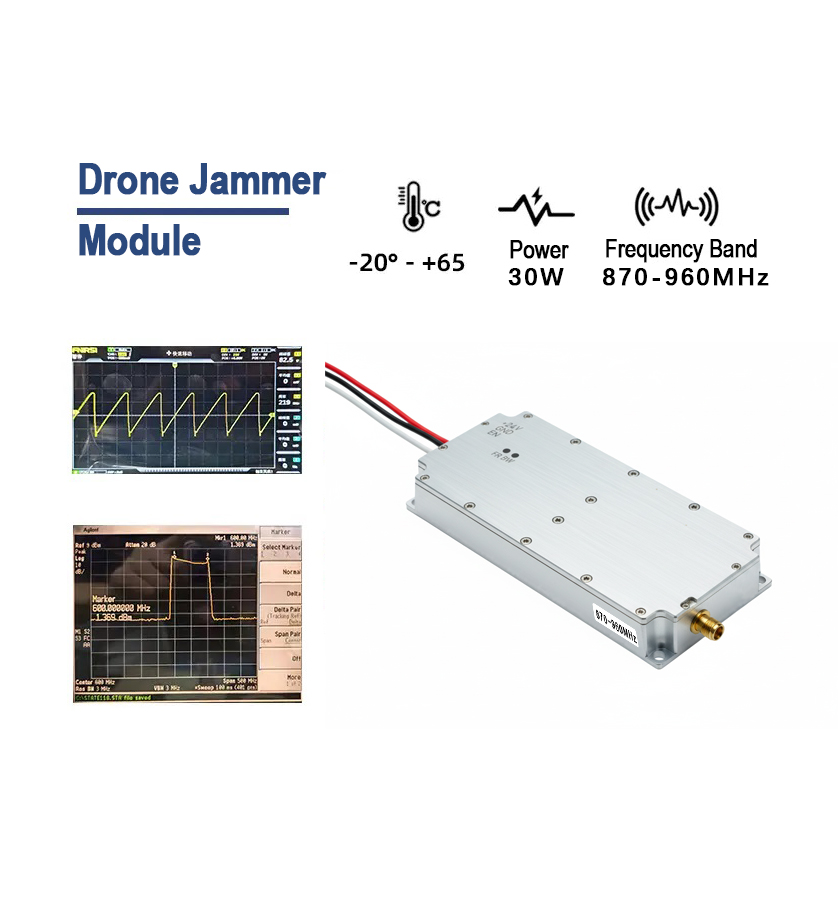

High-Power 30W Drone Signal Jammer Module (870~960MHz)
This is a robust and integrated drone jamming module designed for professional counter-unmanned aerial vehicle (C-UAV) applications. This compact module generates powerful interference within the 870~960MHz frequency band, effectively disrupting the critical communication links of unauthorized drones.
By targeting the common remote control, video transmission (FPV), and telemetry frequencies used by many commercial UAVs, this module can force intruding drones into a fail-safe mode such as landing, returning to their operator, or hovering in place. Its built-in high-speed sweep source ensures continuous and effective analog interference across the entire designated bandwidth.
Key Features & Specifications
High Output Power: 30W nominal RF output for reliable, long-range signal disruption.
Targeted Frequency Band: Covers 870MHz to 960MHz, affecting most consumer and commercial drone control and data links.
Integrated Interference Source: Features a built-in high-speed analog sweep generator, simplifying system integration.
Efficient Design: Operates at ≥40% efficiency with a low VSWR (≤2.0), ensuring stable performance and thermal management.
Compact & Lightweight: Measures only 115.5 x 46.5 x 21mm and weighs 0.21kg, suitable for portable or fixed-installation systems.
Simple Control: Easy TTL-level switch control (High/Open to enable, Ground to disable).
Standard Connectivity: RF output via SMA female connector; requires DC 24V-29V power supply.
Technical Specifications Table
| Parameter | Typical Value |
|---|---|
| Frequency Range | 870 ~ 960 MHz |
| Output Power | 30W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage | DC 24V ~ 29V |
| Max. Operating Current | 3.2A |
| Efficiency | ≥ 40% |
| Switch Control | +5V/Open = ON, GND = OFF |
| RF Connector | SMA Female |
| Jamming Source | Built-in High-Speed Sweep Source |
| Dimensions | 115.5 * 46.5 * 21 mm |
| Weight | 0.21 kg |
Application
The module is engineered for integration into comprehensive anti-drone systems. It is ideal for securing sensitive areas such as:
Government and Military Facilities
Correctional Institutions
Critical Infrastructure Sites (Power Plants, Airports)
Event Venues for VIP Protection
Private Property and Industrial Complexes
