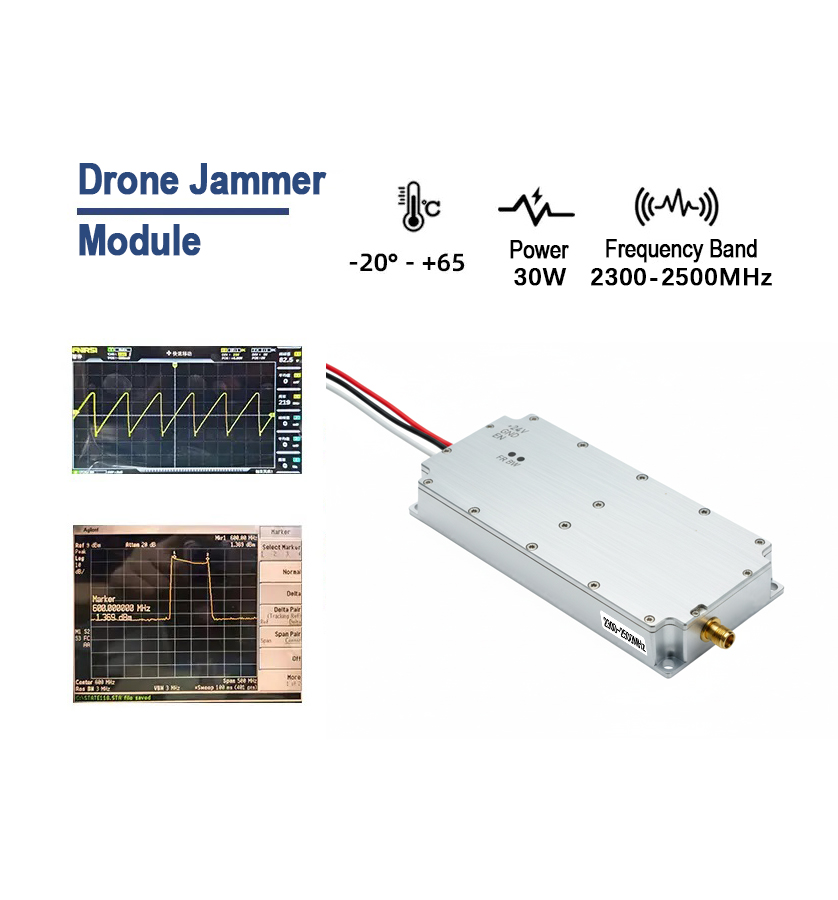

30W 2300-2500MHz Drone Jammer Module with Built-in Sweep Source | High-Power RF Suppression

Product Overview This 30W Drone Jamming Module is a high-power, integrated RF suppression solution designed specifically for the 2300-2500MHz frequency band. It incorporates a built-in high-speed sweep source, providing an all-in-one interference generation platform for counter-unmanned aerial vehicle (C-UAV) systems. The module is engineered to disrupt dr……

Send Inquiry

30W

Functional characteristics

Product Overview
This 30W Drone Jamming Module is a high-power, integrated RF suppression solution designed specifically for the 2300-2500MHz frequency band. It incorporates a built-in high-speed sweep source, providing an all-in-one interference generation platform for counter-unmanned aerial vehicle (C-UAV) systems. The module is engineered to disrupt drone遥控 (remote control),图传 (video transmission), and positioning signals effectively, leading to loss of control and enforcing forced landing, return-to-home, or hover behavior in targeted UAVs.

Detailed Technical Specifications
The module delivers robust performance within a compact form factor, making it suitable for integration into various portable or fixed anti-drone equipment.
- Frequency Band: 2300 – 2500MHz
- RF Output Power: 30W
- Output VSWR: ≤ 2.0
- Operating Voltage: DC 24V to 29V
- Maximum Operating Current: 3.2A
- Typical Efficiency: ≥ 40%
- Switch Control: Active High (+5V or open) / Active Low (GND)
- RF Output Connector: SMA Female
- Interference Source: Internal High-Speed Sweep Generator
- Dimensions: 115.5 x 46.5 x 21 mm
- Weight: 0.21 kg
Core Features & Advantages
- High-Output Power: With 30W of output power, this module ensures strong signal coverage and effective jamming within its operational band.
- Integrated Sweep Source: The built-in high-speed sweep generator simplifies system design by eliminating the need for an external signal source, providing comprehensive band coverage.
- Targeted Frequency Range: Precisely covers 2300-2500MHz, a common band for drone control and video transmission links, ensuring focused and efficient interference.
- Compact & Lightweight Design: Its small size (115.5×46.5x21mm) and low weight (0.21kg) facilitate integration into mobile or space-constrained counter-drone platforms.
- Simple Control Interface: Easy-to-use switch control logic (+5V/Open for ON, GND for OFF) allows for straightforward integration with system controllers.
- Robust Power Design: Operates from a standard 24-29V DC supply, with good operational efficiency (≥40%), balancing performance with power consumption.
Primary Applications
This module serves as the core RF component in systems designed for:
- Fixed-site critical infrastructure protection (e.g., airports, government facilities, prisons).
- Mobile or portable anti-drone units for event security or temporary perimeter defense.
- Integrated counter-UAV systems requiring a reliable, high-power jamming output for the 2.3-2.5GHz spectrum.
Conclusion
Engineered for reliability and effectiveness, this 30W Drone Jammer Module offers a potent, integrated solution for disrupting unauthorized drone activity. Its combination of high power, an internal sweep source, and a compact design provides system integrators with a key building block for developing effective radio frequency countermeasures against drones operating in the 2300-2500MHz band.
