30W UAV Jammer Module (2010–2170MHz) | High-Speed Sweep Source

30W High-Performance UAV Signal Jammer Module (2010~2170MHz) Protect your airspace with our industrial-grade 30W UAV Jammer Module. Designed for seamless integration into anti-drone systems, this module operates within the 2010~2170MHz frequency range. By utilizing an integrated high-speed sweep source, it effectively disrupts drone remote control, video t……

Send Inquiry

30W

Functional characteristics

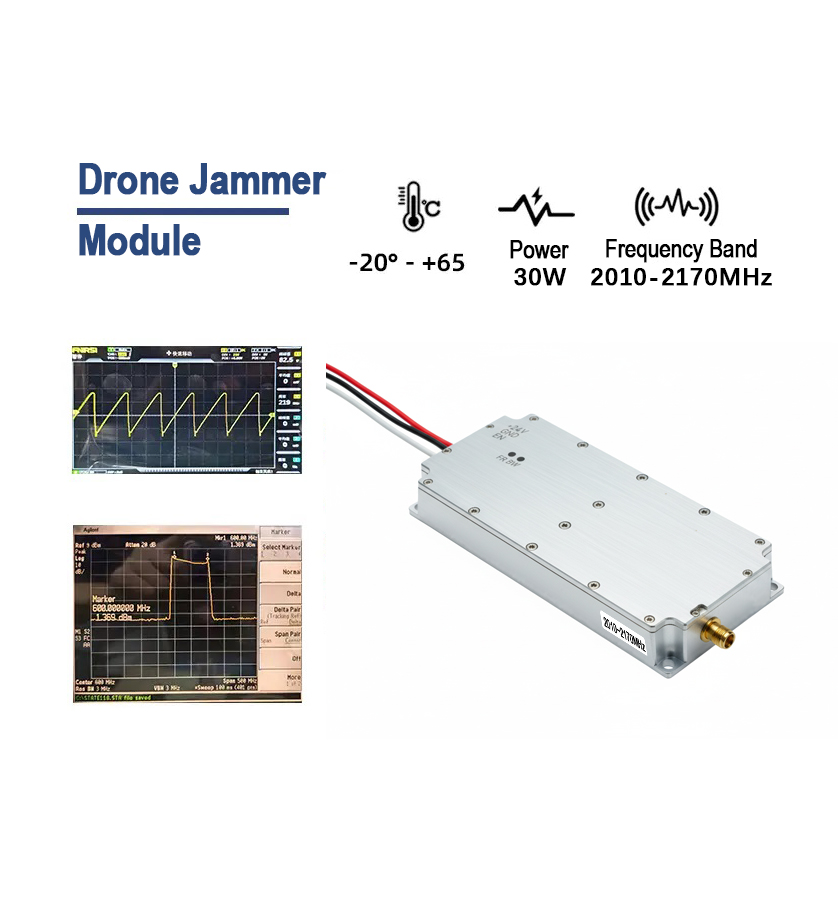

30W High-Performance UAV Signal Jammer Module (2010~2170MHz)

Protect your airspace with our industrial-grade 30W UAV Jammer Module. Designed for seamless integration into anti-drone systems, this module operates within the 2010~2170MHz frequency range. By utilizing an integrated high-speed sweep source, it effectively disrupts drone remote control, video transmission, and positioning signals, forcing unauthorized UAVs to land, return to home (RTH), or hover.

Key Features

High Power Output: Robust 30W (45dBm) output ensures reliable long-range interference.
Integrated Sweep Source: Built-in high-speed frequency sweeping for maximum disruption efficiency.
Superior Efficiency: Optimized circuit design delivers an operating efficiency of $\ge 40\%$ .
Compact & Lightweight: At only 210g, it is ideal for portable or vehicle-mounted defense units.
Smart Control: Supports +5V/floating logic for “On” and grounding for “Off,” allowing for easy remote switching.

Technical Specifications

Parameter	Typical Value
Operating Frequency	2010 ~ 2170MHz
Output Power	30W
Output VSWR	$\le 2.0$
Operating Voltage	DC 24V ~ 29V
Max Working Current	3.2A
Operating Efficiency	$\ge 40\%$
Switch Control	+5V or Floating (ON) / GND (OFF)
Output Connector	SMA-Female
Signal Source	Built-in High-Speed Sweep Source
Dimensions	115.5 * 46.5 * 21mm
Weight	0.21kg

Application Scenarios

Fixed and semi-fixed counter-drone installations
Vehicle-mounted UAV jamming systems
RF shielding systems for sensitive facilities
Long-range drone signal denial platforms
Military, law enforcement, and border protection solutions

Customization & OEM Integration

The 100W LDMOS 500–600MHz UAV jamming module is designed for OEM manufacturers and system integrators.
Custom frequency ranges, scan speeds, signal sources, and system interfaces can be tailored to specific operational requirements, enabling seamless integration into multi-band, layered counter-UAV systems.
