30W GaN Drone Jammer Module 1550–1620MHz | Integrated Analog Interference Module

30W GaN Drone Jammer Module (1550–1620MHz) Looking for a compact and efficient solution for high-frequency UAV countermeasure applications?The 30W 1550–1620MHz GaN Drone Jammer Module is an integrated analog interference unit designed for professional anti-drone systems. Q1: What frequency range does this module cover? This module operates within 1550–162……

Send Inquiry

30W

Functional characteristics

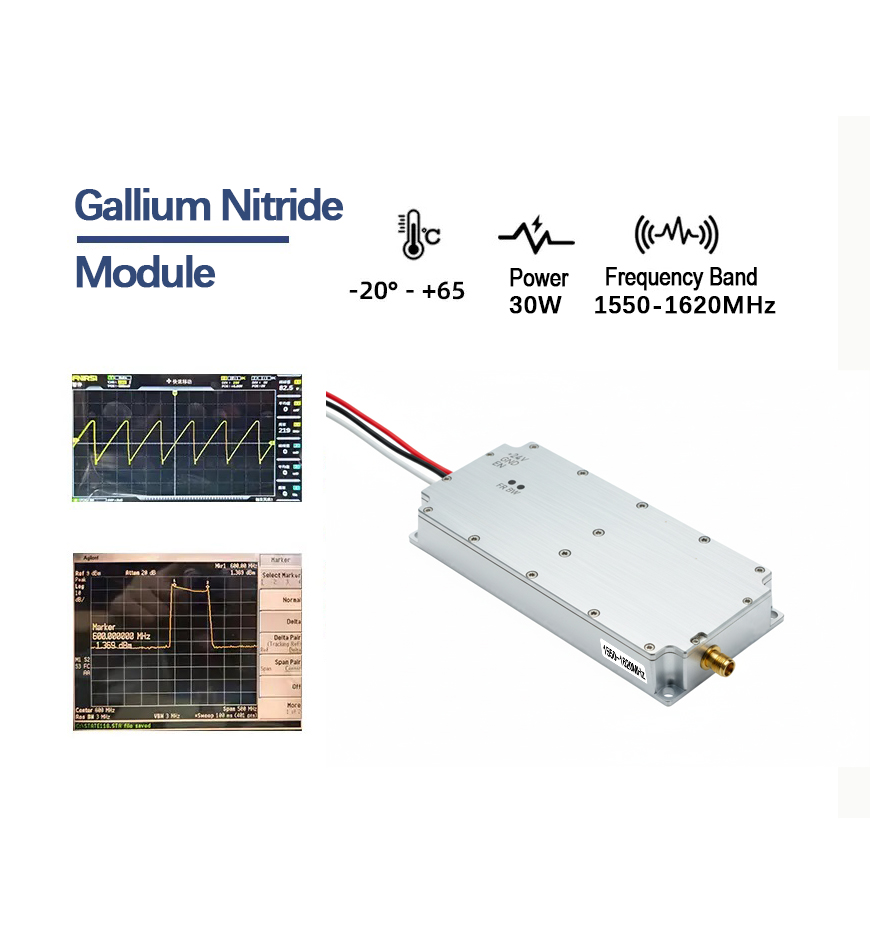

30W GaN Drone Jammer Module (1550–1620MHz)

Looking for a compact and efficient solution for high-frequency UAV countermeasure applications?
The 30W 1550–1620MHz GaN Drone Jammer Module is an integrated analog interference unit designed for professional anti-drone systems.

Q1: What frequency range does this module cover?

This module operates within 1550–1620MHz, making it suitable for suppressing drone communication or data transmission signals within this band.

Q2: What technology is used in this module?

The module adopts GaN-on-SiC (Gallium Nitride on Silicon Carbide) technology and is mounted on a copper heat-dissipation base.

It features:

AB-Class GaN design
Instantaneous wide bandwidth
Improved thermal management
Higher power density and reliability

Q3: What is the output performance?

The module delivers 30W RF output power with high efficiency (≥40%).
It maintains stable performance while keeping power consumption under control.

Q4: Does it include a built-in interference source?

Yes. The module integrates a high-speed sweep interference source, forming a compact all-in-one analog jamming solution. No external modulation source is required for basic operation.

Q5: What are the electrical and mechanical specifications?

Technical Specifications

Parameter	Typical Value
Operating Frequency	1550–1620MHz
Output Power	30W
Output VSWR	≤ 2.0
Operating Voltage	DC 24V–29V
Max Operating Current	3.2A
Efficiency	≥ 40%
Switch Control	+5V or Floating = ON / Ground = OFF
RF Output Connector	SMA Female
Interference Source	Built-in high-speed sweep source
Dimensions	115.5 × 46.5 × 21 mm
Weight	0.21 kg

Q6: Is the module customizable?

Yes. Customization options are available based on project requirements, including integration adjustments and system-level configurations.

Why Choose This 30W Drone Jammer Module?

Compact size (only 0.21 kg)
Integrated analog interference design
High-efficiency GaN technology
Optimized copper-based heat dissipation
Easy integration into portable or embedded counter-UAS systems

Conclusion

The 30W 1550–1620MHz GaN Drone Jammer Module offers a compact, efficient, and reliable solution for UAV countermeasure applications. With integrated sweep interference and advanced GaN-on-SiC technology, it is ideal for space-constrained and professional anti-drone systems.

For OEM customization or technical integration support, contact our engineering team for more details.
