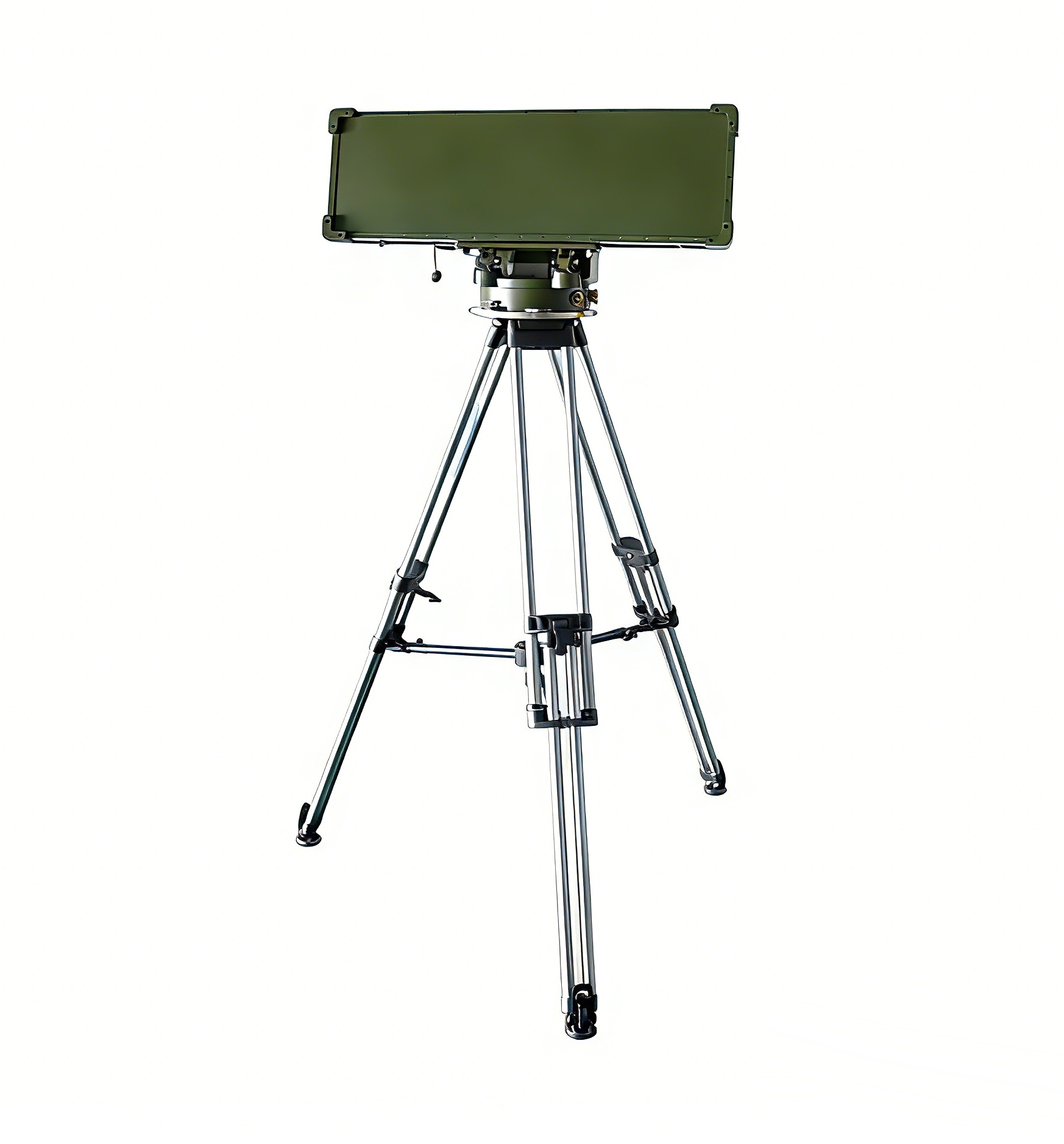

RAD03MX X-Band Drone Detection Radar – 5Km Range for Low-Slow-Small (LSS) UAVs

Product Overview: RAD03MX Low-Slow-Small (LSS) Drone Detection Radar The RAD03MX is a pulse-Doppler, 3D surveillance radar specifically engineered to detect, track, and locate low-altitude, slow-moving, and small (LSS) unmanned aerial vehicles (UAVs). Utilizing an azimuth mechanical scan and elevation electronic phase scan, it provides reliable airspace aw……

Send Inquiry

Fixed Omni Directional Detection

Functional characteristics

Product Overview: RAD03MX Low-Slow-Small (LSS) Drone Detection Radar

The RAD03MX is a pulse-Doppler, 3D surveillance radar specifically engineered to detect, track, and locate low-altitude, slow-moving, and small (LSS) unmanned aerial vehicles (UAVs). Utilizing an azimuth mechanical scan and elevation electronic phase scan, it provides reliable airspace awareness for fixed-site, mobile, and portable counter-drone (C-UAS) deployments. Its core function is to serve as the precise detection node in a layered defense system, enabling effective threat assessment and guiding subsequent neutralization measures such as jamming, laser interdiction, or spoofing.

Key Technical Specifications

Parameter	Specification
Radar Band	X-Band (9 GHz – 10.2 GHz)
Max Detection Range	5 Km
Coverage	Azimuth: 0° – 360°, Elevation: 0° – 30°
Tracking Accuracy	Azimuth: ≤ 0.6°, Elevation: ≤ 0.6°, Range: ≤ 10 m
Physical Dimensions	850 mm (L) x 330 mm (W) x 440 mm (H)
Primary Function	3D positioning of low-altitude aerial targets

Core Features & Benefits

Low False Alarm Rate: Advanced signal processing and superior clutter suppression ensure high target confirmation accuracy, reducing operator workload and increasing response trust.
High Mobility Target Tracking: Capable of continuous and stable detection of highly maneuverable drone targets, ensuring persistent track on fast-moving threats.
Multi-Role Deployment: A lightweight, cost-effective design allows for flexible installation—use it in fixed, vehicle-mounted, or rapidly deployable portable configurations to adapt to any mission profile.
Seamless System Integration: Designed to easily pair with electro-optical (EO/IR) cameras for visual confirmation and directly interface with various countermeasure effectors (jammers, laser systems, decoy generators) to create a complete, automated C-UAS solution.

Typical Applications

The RAD03MX is ideal for protecting sensitive airspace where unauthorized drone activity poses a security, safety, or privacy risk:

Critical Infrastructure Protection: Perimeter security for airports, power plants (including nuclear facilities), and government compounds.
Major Event Security: Airspace monitoring during public gatherings, VIP visits, and sporting events.
Military & Border Security: Base protection and surveillance of restricted zones.

Conclusion

For security teams requiring reliable, early detection of low-flying drone threats, the RAD03MX X-Band Radar provides a proven, accurate, and flexible solution. Its ability to deliver precise 3D coordinates makes it the essential first layer in any modern counter-drone defense system, enabling proactive protection of your most valuable assets.
