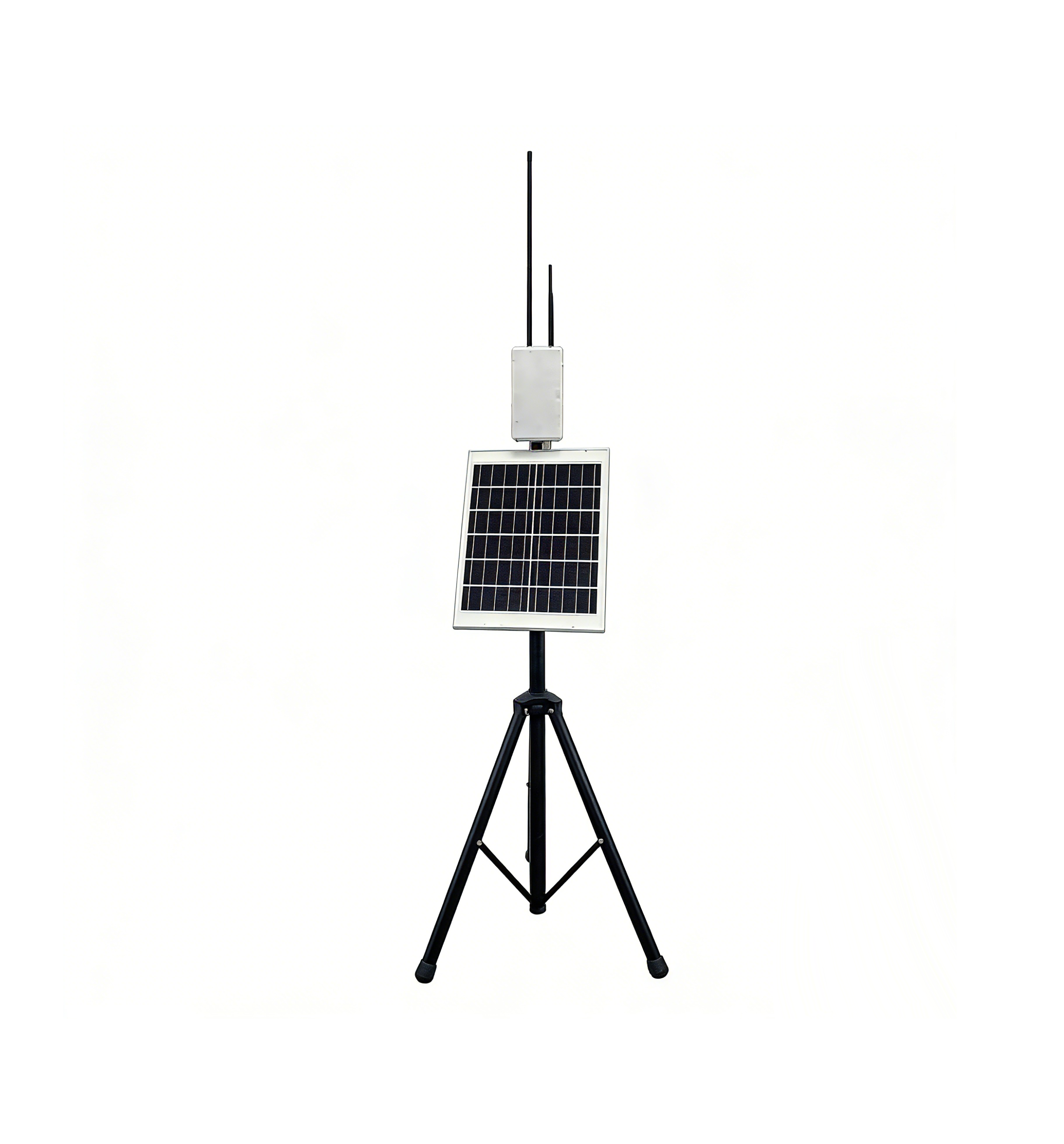

Product Overview The FD04-FA Remote ID Message Analysis Device is a cutting-edge receiver designed to capture and decode Remote ID signals from mainstream Unmanned Aerial Vehicles (UAVs), including all major DJI models. By intercepting these mandatory broadcast signals, the device provides comprehensive situational awareness, displaying critical flight dat……
The FD04-FA Remote ID Message Analysis Device is a cutting-edge receiver designed to capture and decode Remote ID signals from mainstream Unmanned Aerial Vehicles (UAVs), including all major DJI models. By intercepting these mandatory broadcast signals, the device provides comprehensive situational awareness, displaying critical flight data such as drone model, real-time coordinates, and the location of the remote pilot/controller.
This system transforms raw RF signals into actionable intelligence, enabling security personnel to distinguish between compliant flights and potential “black flight” (unauthorized) threats. Data can be transmitted via 4G network or local client interface for centralized remote monitoring, making it an essential tool for modern low-altitude security management.
Designed for rapid deployment in the field, the FD04-FA offers versatile power options, supporting both Solar power (with internal battery backup) and PoE (Power over Ethernet) for permanent installation.
Comprehensive Protocol Support: Fully compliant with the China National Standard GB 42590-2023 for Remote ID message parsing.
Multi-Band Reception: Simultaneously monitors the 2.4GHz and 5.8GHz frequency bands where Remote ID signals are typically broadcast.
Long-Range Detection: Capable of detecting and decoding drones from up to 2-3 kilometers away (depending on environmental conditions).
Dual Power Options:
Solar Version: Features a built-in 2000mAh battery for continuous operation even on cloudy/rainy days.
PoE Version: Powered directly via Ethernet cable for simplified installation and consistent uptime.
Actionable Intelligence: Decodes and displays both Drone Position and Pilot Location simultaneously.
Rugged Enclosure: Durable design with dimensions of 300mm x 150mm x 30mm and a weight of 3kg, suitable for outdoor installation.
| Parameter | Specification | Notes |
|---|---|---|
| Model | FD04-FA | Remote ID Message Analysis Device |
| Detection Frequency Bands | 2.4 GHz, 5.8 GHz | Covers primary Remote ID frequencies |
| Detection Range | 2 – 3 Km | Open field, line-of-sight (typical) |
| Protocol Support | GB 42590-2023 | China National Standard for Remote ID |
| Data Output | 4G Network, Client/App | Remote monitoring capability |
| Power Supply Options | Solar + Battery or PoE | Flexible field deployment |
| Battery Capacity | 2000mAh | For Solar version only |
| Dimensions (L x W x H) | 300 mm x 150 mm x 30 mm | Compact and low-profile |
| Weight | 3 Kg | Rugged construction |
| Target Data Decoded | Drone Model, Coordinates, Pilot Location | Full situational awareness |
The FD04-FA is specifically designed for organizations tasked with maintaining low-altitude security and public safety. It is the ideal solution for:
Public Security & Police Forces: Monitor for unauthorized drones during patrols or special operations.
Airport & Heliport Perimeter Security: Detect drones approaching no-fly zones around critical aviation infrastructure.
Critical Infrastructure Protection: Safeguard power plants, prisons, and government facilities from drone incursions.
Major Event Security: Provide real-time airspace awareness during sporting events, concerts, and political summits.
Low-Altitude Economy Management: Monitor compliant drone activity to ensure integration safety in urban environments.
The FD04-FA is engineered for “set and forget” reliability in various environments:
Solar-Powered Autonomy: The solar version harnesses ambient light to keep the 2000mAh battery charged, allowing the unit to function for extended periods, even through overcast days, without grid power.
Simplified PoE Installation: For locations with existing network infrastructure, the PoE version receives both power and data through a single Ethernet cable, drastically reducing installation complexity and cost.
