Home > Product > Drone Detector > Fixed Omni Directional Detection > FD03-FA Fixed Full-Band Spectrum Detection Device | 300MHz-6GHz Drone Detector | Pilot & Drone Tracking
Product Overview The FD03-FA Fixed Full-Band Spectrum Detection Device is a professional-grade passive detection system engineered for comprehensive low-altitude security monitoring. Covering an extensive frequency range from 300MHz to 6GHz, this device leaves no blind spots—capable of detecting not only conventional consumer drones and FPV racing drones b……

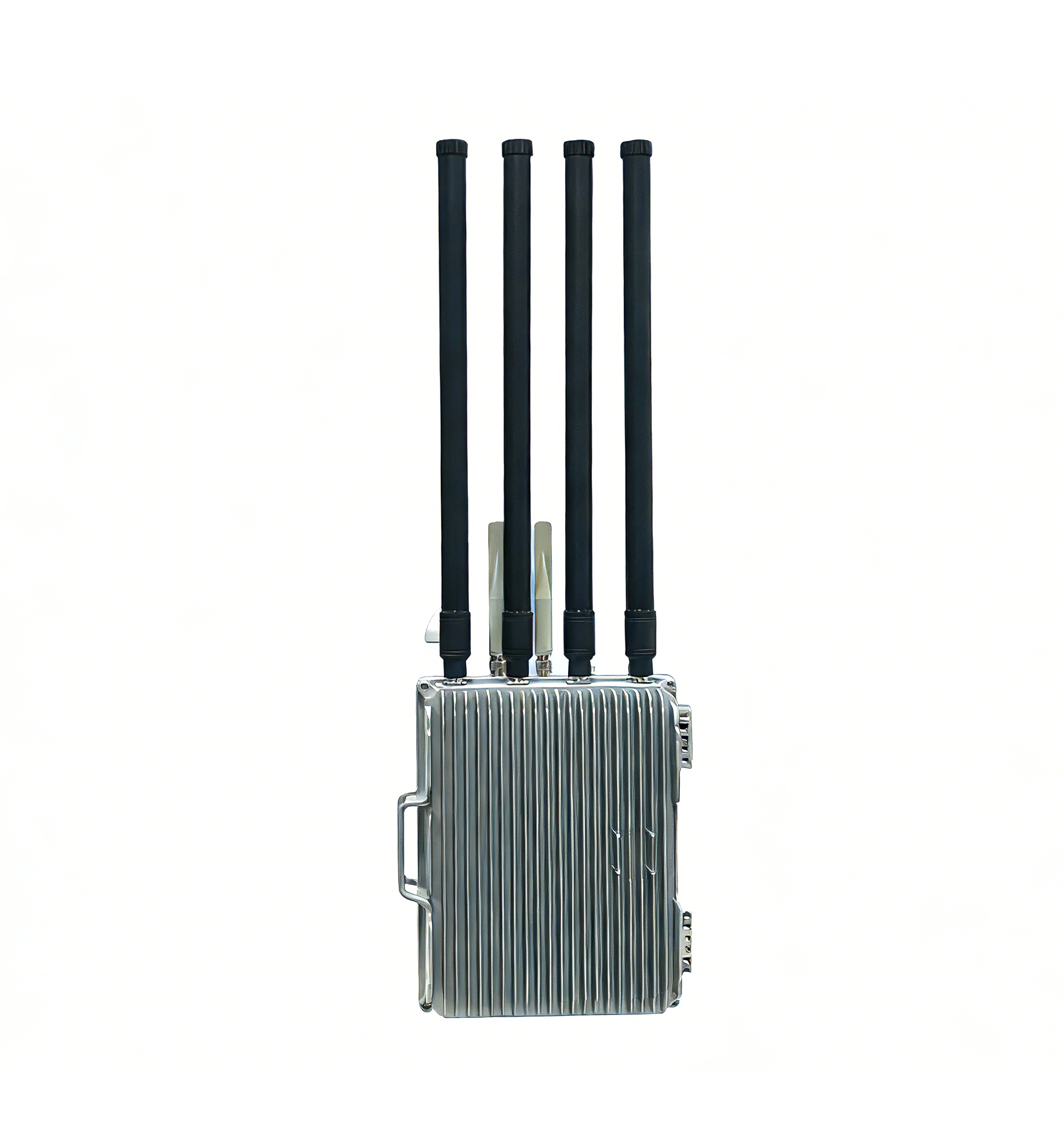

The FD03-FA Fixed Full-Band Spectrum Detection Device is a professional-grade passive detection system engineered for comprehensive low-altitude security monitoring. Covering an extensive frequency range from 300MHz to 6GHz, this device leaves no blind spots—capable of detecting not only conventional consumer drones and FPV racing drones but also non-standard UAVs operating on unauthorized or modified frequency bands.
Unlike simple RF detectors, the FD03-FA features advanced protocol parsing capabilities. It doesn’t just detect the presence of a drone; it decodes critical flight information in real time, including the precise coordinates of both the drone and its remote pilot, as well as the drone’s model and unique ID. This transforms raw spectrum data into actionable intelligence for security personnel.
The system also features intelligent signal feature extraction, allowing it to learn from new or unknown drone signals and dynamically update its internal feature library, ensuring it stays effective against evolving threats.
Full-Band Coverage (300MHz-6GHz): Detects consumer drones (DJI, etc.), FPV models, WiFi-based drones (802.11), and non-standard frequency UAVs.
Long-Range Detection: Achieves a detection range of 3-5 kilometers (depending on environment and drone type).
Pilot & Drone Geolocation: Decodes and displays real-time GPS coordinates for both the UAV and the ground control station/pilot.
Comprehensive Protocol Support: Parses DJI DroneID and international Remote ID (ASTM/GB) protocols.
Drone Type Identification: Distinguishes between OFDM modulation (common in consumer drones), FPV/FM modulation, and 802.11-based WiFi drones.
Dynamic Feature Library: Extracts features from new signals and adds them to the detection library for future encounters.
Blacklist/Whitelist Management: Allows operators to ignore authorized drones and focus only on unauthorized threats.
Rugged Enclosure: Designed for fixed outdoor installation with dimensions of 355mm x 189mm x 295mm.
| Parameter | Specification | Details |
|---|---|---|
| Model | FD03-FA | Fixed Full-Band Spectrum Detection |
| Detection Frequency Range | 300 MHz – 6 GHz | Full-band coverage, no gaps |
| Detection Range | 3 – 5 Km | Open field, line-of-sight (typical) |
| Modulation Types Detected | OFDM (DJI, etc.), FPV/FM, 802.11 (WiFi) | Comprehensive modulation support |
| Decoded Data | Drone/Pilot Real-Time Coordinates, Drone Model/ID | Full situational awareness |
| Protocol Analysis | DJI DroneID, International Remote ID | GB 42590-2023 compatible |
| Feature Library | Dynamic Learning | Automatically extracts and adds new signal features |
| Blacklist/Whitelist | Yes | Differentiate authorized vs. unauthorized drones |
| Dimensions (L x W x H) | 355 mm x 189 mm x 295 mm | Robust fixed-mount design |
| Primary Applications | Event Security, Public Safety, Critical Infrastructure Protection |
The FD03-FA is specifically engineered for organizations requiring persistent, reliable drone detecter over wide areas. It is the ideal solution for:
Critical Infrastructure Protection: Monitor airspace around power plants, prisons, government facilities, and military installations.
Airport & Heliport Security: Detect drones approaching no-fly zones to prevent disruptions to flight operations.
Major Event Security: Provide comprehensive airspace awareness during sporting events, political summits, and concerts.
Public Safety & Law Enforcement: Support patrols and special operations with real-time drone and pilot location data.
Border & Perimeter Security: Detect illegal drone intrusions for smuggling or surveillance.
The FD03-FA operates passively—it emits no RF energy, making it completely undetectable and safe for use in sensitive environments. It continuously sweeps the 300MHz to 6GHz spectrum, analyzing incoming signals. When a drone’s communication signal is detected, the system:
Identifies the Signal Type: Classifies the modulation (OFDM, FM, WiFi).
Decodes the Protocol: If the signal contains DroneID or Remote ID data, it extracts the information.
Geolocates: Calculates and displays the position of both the drone and the pilot.
Alerts Operators: Triggers an alert based on user-defined blacklist/whitelist rules.
