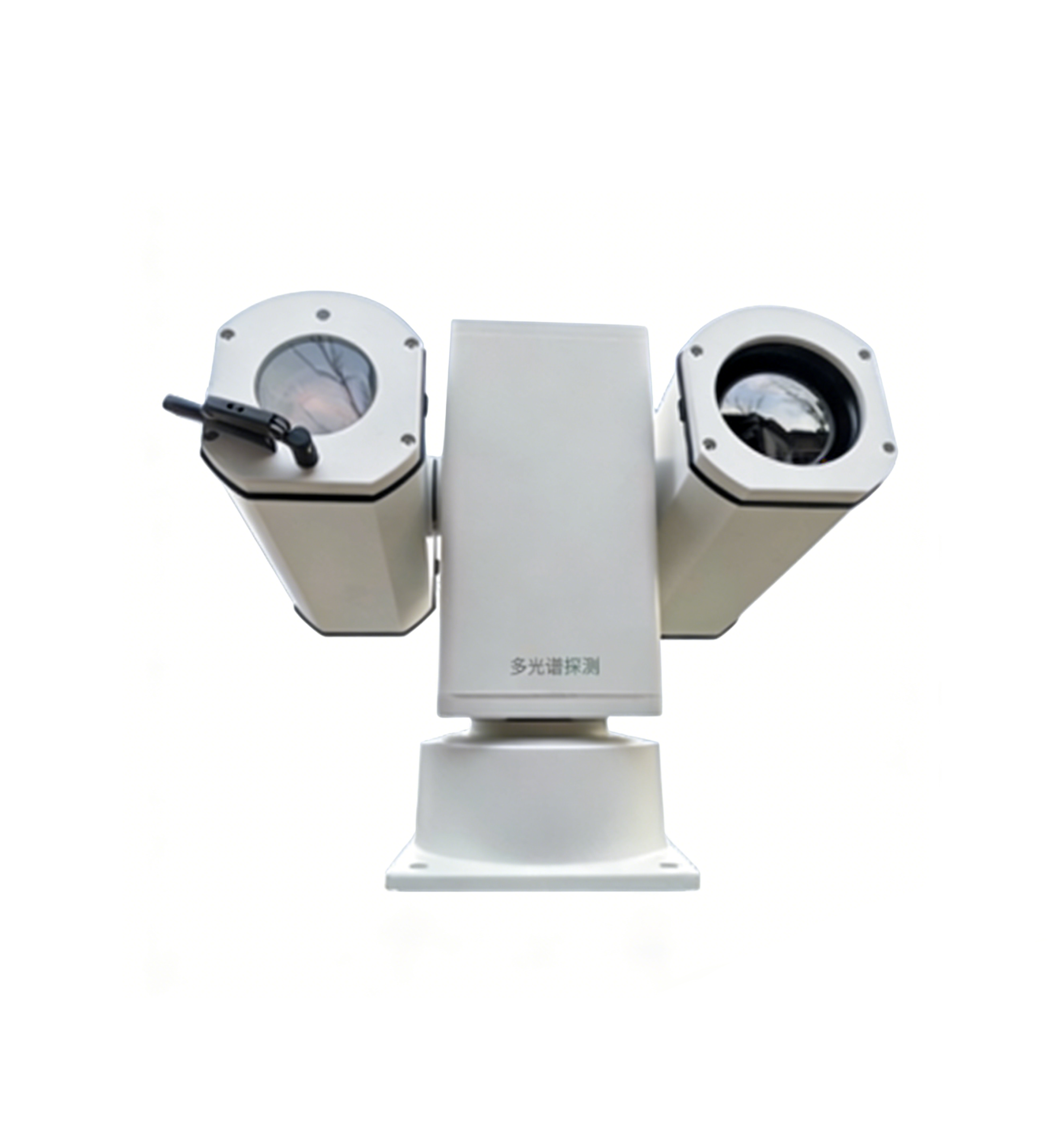

PE01VI Multi-Spectral Electro-Optic Detection & Tracking System The PE01VI is a high-performance, multi-spectral electro-optic (EO) system engineered for reliable, 24/7 surveillance and identification of low, slow, and small (LSS) aerial targets such as drones. Integrating a high-definition visible-light camera with fog-penetration capability, an uncoo……
The PE01VI is a high-performance, multi-spectral electro-optic (EO) system engineered for reliable, 24/7 surveillance and identification of low, slow, and small (LSS) aerial targets such as drones. Integrating a high-definition visible-light camera with fog-penetration capability, an uncooled infrared thermal imager, and intelligent video analytics, it delivers superior situational awareness day and night, in clear or adverse weather conditions. Housed in a ruggedized, shock-resistant alloy casing with environmental protection, the PE01VI drone detector is the ideal solution for persistent monitoring of critical assets, borders, and public venues.
The operational capabilities of the PE01VI system are detailed below:
| Parameter | Specification |
|---|---|
| Detection Channels | HD Visible Light & Uncooled Thermal Imaging |
| Sensor Resolution | Visible: 1920 x 1080; Thermal: 640 x 512 |
| Detection Range | Visible Light: 1 – 3 km; Thermal Imaging: 0.7 – 1.5 km |
| Pan-Tilt Range | Pan: 0° to 360° (continuous); Tilt: -90° to +90° |
| Optical Zoom | 48x Optical Zoom with Auto-Focus |
| Video Output | Full HD, Real-Time Video |
| Dimensions (LxWxH) | 345mm × 190mm × 245mm |
| Weight | 9 kg |
| Key Applications | Critical Site Protection (e.g., Nuclear Plants), Border Security, Major Event Security, Coastal & Maritime Surveillance |
All-Weather, Multi-Spectral Imaging: Combines the detail of a high-sensitivity, low-light visible camera with the target discrimination of a long-wave infrared (LWIR) thermal sensor. This dual-band capability ensures reliable detection in daylight, darkness, light fog, and haze.
Advanced Image Processing: Equipped with an internal gamma compensation, color enhancement, and digital detail enhancement engine. This processing chain delivers clear, high-contrast video feeds essential for positive identification at long ranges.
Intelligent Target Tracking: Features onboard smart detection and tracking algorithms, including background and edge extraction. The system can automatically detect, alert on, and smoothly track moving targets like drones, reducing operator workload.
Superior Optical Performance: The 48x optical zoom lens with auto-focus, combined with near-infrared filters, specialized coatings, and electronic image enhancement, provides exceptional clarity and improves performance in challenging atmospheric conditions.
Ruggedized for Field Deployment: Built with a high-strength, shock-damping alloy casting and protective coatings. The design offers resistance to impact, corrosion, and extreme temperatures, making it suitable for mobile (vehicle-mounted) and fixed-site installations in harsh environments.
The PE01VI drone detector provides a vital persistent surveillance layer for:
Critical Infrastructure Protection: Perimeter security for power plants, nuclear facilities, and government installations.
Border & Coastal Surveillance: Monitoring of land borders, ports, and maritime approaches.
Public Event & VIP Security: Wide-area monitoring for stadiums, airports, and major public gatherings.
Counter-UAS (Drone Defense) Integration: Serves as the primary detection and tracking sensor within a layered drone defense system.
Enhance your perimeter security with reliable, all-weather eyes. Contact us for technical documentation or to discuss integrating the PE01VI into your security architecture.
