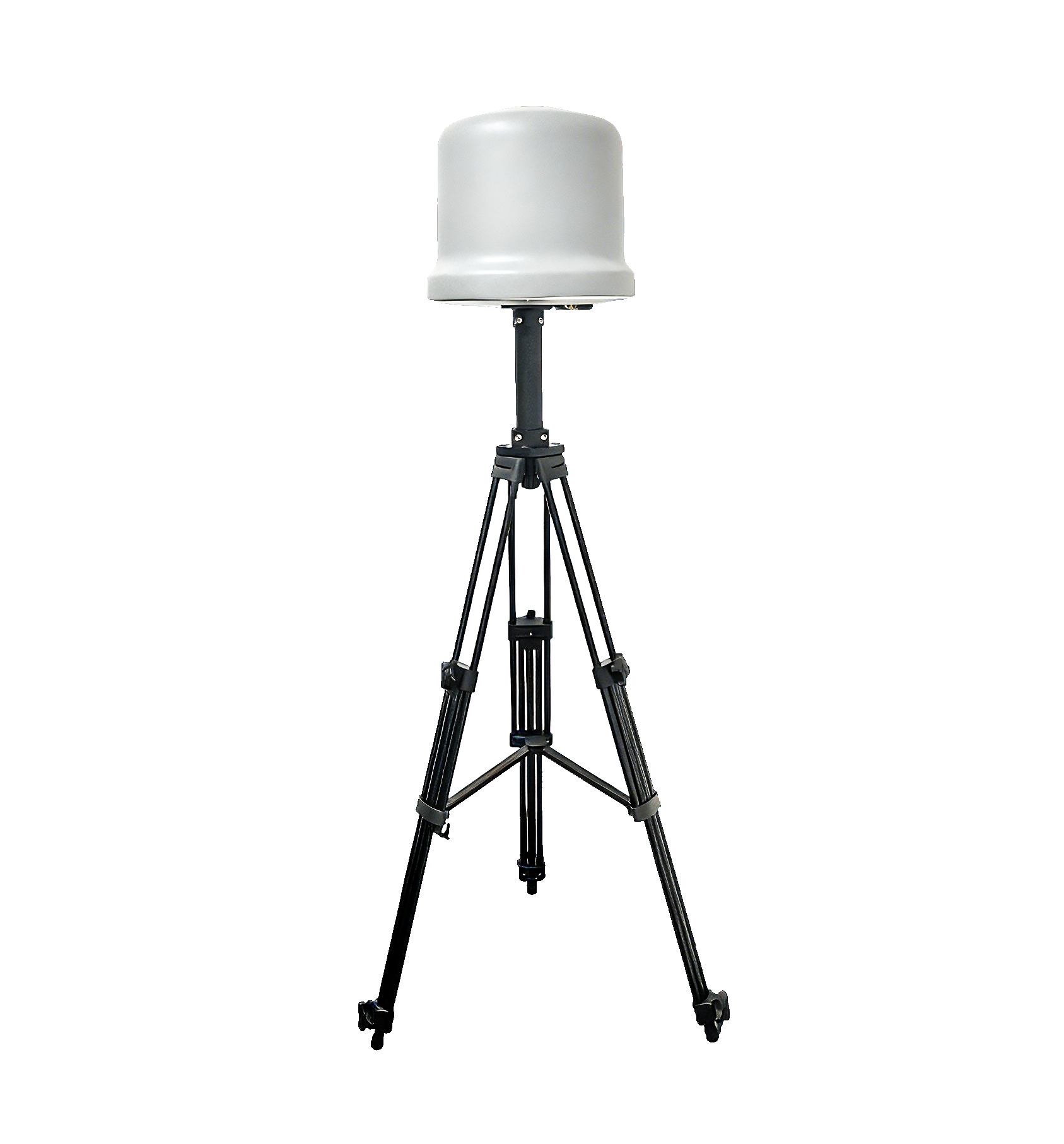

FD02-FDA Fixed Spectrum Detection Device: Advanced RF Monitoring for Secure Operations
The FD02-FDA Fixed Spectrum Detection Device is a state-of-the-art radio frequency monitoring solution designed for critical infrastructure protection. Utilizing passive RF detection and software-defined radio (SDR) technology, it provides comprehensive, 360° spectrum surveillance to identify, locate, and analyze wireless signals in real time. Ideal for sectors such as oil & gas, power utilities, and sensitive facilities, the FD02-FDA ensures enhanced situational awareness and security against unauthorized RF transmissions.
Key Features & Capabilities
Wide Frequency Coverage: Supports standard frequency bands including 2.4GHz, 5.8GHz, 800MHz, and 900MHz, with optional bands of 433MHz, 1.4GHz, and 5.2GHz.
Long-Range Detection: Capable of detecting signals from 5 to 10 kilometers, providing extensive area monitoring.
High-Accuracy Direction Finding: Achieves azimuth direction-finding precision of ≤15° for targeted signal localization.
Smart Identification: Enables Drone ID and Remote ID (based on national standards) parsing, along with whitelist/blacklist management.
Cloud-Ready Networking: Supports multi-unit deployment and centralized management via cloud servers for scalable, wide-area monitoring.
Comprehensive Analysis: Includes spectrum analysis, data capture, and protocol decoding for detailed RF intelligence.
Technical Specifications
Detection Angle: 360° omnidirectional
Dimensions: 371mm × 338mm
Weight: 12kg
Detection Distance: 5–10 km
Target Direction Finding: ≤15° accuracy
Compliance: Supports Drone ID and Remote ID protocols
Applications
Oil, Gas & Petrochemical Sites: Monitor for unauthorized drones and wireless intrusions.
Power Grids & Utilities: Protect critical electrical infrastructure from RF-based threats.
Secure Facilities: Ensure perimeter and airspace security for government, industrial, and high-value sites.
Why Choose FD02-FDA?
The FD02-FDA combines robust hardware with intelligent software to deliver reliable, scalable, and precise spectrum monitoring. Its passive operation ensures covert detection, while cloud integration allows for seamless system expansion and remote management. Whether for drone detection, signal analysis, or spectrum mapping, the FD02-FDA provides a trusted solution for modern RF security challenges.
