80W High-Power Drone Jammer Module for 5600-5900MHz | RF Interference Solution

80W High-Power Drone Jammer Module for 5600-5900MHz Product Overview Our 80W High-Power Drone Jammer Module is a state-of-the-art RF interference solution designed to effectively disrupt and neutralize unauthorized drone activities. Operating specifically within the 5600MHz to 5900MHz frequency spectrum—a band commonly used for drone remote control, First-……

Send Inquiry

80W

Functional characteristics

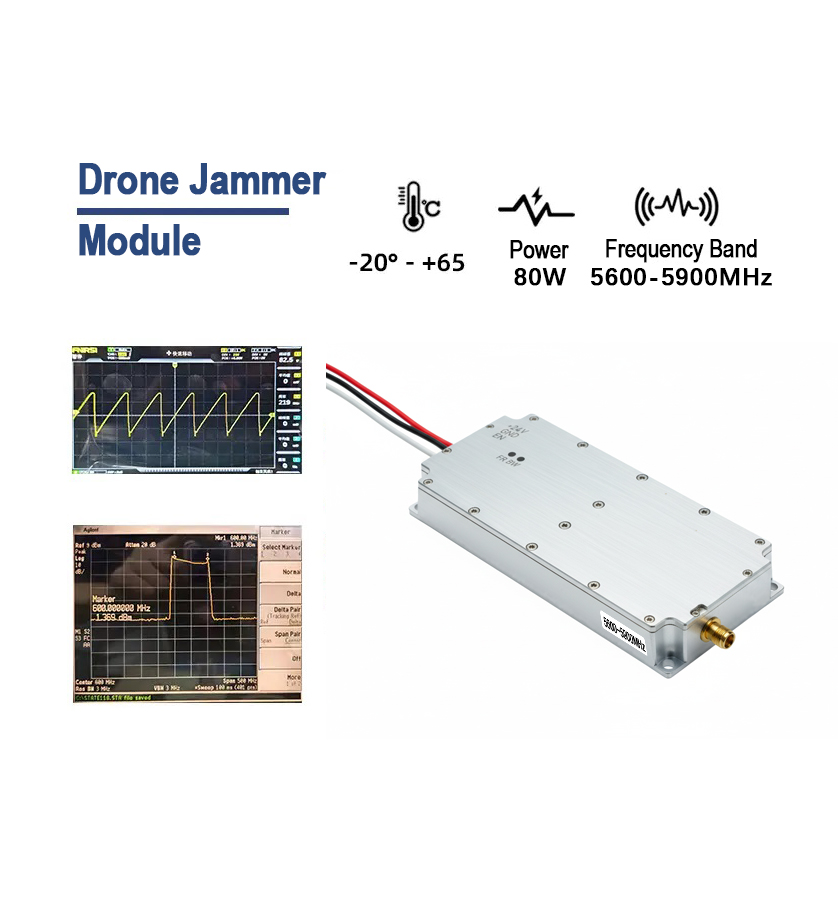

80W High-Power Drone Jammer Module for 5600-5900MHz

Product Overview

Our 80W High-Power Drone Jammer Module is a state-of-the-art RF interference solution designed to effectively disrupt and neutralize unauthorized drone activities. Operating specifically within the 5600MHz to 5900MHz frequency spectrum—a band commonly used for drone remote control, First-Person-View (FPV) video transmission, and navigation signals—this module delivers powerful, targeted interference.

Integrating a built-in high-speed frequency sweep source, it ensures broad and effective signal disruption within its target range. Engineered for integration into comprehensive counter-unmanned aerial vehicle (C-UAV) systems, this module is the core component for enforcing no-fly zones, protecting sensitive areas, and ensuring security against drone-related threats.

Key Applications

This robust interference module is essential for scenarios requiring proactive airspace security:

Critical Infrastructure Protection: Safeguarding airports, power plants, government facilities, and industrial sites from surveillance or malicious drone incursions.
Event Security: Ensuring privacy and safety during large public gatherings, VIP events, and confidential outdoor meetings.
Privacy Preservation: Preventing unwanted drone surveillance over private property, corporate campuses, or residential areas.
Military and Correctional Facility Security: Forming a key part of perimeter defense systems to prevent contraband delivery or reconnaissance.

Core Features & Advantages

High-Power Output: 80W of effective RF power ensures a strong interference radius, capable of overwhelming drone signals at significant distances.
Precise Frequency Targeting: Specifically tuned to the 5600-5900MHz band (5.6-5.9 GHz), it effectively targets common drone communication, video, and GPS frequencies within this range, minimizing collateral interference.
Integrated Sweep Source: The built-in high-speed sweep generator creates a broad interference blanket across the entire band, making it difficult for drones to hop to a clear channel.
Built-in Protection: Features an absorptive VSWR (Voltage Standing Wave Ratio) protection mechanism. This safeguards the module from damage due to antenna mismatch or disconnection, enhancing reliability and longevity.
Compact & Efficient Design: With dimensions of 168.5 x 84.5 x 23mm and a weight of only 0.57kg, it offers a high power-to-size ratio. Efficiency of ≥35% ensures optimal performance from the input power.
Simple Integration: Easy switch control (activated by +5V or left open, deactivated by grounding) and a standard SMA female output connector allow for straightforward integration into larger security systems.

Technical Specifications

Parameter	Specification
Operating Frequency	5600 – 5900 MHz
RF Output Power	80W
Output VSWR	≤ 2.0
Operating Voltage	DC 24V – 29V
Maximum Operating Current	10.0 A
Efficiency	≥ 35%
Switch Control	+5V / Open = ON, GND = OFF
RF Connector	SMA Female
Interference Source	Built-in High-Speed Sweep Source
Protection	Built-in Absorptive VSWR Protection
Dimensions (LxWxH)	168.5 x 84.5 x 23 mm
Weight	0.57 kg

How It Works

The module generates high-power RF noise signals across the 5600-5900MHz band. When transmitted via an antenna, these signals overpower the legitimate communication link between a drone and its operator. This disruption affects the drone’s remote control commands, live video feed (FPV), and often its GPS/GLONASS positioning signals. Deprived of stable control and navigation data, the drone is forced into its failsafe protocol, typically resulting in an immediate landing, return-to-home (RTH) maneuver, or a stabilizing hover in place, effectively neutralizing the threat.

Ordering & Integration

This 80W Drone Jammer Module is designed for system integrators, security solution providers, and authorized entities developing counter-drone equipment. For detailed integration guidelines, licensing requirements specific to your region, and purchasing information, please contact our sales team.

Disclaimer: The use of jamming equipment is strictly regulated by law in most countries. It is the buyer’s sole responsibility to obtain all necessary licenses and permits from relevant national authorities (e.g., FCC in the USA) before operation. This product must only be used in lawful applications by authorized personnel.
