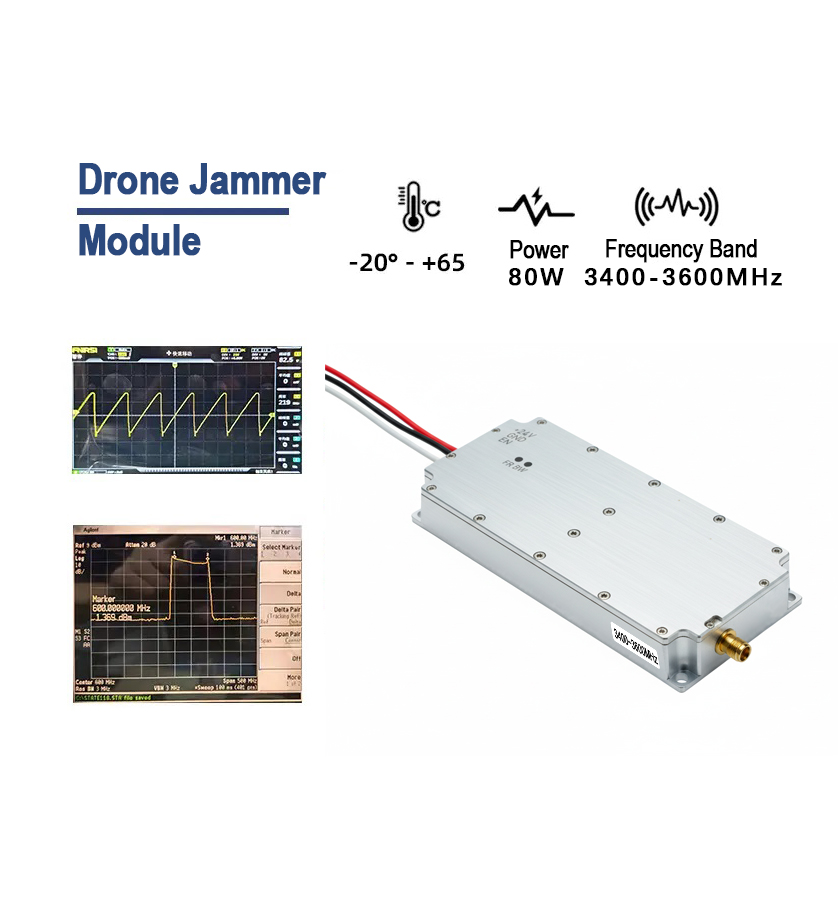

80W 3400-3600MHz Drone Jammer Module with Integrated Analog Interference

80W High-Power Drone Jammer Module for 3400-3600MHz Band This high-performance 80W Drone Jammer Module is designed to target and disrupt unmanned aerial vehicle (UAV) operations within the 3400MHz to 3600MHz frequency range. Integrating a built-in high-speed frequency sweep source (analog interference), it effectively jams drone remote control, video trans……

Send Inquiry

80W

Functional characteristics

80W High-Power Drone Jammer Module for 3400-3600MHz Band

This high-performance 80W Drone Jammer Module is designed to target and disrupt unmanned aerial vehicle (UAV) operations within the 3400MHz to 3600MHz frequency range. Integrating a built-in high-speed frequency sweep source (analog interference), it effectively jams drone remote control, video transmission, and positioning signals. This interference forces targeted drones into fail-safe actions such as landing, returning to home, or hovering, neutralizing potential threats.

Ideal for integration into comprehensive counter-drone systems, this compact and efficient module provides reliable RF suppression for security, privacy, and airspace protection applications.

Key Features:

High Output Power: 80W nominal power for effective range and coverage.
Precise Targeting: Covers the 3400-3600MHz band, commonly used for drone communication and video transmission.
Integrated Interference Source: Built-in high-speed sweep generator creates robust analog interference patterns.
Built-in Protection: Features absorptive VSWR protection to safeguard the module from output port mismatches.
Compact & Efficient: High efficiency (≥40%) and a compact form factor (168.5 x 84.5 x 23mm) enable integration into portable or fixed systems.
Simple Control: Easy TTL-level switch control (ON: +5V or open; OFF: ground).

Detailed Specifications:

Parameter	Typical Value
Frequency Range	3400 ~ 3600 MHz
Output Power	80W
Output VSWR	≤ 2.0
Operating Voltage	DC 24V ~ 29V
Maximum Operating Current	10.0 A
Efficiency	≥ 40%
Switch Control	+5V or Open = ON / Ground = OFF
RF Connector	SMA Female
Interference Source	Built-in High-Speed Sweep Source
VSWR Protection	Built-in Absorptive Type
Dimensions	168.5 * 84.5 * 23 mm
Weight	0.55 kg
