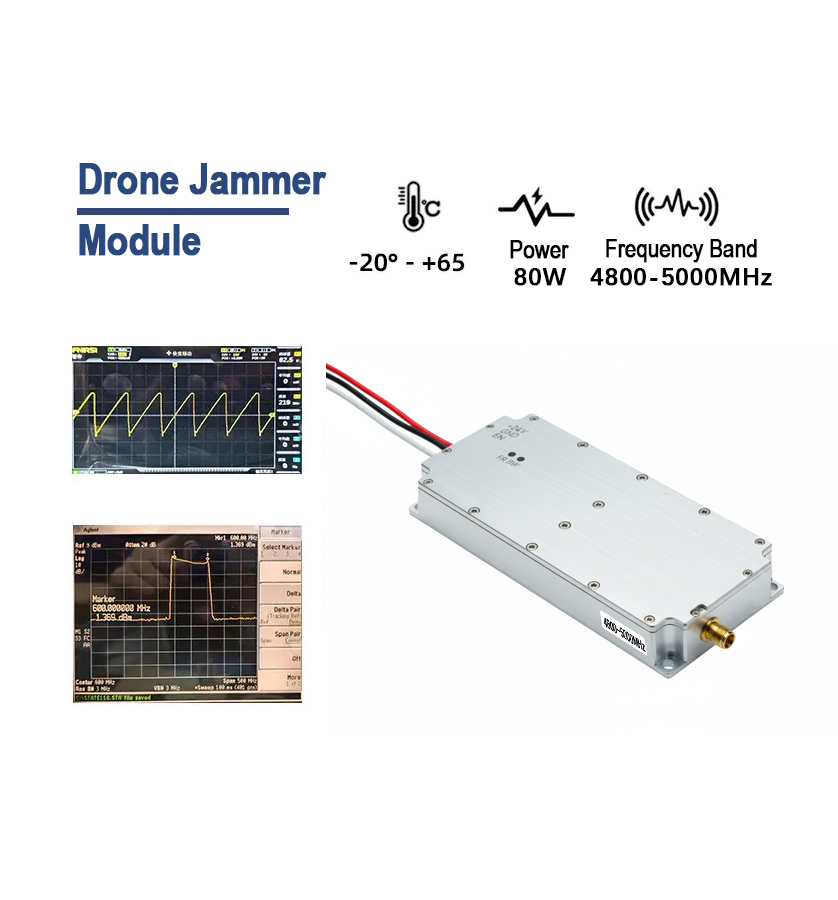

80W 4800–5000MHz UAV Jamming Module | Integrated RF Interference Jammer

80W 4800–5000MHz UAV Jamming Module – Integrated Analog Interference Unit Product Overview The 80W 4800–5000MHz UAV Jamming Module is a high-power RF interference solution designed to disrupt drone communication links operating in the 4.8–5.0 GHz band, a commonly used frequency range for UAV control and video transmission. Equipped with a built-in high-spe……

Send Inquiry

80W

Functional characteristics

80W 4800–5000MHz UAV Jamming Module – Integrated Analog Interference Unit

Product Overview

The 80W 4800–5000MHz UAV Jamming Module is a high-power RF interference solution designed to disrupt drone communication links operating in the 4.8–5.0 GHz band, a commonly used frequency range for UAV control and video transmission. Equipped with a built-in high-speed sweep interference source, this module delivers effective and stable jamming performance.

It is engineered for integration into anti-drone systems, RF countermeasure platforms, and security jamming equipment, offering strong output power, compact construction, and reliable protection features.

Key Features

80W High Output Power for effective UAV signal suppression
4800–5000MHz Operating Frequency Band targeting drone control and data links
Built-in High-Speed Sweep Interference Source to enhance jamming coverage
Integrated Analog Jamming Design for simplified system architecture
Internal VSWR Absorptive Protection to safeguard the RF output stage
Compact and Robust Mechanical Design suitable for various deployments
SMA Female RF Connector for standard RF integration
Simple ON/OFF Control Logic (+5V or open: ON / ground: OFF)
Stable Continuous Operation with ≥35% efficiency

Technical Specifications

Parameter	Typical Value
Operating Frequency	4800–5000 MHz
Output Power	80W
VSWR	≤ 2.0
Operating Voltage	DC 24–29 V
Maximum Current	10.0 A
Efficiency	≥ 35%
Control Interface	+5 V or Open = ON, Ground = OFF
RF Connector	SMA Female
Interference Source	Built-in High-Speed Sweep Source
VSWR Protection	Internal Absorptive Protection
Dimensions	168.5 × 84.5 × 23 mm
Weight	0.57 kg

Application Scenarios

This 80W UAV jamming module is suitable for a wide range of counter-drone applications, including:

Disrupting drone remote control links
Blocking high-bandwidth video and data transmission
Interfering with navigation and telemetry signals
Forcing drones to land, return home, or hover
Integration into fixed-site or mobile anti-drone systems

Why Choose This UAV Jamming Module?

With its high output power, precise 4.8–5.0 GHz frequency coverage, integrated fast sweep interference source, and built-in VSWR protection, this module provides a reliable and efficient RF countermeasure solution. It is ideal for OEM integration and customized anti-drone platforms requiring robust performance in high-frequency bands.
