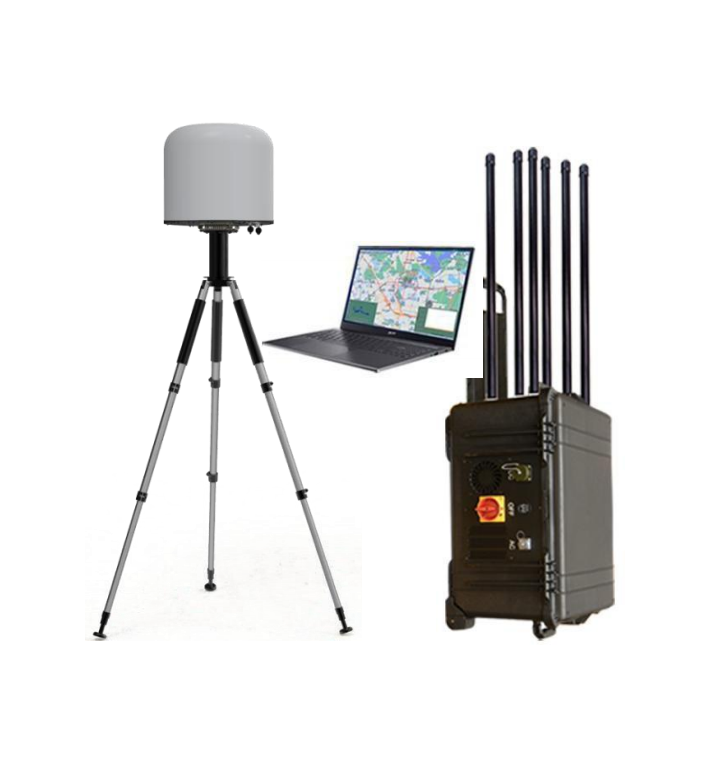

S90A-YDJ Integrated Counter-UAV Detection & Jamming System | 70–6000MHz Mobile Anti-Drone Solution

Product Overview The S90A-YDJ Integrated Counter-UAV Detection & Jamming System is a professional detect-and-jam all-in-one anti-drone solution designed for mobile and flexible deployment. The system combines long-range drone detection, precise identification, and high-power interference into a single defense platform. Operating across an ultra-wide 70……

Send Inquiry

Counter Integrated Jammers

Functional characteristics

Product Overview

The S90A-YDJ Integrated Counter-UAV Detection & Jamming System is a professional detect-and-jam all-in-one anti-drone solution designed for mobile and flexible deployment. The system combines long-range drone detection, precise identification, and high-power interference into a single defense platform.

Operating across an ultra-wide 70–6000MHz detection band, the S90A-YDJ can detect and identify a wide range of drones, including DJI, Autel, and FPV racing drones. With a maximum detection range of up to 5 km and a jamming radius of up to 1 km, the system provides reliable airspace protection for sensitive areas.

Key Features

Integrated detect-and-jam counter-UAV system
Ultra-wide detection frequency: 70–6000MHz
High-power jamming output: 450W total
Detection range: 1–5 km
Jamming radius: 0–1000 m
Automatic countermeasure and defense modes
Configurable jamming strategies and response modes
Audible and visual alarm for drone presence
Drone positioning and direction indication
Mobile deployment design

Supported Jamming Frequencies

The system supports simultaneous or selectable jamming of common drone control and data-link bands:

900MHz
1.5GHz
2.4GHz
5.2GHz
5.8GHz

These bands effectively disrupt UAV control, telemetry, and video transmission.

Technical Specifications

Item	Specification
Model	S90A-YDJ
System Type	Integrated Detection & Jamming Counter-UAV System
Detection Frequency	70–6000MHz
Jamming Power	450W (total)
Jamming Frequencies	900M / 1.5G / 2.4G / 5.2G / 5.8G
Detection Range	1–5 km
Jamming Radius	0–1000 m
Countermeasure Modes	Selectable / Configurable
Alarm System	Audible & Visual
Drone Identification	DJI, Autel, FPV racing drones, etc.
Positioning	Drone presence & direction indication
Operation Mode	Automatic countermeasure
Control Platform	Independent computer system supported
Deployment Type	Mobile
Power Supply	DC 28V / AC 220V

Applications

Mobile counter-UAV defense units
Protection of sensitive facilities and infrastructure
Event security and temporary airspace control
Law enforcement and emergency response
Military, border, and critical-area protection

System Advantages

All-in-one detection and jamming design, reducing deployment complexity
Wideband detection capability covering both commercial and FPV drones
Automatic response, minimizing operator workload
Flexible power supply, suitable for field and vehicle-mounted use
Mobile structure, adaptable to changing defense scenarios

Conclusion

The S90A-YDJ Integrated Counter-UAV Detection & Jamming System delivers comprehensive drone defense through wideband detection, intelligent identification, and high-power jamming. With automatic operation, mobile deployment capability, and support for mainstream UAV platforms, it is an ideal solution for modern anti-drone defense requirements.
