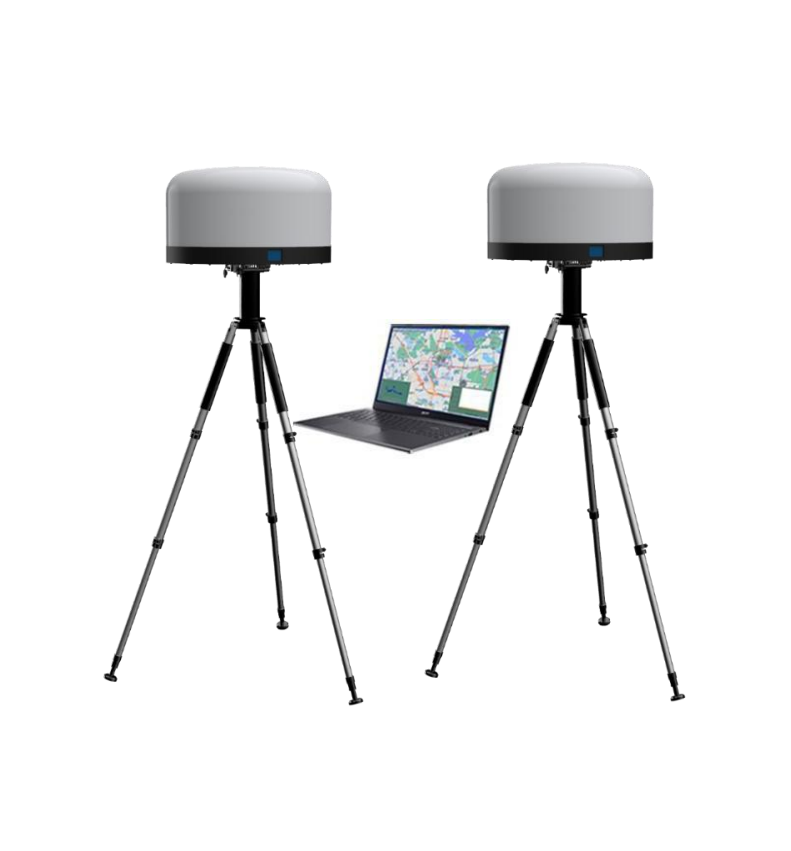

S98-2-20KM-DJ: All-in-One Detection, Strike, and Deception Drone Countermeasure System The S98-2-20KM-DJ represents a new generation of integrated, intelligent drone defense solutions. Designed for critical infrastructure, border security, and event protection, this system seamlessly combines long-range detection, precision jamming, and advanced navigation……
The S98-2-20KM-DJ represents a new generation of integrated, intelligent drone defense solutions. Designed for critical infrastructure, border security, and event protection, this system seamlessly combines long-range detection, precision jamming, and advanced navigation spoofing into a single, automated platform. It effectively neutralizes threats from commercial, modified, and FPV drones, including popular models from DJI, Autel, and others.
The S98-2 system operates on three simultaneous layers of defense for comprehensive protection.
| Defense Layer | Core Function | Key Specification | Effective Range |
|---|---|---|---|
| Detection & Identification | Scans, identifies, and tracks UAVs. | Frequency: 70MHz – 6000MHz | Up to 20 km |
| Directional Jamming | Disrupts drone control, video, and telemetry links. | Frequency: 400MHz – 6100MHz | Up to 3 km radius |
| Navigation Spoofing | Deceives UAV GPS, BDS, GLONASS, & GALILEO signals. | Multi-constellation support | Up to 20 km (Customizable) |
Fully Integrated Platform: A standalone system unifying detection, jamming, and spoofing with an intelligent management interface.
Autonomous Operation: Features automatic detection, automatic defense, and manual control modes for flexible response protocols.
Wide Spectrum Coverage: Detects signals from 70MHz to 6GHz and counteracts threats from 400MHz to 6.1GHz, ensuring compatibility with current and emerging drone models.
Precision Countermeasures: Utilizes DF (Direction Finding) detection to enable directional interference and spoofing, minimizing collateral impact.
Multi-Constellation Spoofing: Capable of deceiving all major global navigation satellite systems (GPS, BeiDou, GLONASS, Galileo).
Alert System: Integrated audible and visual alarm for immediate threat notification.
High-Capacity Defense: Capable of handling 15 or more simultaneous countermeasure frequency bands.
| Parameter | Specification |
|---|---|
| System Model | S98-2-20KM-DJ |
| Detection Range | 1 – 20 km |
| Detection Frequency | 70 MHz – 6000 MHz |
| Jamming Range | Up to 3,000 meters (Directional) |
| Jamming Frequency | 400 MHz – 6100 MHz |
| Spoofing Range | Up to 20,000 meters (Customizable) |
| Spoofing Types | GPS, BDS (BeiDou), GLONASS, GALILEO |
| Target Identification | DJI, Autel, FPV racing drones, and other UAVs. |
| Operational Modes | Automatic Detection, Manual Mode, Automatic Defense |
| Countermeasure Bands | ≥ 15 independent bands |
Ideal for safeguarding:
Airports and No-Fly Zones
Government and Military Facilities
Critical Infrastructure (Power Plants, Dams)
Large-Scale Public Events
Correctional Facilities
Private Estates and Industrial Complexes
The S98-2-20KM-DJ system provides a robust, scalable, and intelligent answer to the growing challenge of unauthorized and malicious drone activity. Its all-in-one design reduces operational complexity while delivering superior multi-layered defense.
