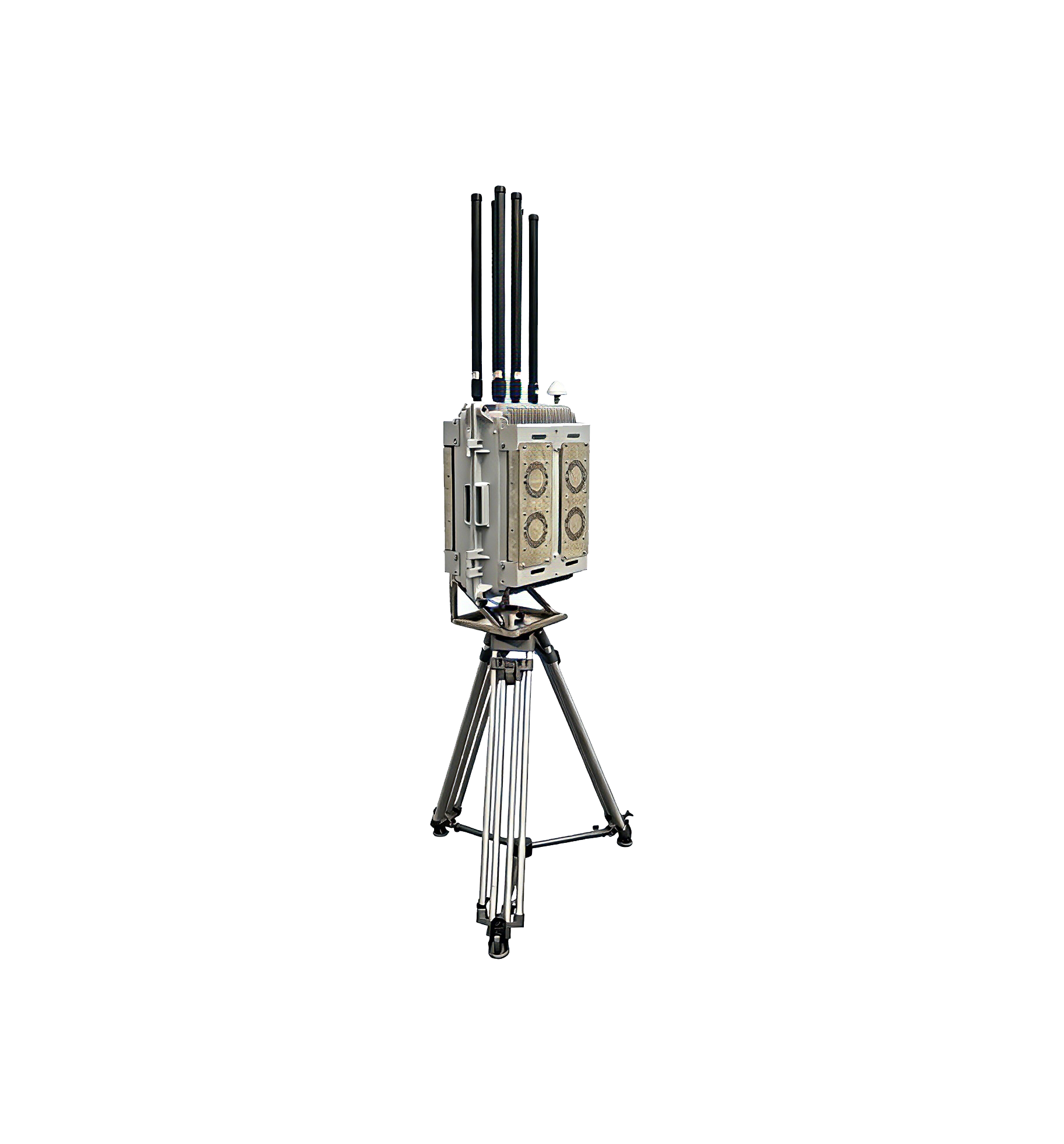

DI1100 Integrated Drone Jammer & GNSS Spoofing System | 300MHz–6GHz

DI1100: Precision Adaptive Jamming & GNSS Spoofing Integrated System The DI1100 is a state-of-the-art, integrated solution designed to counter unauthorized drone incursions. By combining high-precision adaptive jamming with advanced navigation spoofing, it provides a comprehensive defense shield against both standard and non-standard frequency UAVs. Ut……

Send Inquiry

Counter Integrated Jammers

Functional characteristics

DI1100: Precision Adaptive Jamming & GNSS Spoofing Integrated System

The DI1100 is a state-of-the-art, integrated solution designed to counter unauthorized drone incursions. By combining high-precision adaptive jamming with advanced navigation spoofing, it provides a comprehensive defense shield against both standard and non-standard frequency UAVs.

Utilizing Software Defined Radio (SDR) technology, the DI1100 generates sophisticated signals to suppress or deceive drone positioning modules, enabling long-distance interception and tactical control.

Key Capabilities

Adaptive Interference: Full coverage of the 300MHz to 6GHz spectrum to suppress authorized and preset drone frequencies.
Multi-Mode Spoofing: Rapidly deceives drone positioning modules to achieve tactical objectives such as Directional Guidance, Forced Expulsion, Controlled Landing, or Induced Crashing.
Long-Range Interception: Features an effective jamming radius of up to 3km and a spoofing range of 2km.

Technical Specifications

Feature	Specification Details
Operating Frequency	300MHz – 6GHz (Wideband support)
Navigation Frequency Points	BDS: B1I, B1C, B2a; GPS: L1C/A, L2/L5; GLONASS: L1/L2; Galileo: E1, E5a; QZSS: L1 C/A; Navic: L5
Jamming Distance	Up to 3km
Spoofing Distance	Up to 2km
Signal Technology	Digital SDR (Software Defined Radio) Signal Generation
Dimensions	444mm × 600mm × 312mm

Strategic Applications

The DI1100 is engineered for high-security environments where airspace integrity is critical. Its versatile deployment makes it ideal for:

Critical Infrastructure Protection: Safeguarding power plants, government buildings, and military installations.
Large-Scale Event Security: Ensuring “no-fly zones” during public gatherings, sports events, and summits.
Public Safety & Policing: Providing tactical support for law enforcement in anti-terrorism and border control operations.
Tactical Airspace Denial: Creating a secure perimeter against reconnaissance or weaponized drone threats.

Why Choose the DI1100?

Unlike traditional jammers, the DI1100 doesn’t just block signals—it takes control. Through “Multi-Point Spoofing,” it can receive and simulate satellite signals, allowing operators to manipulate the target drone’s flight path with surgical precision. Its wide-spectrum capability ensures that even custom-built drones operating on non-standard frequencies are successfully neutralized.
