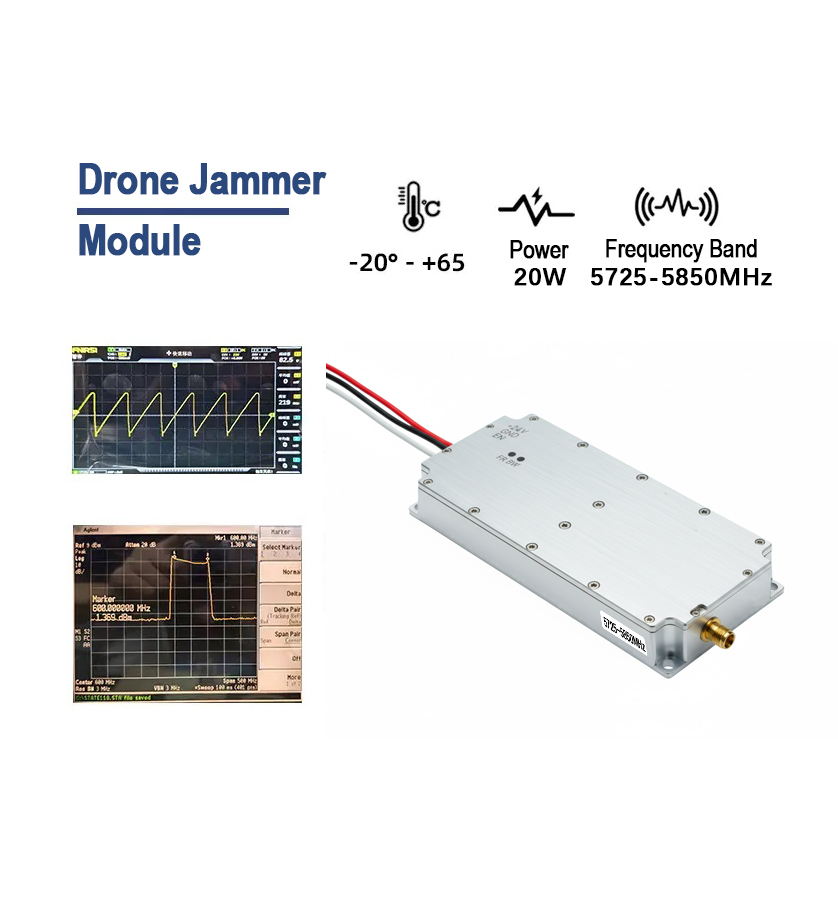

20W 5.8GHz Analog Jamming Module
Designed to target the prevalent 5.8GHz band, this 20W drone jamming module provides a reliable countermeasure against unauthorized UAVs. It delivers focused interference within the 5725-5850MHz spectrum, effectively disrupting drone video transmission (FPV) and control links to enforce a safe airspace perimeter.
Key Features & Integration Advantages
Targets 5.8GHz FPV Band: Specifically effective against the commonly used 5.8GHz frequency for drone video feeds and remote control systems.
Ready-to-Use Design: Incorporates a built-in high-speed sweeping source, offering a complete, self-contained jamming solution that reduces external component requirements.
Compact Form Factor: Features the same small footprint (115.5×46.5x21mm) and lightweight (0.21kg) design, ensuring easy integration into portable or fixed anti-drone platforms.
Simple Interface: Controlled via a straightforward TTL logic signal (+5V/Open for ON, Ground for OFF), enabling effortless activation within broader system architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Frequency | 5725 – 5850 MHz |
| RF Output Power | 20W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage | DC 24V – 29V |
| Max Current Draw | 2.5A |
| Power Efficiency | ≥ 40% |
| Control Signal | TTL Level: High (+5V/Open) = ON, Low (GND) = OFF |
| RF Port | SMA Female |
| Jamming Source | Internal High-Speed Sweep Generator |
| Dimensions | 115.5 x 46.5 x 21 mm |
| Unit Weight | 0.21 kg |
Application & Use Cases
This module serves as a core component for building Counter-Unmanned Aerial Vehicle (C-UAV) systems. Its primary applications include:
Integration into rapid-deployment kits for mobile response teams.
Fixed installation for continuous protection of sensitive sites.
A key element in custom-engineered drone mitigation solutions.
Immediate Operational Readiness
With its integrated source and minimal connection requirements (power and switch), this module ensures quick deployment. Simply connect it to a suitable 5.8GHz antenna system to establish an effective jamming zone, compelling intruding drones to land, return, or halt operation.
