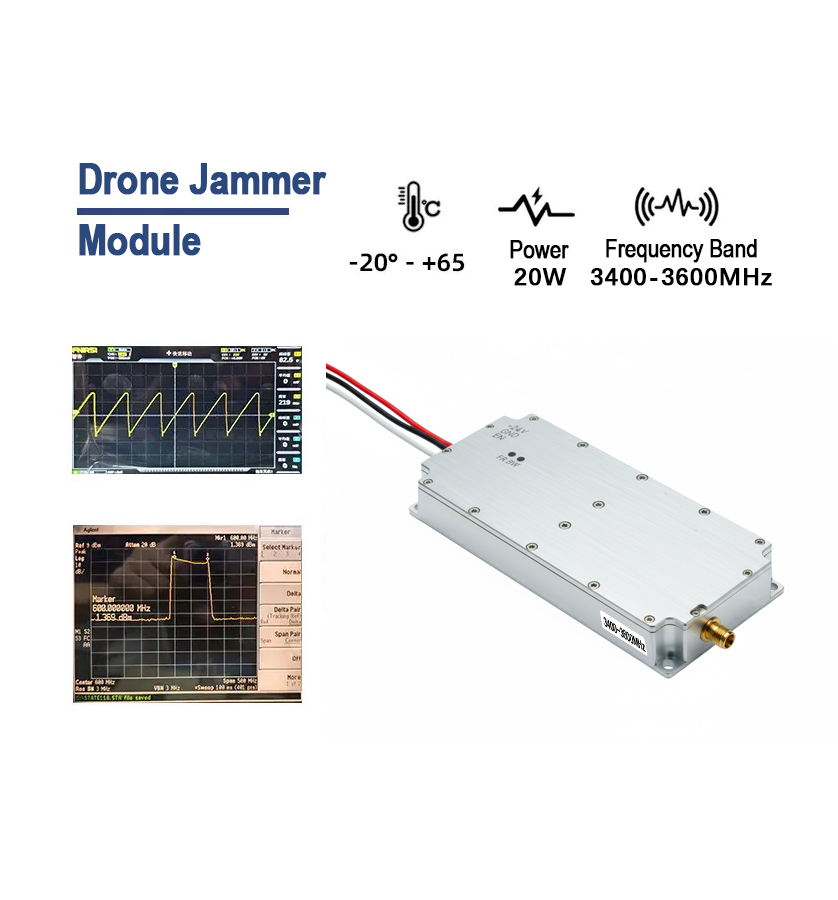

Home > Product > Drone jammer module > 20W > 20W 3400–3600MHz Drone Jamming Module | Compact 3.5GHz UAV Interference Unit
Product Overview The 20W 3400–3600MHz Drone Jamming Module is a compact, energy-efficient RF interference solution developed for mid-band UAV signal suppression.Operating in the 3.4–3.6GHz frequency range, it targets drone control links, data channels, and auxiliary communication signals commonly used in modern UAV platforms. With a built-in high-speed swe……
The 20W 3400–3600MHz Drone Jamming Module is a compact, energy-efficient RF interference solution developed for mid-band UAV signal suppression.
Operating in the 3.4–3.6GHz frequency range, it targets drone control links, data channels, and auxiliary communication signals commonly used in modern UAV platforms.
With a built-in high-speed sweep interference source, the module delivers responsive and stable jamming performance while maintaining a small footprint and low power consumption.
When integrated into an anti-drone system, this module can:
Disrupt UAV remote control communication
Block video and data transmission channels
Interfere with navigation signal stability
Force drones into return-to-home, hovering, emergency landing, or signal-loss modes
This makes it suitable for controlled airspace protection and localized drone denial tasks.
20W RF Output Power optimized for short- to mid-range suppression
Dedicated 3400–3600MHz Coverage for 3.5GHz UAV applications
High-Speed Frequency Sweep Source improves jamming effectiveness
Low Power Consumption ideal for portable and integrated systems
Compact and Lightweight Design for easy system integration
Stable Electrical Performance supports continuous operation
| Parameter | Specification |
|---|---|
| Operating Frequency | 3400–3600MHz |
| RF Output Power | 20W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage | DC 24V ~ 29V |
| Maximum Current | 2.5A |
| Efficiency | ≥ 40% |
| Control Mode | +5V or Floating: ON / Ground: OFF |
| RF Output Connector | SMA Female |
| Interference Source | Built-in High-Speed Sweep Source |
| Dimensions | 115.5 × 46.5 × 21 mm |
| Weight | 0.21 kg |
Portable and backpack drone jamming devices
Multi-band counter-UAV systems
Vehicle-mounted drone interference platforms
Fixed-site UAV signal suppression installations
Protection of campuses, events, and sensitive zones
The 20W 3.5GHz drone jamming module is designed for OEM manufacturers and system integrators.
It can be combined with other frequency-band modules to build scalable, multi-layer counter-UAV solutions. Custom frequency ranges and system configurations are available upon request.
