Home > Product > Drone Signal Jammer > Vehicle-FPV Jammers > S90B-2-10KM-DJ | Vehicle-Mounted Detect, Jam & Spoof All-in-One Drone Countermeasure System (10km Range)
S90B-2-10KM-DJ Vehicle-Mounted All-in-One Drone Countermeasure System: Complete Airspace Dominance The S90B-2-10KM-DJ represents a new generation of integrated, vehicle-mounted Counter-Unmanned Aerial System (C-UAS) technology. Engineered for superior performance in mobile defense scenarios, this system seamlessly combines powerful detection, precision jam……
The S90B-2-10KM-DJ represents a new generation of integrated, vehicle-mounted Counter-Unmanned Aerial System (C-UAS) technology. Engineered for superior performance in mobile defense scenarios, this system seamlessly combines powerful detection, precision jamming, and advanced GNSS spoofing (deception) capabilities into a single, robust platform. Designed to provide comprehensive protection for convoys, temporary perimeters, and critical mobile assets, it delivers up to 10 kilometers of comprehensive airspace awareness and neutralization reach.
Core Product Concept: Mobility Meets Maximum Performance

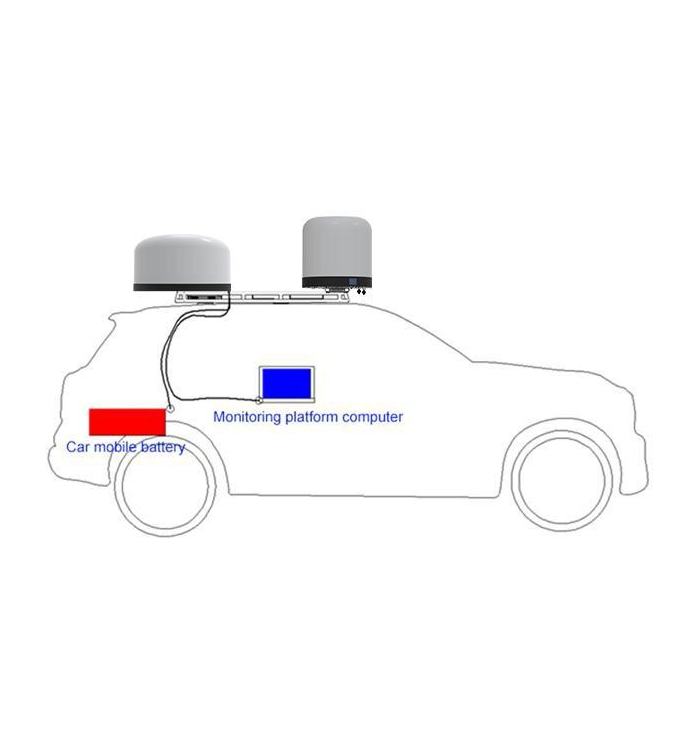

This isn’t just a jammer on a vehicle; it’s a fully integrated electronic warfare suite. Mounted on any suitable vehicle, the S90B-2-10KM-DJ creates a moving “bubble” of protection, capable of autonomously detecting, identifying, and neutralizing rogue drone threats from major manufacturers like DJI, Autel, and agile FPV drones across a vast spectrum.
All-in-One Integrated Platform: Houses detection, jamming, and spoofing modules in a unified, vehicle-mountable package.
Extended 10km Detection & Spoofing Range: Offers exceptional early warning and long-distance navigational deception capabilities.
Precision Directional Interference: Utilizes directional antennas for focused jamming (up to 3km) and spoofing, minimizing collateral impact on friendly communications.
Fully Automated C-UAS Workflow: From detection to neutralization, the system can operate automatically based on user-defined threat protocols.
Broad Spectrum Coverage: Detects signals from 70MHz to 6GHz, ensuring no drone communication band is overlooked.
Multi-GNSS Spoofing: Effectively deceives drones using GPS, BeiDou (BDS), GLONASS, and Galileo satellite navigation systems.
The S90B-2-10KM-DJ’s capabilities are defined by its powerful technical parameters across three key functions:
| Module | Key Parameter | Specification | Performance / Coverage |
|---|---|---|---|
| Detection | Frequency Range | 70 MHz – 6000 MHz | 0 – 10 km |
| Target Identification | DJI, Autel, FPV, and other common UAVs | – | |
| Functionality | Automatic detection, Direction Finding (DF), Audio/Visual Alarm | – | |
| Jamming | Frequency Range | 400 MHz – 6100 MHz | 0 – 3 km (Directional) |
| Anti-Jamming Channels | ≥ 15 independent jamming bands | Simultaneous multi-threat engagement | |
| Spoofing (Deception) | GNSS Systems Targeted | GPS, BDS (BeiDou), GLONASS, Galileo | 0 – 10 km (Customizable) |
| Spoofing Type | Directional GNSS Signal Deception | Induces controlled landing or return |
Detection & Alarm: The system continuously scans the airspace (70MHz-6GHz). Upon detecting a drone RF signature, it identifies the model, determines its direction, and triggers an audible/visual alarm.
Tracking & Decision: The operator is alerted. The system can be set to Manual, Semi-Automatic, or Full-Automatic defense modes.
Neutralization – Jamming or Spoofing:
Jamming Path: The system activates directional jamming beams toward the threat, disrupting its control and video links (400MHz-6100MHz), causing signal loss and forced landing/hover.
Spoofing Path: It broadcasts deceptive GNSS signals (GPS/BDS/GLONASS/Galileo), tricking the drone’s navigation into believing it is off-course or at a false location, leading to controlled diversion or landing.
Verification: The system continues monitoring to confirm threat neutralization.
The S90B-2-10KM-DJ is the optimal choice for mobile and high-value perimeter defense where proactive, layered counter-drone measures are required.
Military & Defense Convoys: Protecting moving columns of personnel and equipment.
Critical VIP Mobile Security: Safeguarding motorcades for dignitaries and executives.
Temporary Event Security: Deploying rapid, mobile airspace denial for major public events, summits, or sports gatherings.
Infrastructure Patrols: Securing the perimeter of large, dynamic sites like oil fields, power plants, or border areas.
Emergency Response & Law Enforcement: Establishing secure airspace during critical incidents.
This system eliminates the need for multiple, disparate units. It offers unmatched operational flexibility by combining long-range detection, mid-range precision jamming, and long-range strategic spoofing in one vehicle-mobile solution. Its automated features reduce operator workload and reaction time, ensuring a decisive advantage against evolving drone threats.
