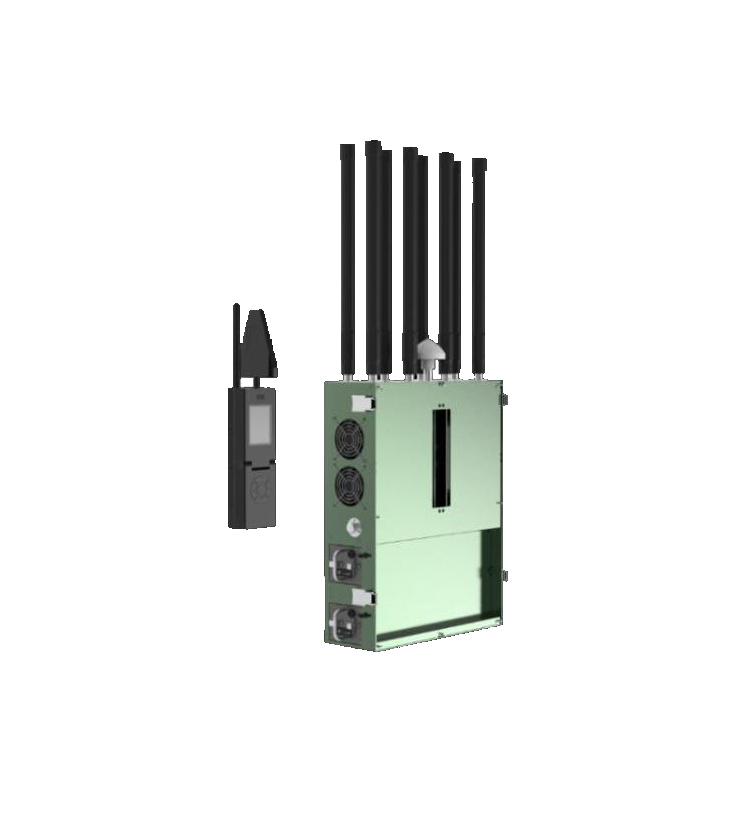

JB05-JDS SDR Digital Counter-UAV Backpack System | Detection, Direction Finding, Jamming & Spoofing

Product Overview The JB05-JDS SDR Digital Counter-UAV Backpack System is a next-generation detect–track–jam–spoof (4-in-1) portable counter-drone solution based on Software Defined Radio (SDR) architecture. It integrates wideband detection, direction finding, target positioning, navigation analysis, digital RF jamming, and multi-constellation GNSS spoofing……

Send Inquiry

Detection and Jammers Backpack

Functional characteristics

Product Overview

The JB05-JDS SDR Digital Counter-UAV Backpack System is a next-generation detect–track–jam–spoof (4-in-1) portable counter-drone solution based on Software Defined Radio (SDR) architecture.

It integrates wideband detection, direction finding, target positioning, navigation analysis, digital RF jamming, and multi-constellation GNSS spoofing into a single backpack platform. Designed for advanced counter-UAV missions, JB05-JDS provides precise control over interference waveforms and frequency bands, enabling effective response to modern, intelligent, and frequency-agile drones.

Key Features

SDR Digital Jamming Architecture
Detection + Direction Finding + Positioning + Navigation
GNSS Spoofing (GPS / BDS / GLONASS / GALILEO)
Customizable Digital Jamming Bands
Automatic Frequency Locking
Signal Collection & Analysis
≥12 Simultaneous Channels
Backpack Portable Design for Rapid Deployment
4.3-inch HD LCD Display
Removable Battery System

Core Functions

Function	Description
UAV Detection	Wideband RF signal detection and identification
Direction Finding	Determines UAV signal direction
Target Positioning	Estimates UAV location
Navigation Analysis	GNSS signal monitoring
Digital RF Jamming	SDR-based adaptive interference
GNSS Spoofing	Navigation deception and control
Signal Collection	RF data capture and analysis
Auto Frequency Lock	Automatic tracking of target frequencies

Technical Specifications

General Specifications

Parameter	Specification
Model	JB05-JDS
System Type	Detection + Direction Finding + Positioning + Jamming + Spoofing
Architecture	SDR (Software Defined Radio)
Form Factor	Backpack (Portable)
Display	4.3-inch HD LCD
Battery	4 removable batteries

Frequency Coverage

Function	Frequency Range
Detection	300–6200 MHz
Jamming	700–6000 MHz
Spoofing	GPS / BDS / GLONASS / GALILEO

Operational Ranges

Parameter	Typical Range
Detection Distance	0–3000 m
Jamming Distance	0–2000 m
Spoofing Distance	0–1000 m (customizable)

Channel Capacity

Capability	Specification
Digital Jamming Channels	≥12
Frequency Customization	Supported
Multi-Function Concurrency	Detection + Jamming + Spoofing

Application Scenarios

Product Advantages

Advanced SDR Technology: Flexible, adaptive, and upgradeable
High Integration: Detection, positioning, jamming, and spoofing in one platform
Multi-Constellation GNSS Spoofing: Effective navigation denial and deception
High Channel Capacity: ≥12 channels for complex threat environments
Customizable Interference: Mission-specific frequency configuration
Mobile Deployment: Backpack design supports rapid response

Conclusion

The JB05-JDS SDR Digital Counter-UAV Backpack System represents a high-end portable counter-drone solution for modern UAV threats. With its SDR architecture, digital jamming, GNSS spoofing, and wideband detection capabilities, it is ideal for operations requiring precision, adaptability, and rapid deployment.
