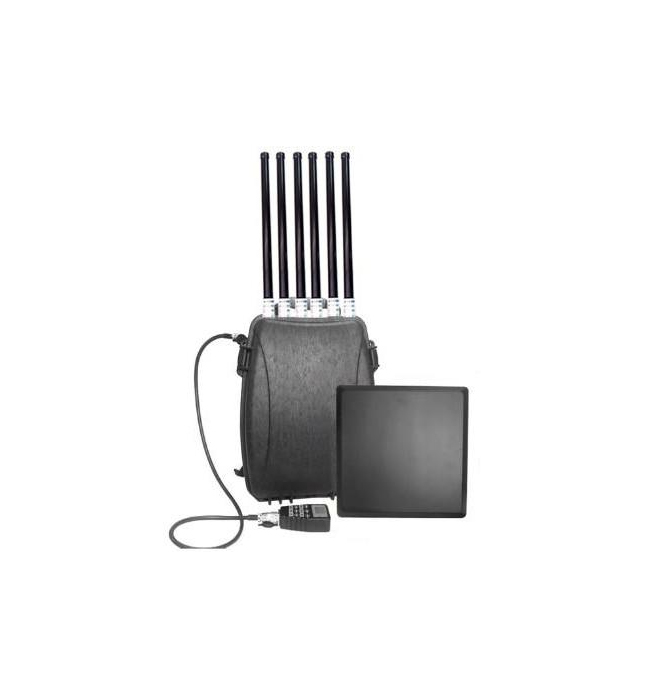

JB02-8A Backpack Drone Jammer System | 8-Channel Portable Anti-Drone Kit

JB02-8A Backpack-Mounted Anti-Drone Jamming System Product Overview The JB02-8A is a high-capacity, portable backpack jamming system engineered for extended field operations against unauthorized drones. Combining broad-spectrum RF interference with exceptional mobility, it is designed for security teams requiring sustained, long-range counter-drone capabil……

Send Inquiry

Backpack Drone Jammer

Functional characteristics

JB02-8A Backpack-Mounted Anti-Drone Jamming System

Product Overview

The JB02-8A is a high-capacity, portable backpack jamming system engineered for extended field operations against unauthorized drones. Combining broad-spectrum RF interference with exceptional mobility, it is designed for security teams requiring sustained, long-range counter-drone capabilities. The system integrates a powerful internal battery, flexible antenna options, and precise channel control into a single, ergonomic backpack unit, making it ideal for patrols and securing large perimeters.

Key Features & Advantages

Comprehensive 8-Band Jamming: Effective across 8 critical frequency bands (0.43, 0.7, 0.8, 0.9, 1.2, 1.5, 2.4, 5.8 GHz), targeting control, video, and GPS/GNSS signals of diverse drones.
Extended Operational Endurance: Powered by a high-capacity built-in 27V/30A battery, enabling prolonged mission times without external power.
Tactical Control & Flexibility: Features a handheld controller for on-the-fly, individual activation/deactivation of any jamming channel, allowing for targeted and adaptive response.
Dual Antenna Configuration: Supplied with both omnidirectional and directional antennas. The omnidirectional antenna provides 360° coverage, while the directional antenna allows for focused, long-range jamming.
Optimized for Mobility: The backpack form factor ensures the operator’s hands remain free for other tasks, facilitating rapid movement and deployment over varied terrain.

Detailed Product Specifications

Core System Parameters

Parameter	Specification	Notes / Description
Model	JB02-8A	Backpack-Mounted Jamming System
Jamming Frequency Bands	433MHz, 700MHz, 800MHz, 900MHz, 1.2GHz, 1.5GHz (GPS), 2.4GHz, 5.8GHz	Covers RC, Telemetry, FPV Video, Wi-Fi, and Satellite Navigation.
Typical Effective Range	0 – 1,500 meters	Line-of-sight and environment dependent.
Number of Jamming Channels	8 Independent Channels
Power System	Built-in Rechargeable Battery	27V / 30A high-capacity battery pack.
Control Interface	Handheld Remote Controller	Enables selective control of individual jamming bands.
Antenna Configuration	Omnidirectional Antenna + Directional Antenna	Standard kit includes both for versatile use.
Form Factor	Tactical Backpack	Designed for comfortable wear and operator mobility.

Target Frequency Breakdown & Function

Target Band	Primary Jamming Function
433 MHz, 700 MHz, 800 MHz, 900 MHz	Disrupts lower-frequency remote control (RC), long-range data, and telemetry links.
1.2 GHz	Targets specific FPV (First-Person View) video and control transmissions.
1.5 GHz	Critical: Jams GPS, GLONASS, BeiDou, and other GNSS satellite signals, disrupting drone navigation and positioning.
2.4 GHz	Disrupts the common ISM band used for Wi-Fi, Bluetooth, and numerous drone control/video systems.
5.8 GHz	Targets the primary band for high-speed FPV video transmission and control of many commercial drones.

Conclusion

The JB02-8A Backpack Jamming System is a force-multiplier for mobile security units tasked with dynamic airspace defense. Its unparalleled combination of extended battery life, full-spectrum jamming, and operational flexibility—coupled with the mobility of a backpack—makes it the definitive choice for prolonged missions, large-area patrols, and protecting high-value mobile assets. The inclusion of both antenna types and granular channel control allows operators to tailor their response precisely to the evolving threat, ensuring effective and efficient counter-drone operations.
